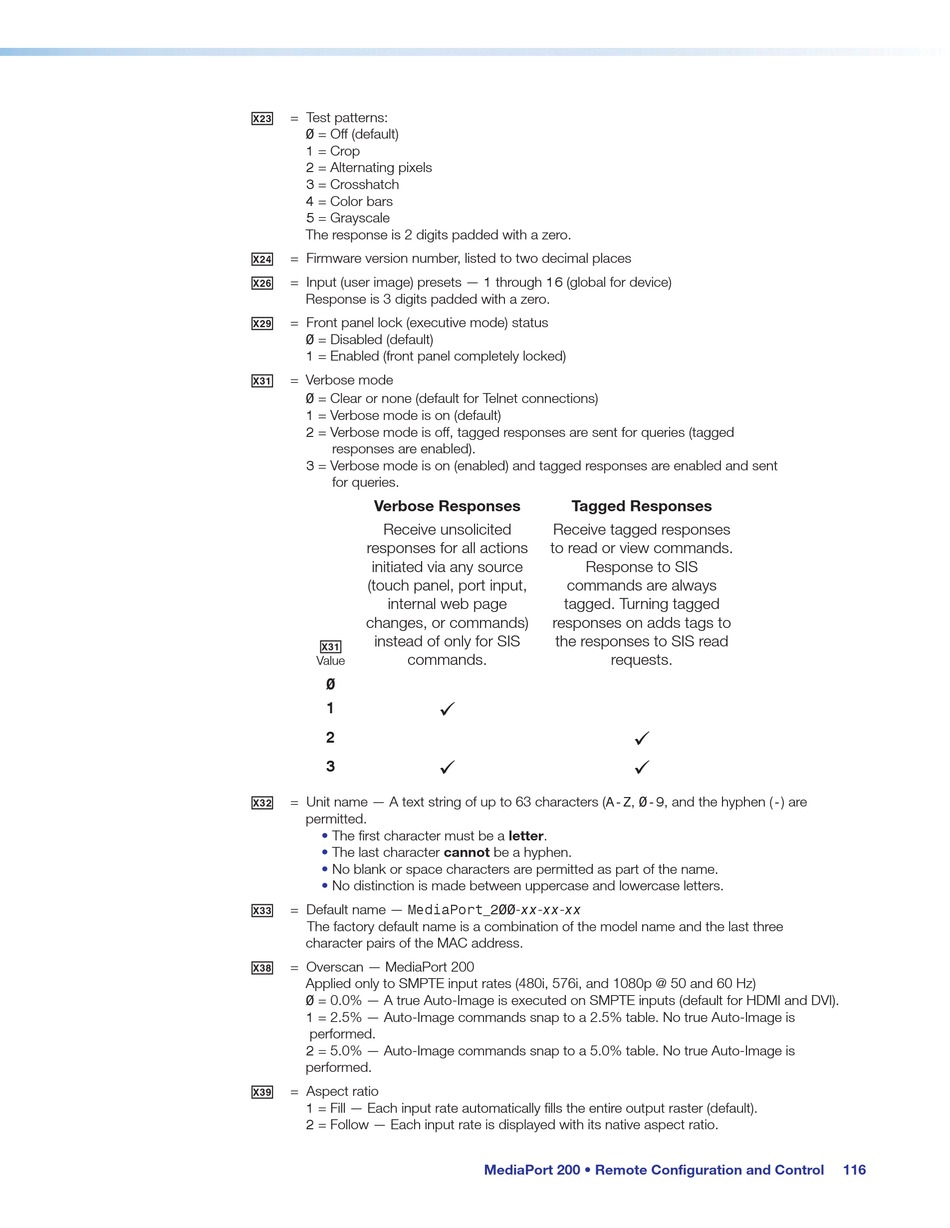

X2#
= Test patterns:
0 = Off (default)
1 = Crop
2 = Alternating pixels
3 = Crosshatch
4 = Color bars
5 = Grayscale
The response is 2 digits padded with a zero.
X2$
= Firmware version number, listed to two decimal places
X2^
= Input (user image) presets — 1 through 16 (global for device)
Response is 3 digits padded with a zero.
X2(
= Front panel lock (executive mode) status
0 = Disabled (default)
1 = Enabled (front panel completely locked)
X3!
= Verbose mode
0 = Clear or none (default for Telnet connections)
1 = Verbose mode is on (default)
2 = Verbose mode is off, tagged responses are sent for queries (tagged
responses are enabled).
3 = Verbose mode is on (enabled) and tagged responses are enabled and sent
for queries.
Verbose Responses
Receive unsolicited
responses for all actions
initiated via any source
(touch panel, port input,
internal web page
changes, or commands)
instead of only for SIS
X3!
commands.
Value
0
1
2
3
X3@
= Unit name — A text string of up to 63 characters (A-Z, 0-9, and the hyphen (-) are
permitted.
• The first character must be a letter.
The last character cannot be a hyphen.
•
• No blank or space characters are permitted as part of the name.
• No distinction is made between uppercase and lowercase letters.
X3#
= Default name — MediaPort_200-xx-xx-xx
The factory default name is a combination of the model name and the last three
character pairs of the MAC address.
X3*
= Overscan — MediaPort 200
Applied only to SMPTE input rates (480i, 576i, and 1080p @ 50 and 60 Hz)
0 = 0.0% — A true Auto-Image is executed on SMPTE inputs (default for HDMI and DVI).
1 = 2.5% — Auto-Image commands snap to a 2.5% table. No true Auto-Image is
performed.
2 = 5.0% — Auto-Image commands snap to a 5.0% table. No true Auto-Image is
performed.
X3(
= Aspect ratio
1 = Fill — Each input rate automatically fills the entire output raster (default).
2 = Follow — Each input rate is displayed with its native aspect ratio.
Tagged Responses
Receive tagged responses
to read or view commands.
Response to SIS
commands are always
tagged. Turning tagged
responses on adds tags to
the responses to SIS read
requests.


MediaPort 200 • Remote Configuration and Control


116
