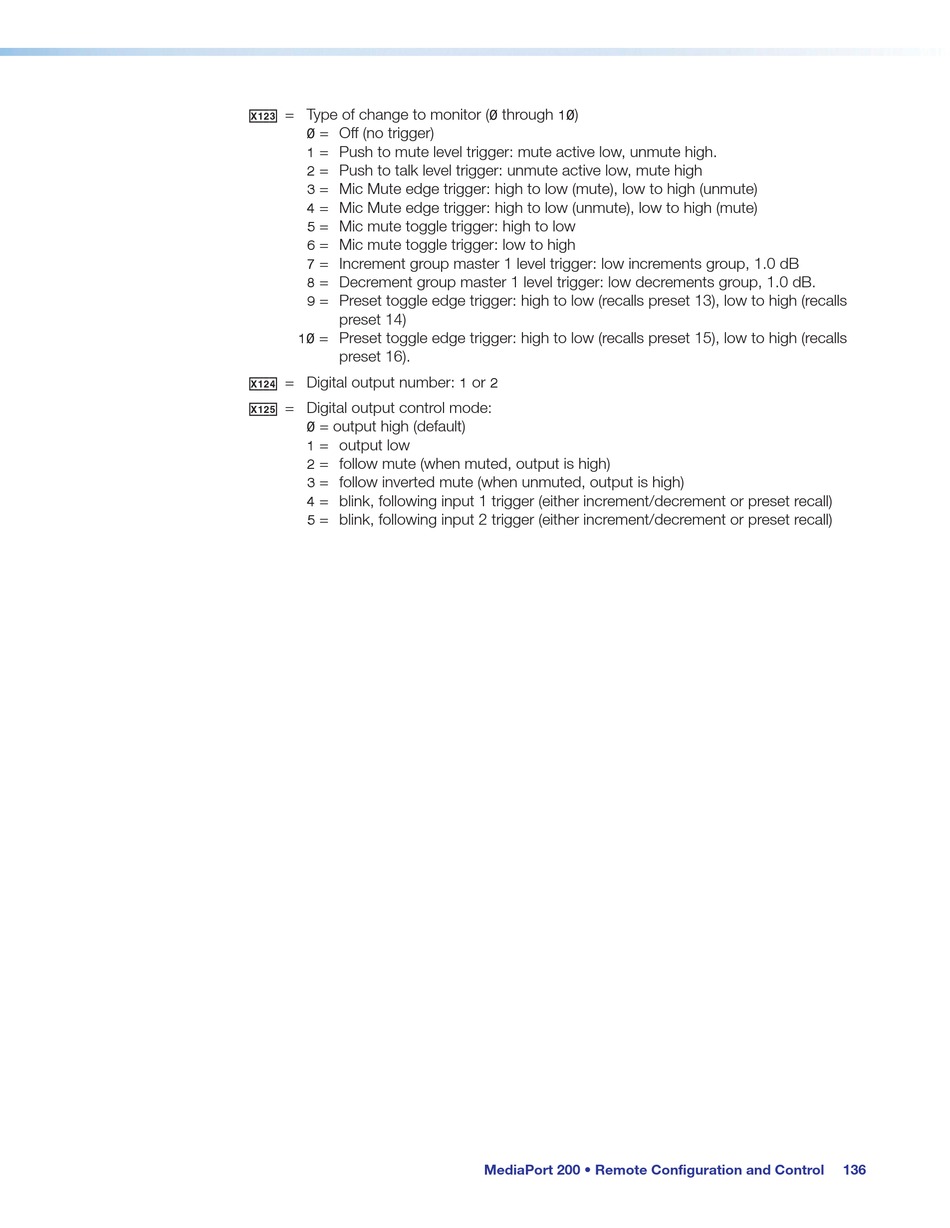

X12# = Type of change to monitor (
= Off (no trigger)
0
= Push to mute level trigger: mute active low, unmute high.
1
= Push to talk level trigger: unmute active low, mute high
2
= Mic Mute edge trigger: high to low (mute), low to high (unmute)
3
= Mic Mute edge trigger: high to low (unmute), low to high (mute)
4
= Mic mute toggle trigger: high to low
5
= Mic mute toggle trigger: low to high
6
= Increment group master 1 level trigger: low increments group, 1.0 dB
7
= Decrement group master 1 level trigger: low decrements group, 1.0 dB.
8
= Preset toggle edge trigger: high to low (recalls preset 13), low to high (recalls
9
preset 14)
= Preset toggle edge trigger: high to low (recalls preset 15), low to high (recalls
10
preset 16).
X12$ = Digital output number:
X12% = Digital output control mode:
= output high (default)
0
= output low
1
= follow mute (when muted, output is high)
2
= follow inverted mute (when unmuted, output is high)
3
= blink, following input 1 trigger (either increment/decrement or preset recall)
4
= blink, following input 2 trigger (either increment/decrement or preset recall)
5
through )
0 10
or
1 2
MediaPort 200 • Remote Configuration and Control 136
