Extron electronics MediaPort 200 User Manual page 31

USB Mini B
HDMI USB
SIGNAL IN HOST
HDCP IN VIDEO SEND
CONFIG LOOP OUT AUDIO SEND
LOOP HDCP AUDIO RETURN

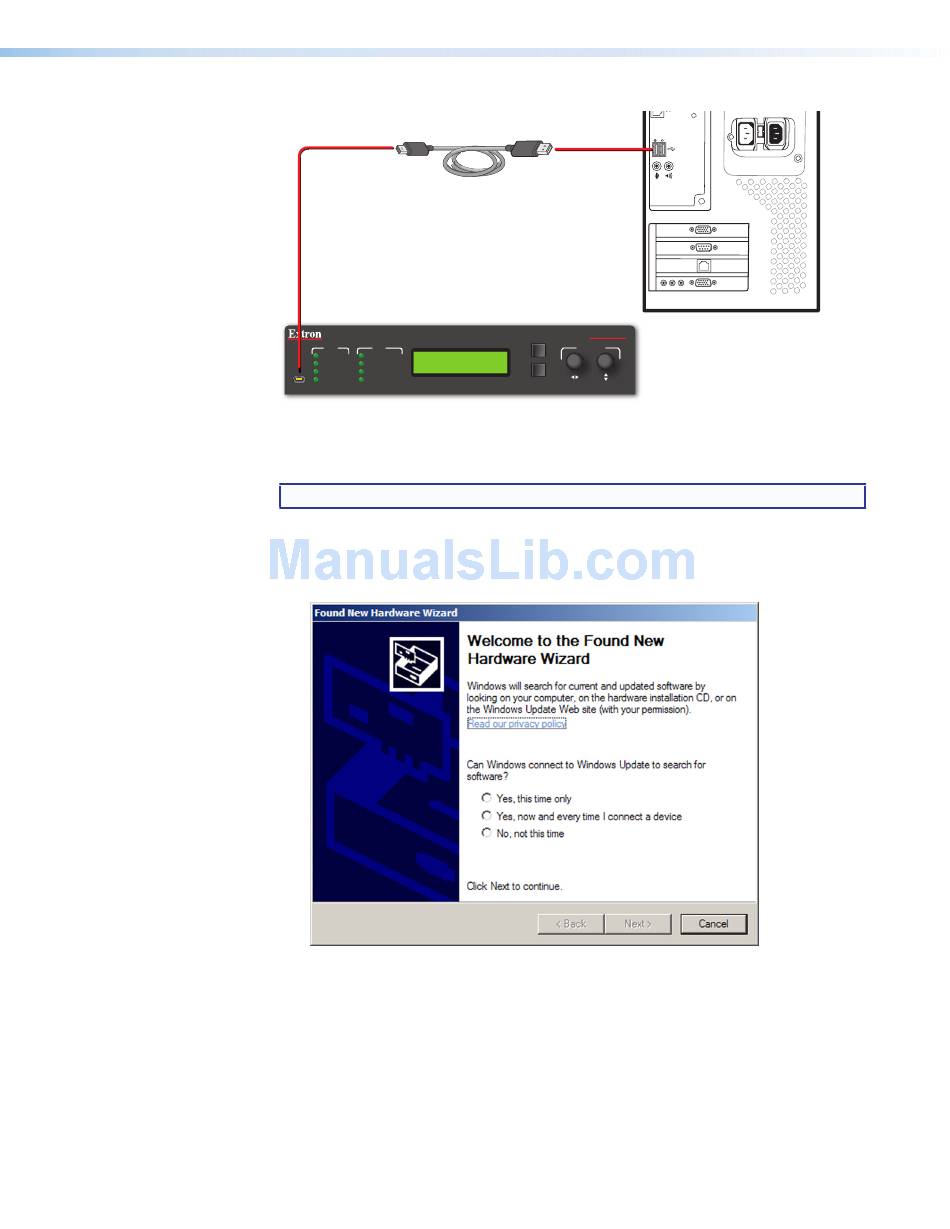

Figure 17. Connecting to the Front Panel USB Config Port
2. If this is the first time the MediaPort has been connected to this particular USB port on
the computer, one of the following screens may open.
NOTE: Installing the PCS software also installs the required Extron USB driver.
Windows XP and earlier: If the following screen is displayed, specify whether the
•
computer should connect to
driver that it needs to communicate with the MediaPort via the USB port (this is not
necessary if the USB driver already exists on the computer).
Figure 18. Found New Hardware Wizard Opening Screen
Select one of the following radio buttons:
Select the
• Yes, this time only
to Windows Update only this one time.
Select
• Yes, now and every time I connect a device
should automatically connect to
connected to this USB port.
USB A
USB
Ports
USB Cable
MediaPort 200 Front Panel MediaPort 200 Front Panel
MedioPort 200
MENU
ADJUS S T ADJUST US
NEXT
in order to search the web for the
Windows Update
radio button if the computer should connect
Windows Update
USB 1
Computer
if the computer
every time the MediaPort is
MediaPort 200 • Installation 24
