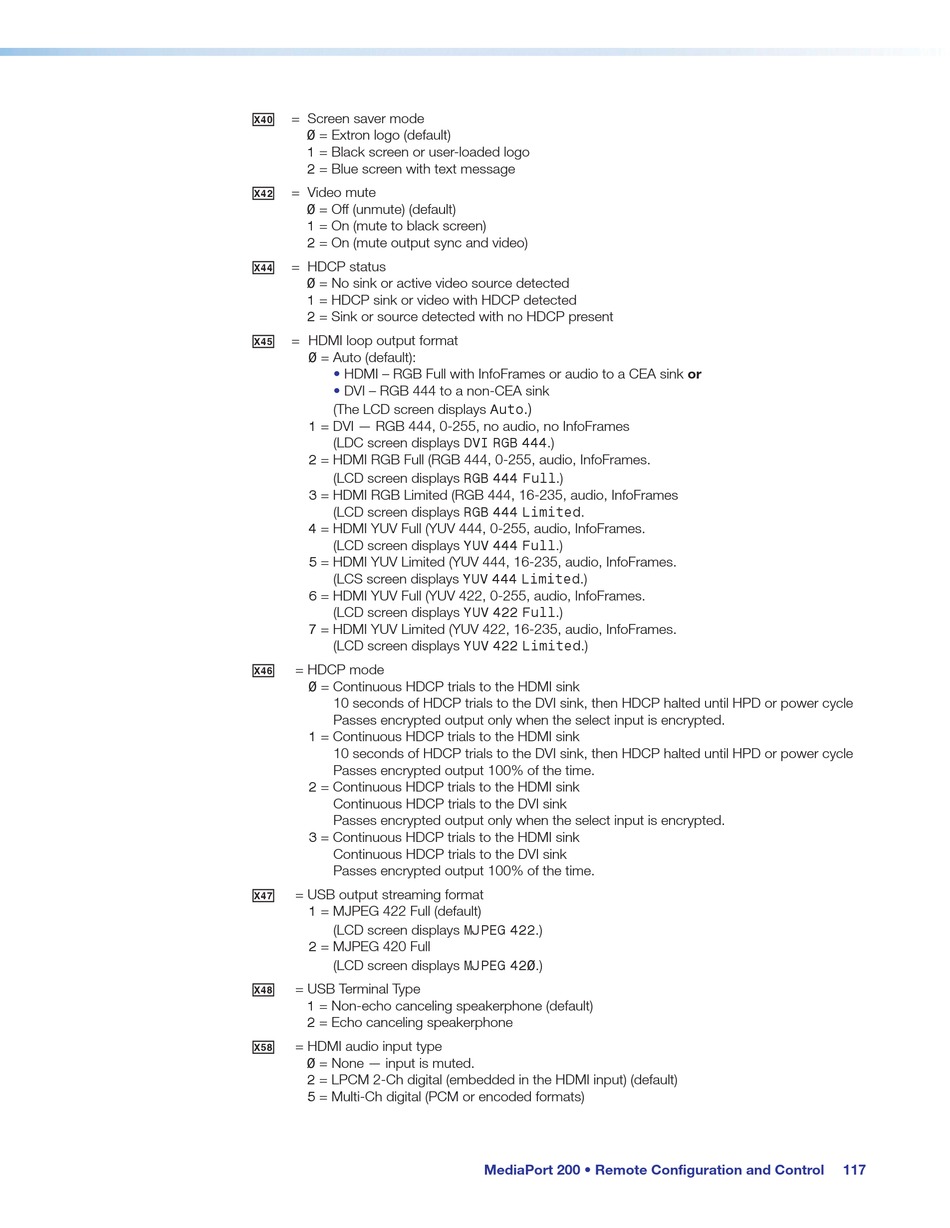

X4)
= Screen saver mode
0 = Extron logo (default)
1 = Black screen or user-loaded logo
2 = Blue screen with text message
X4@
= Video mute
0 = Off (unmute) (default)
1 = On (mute to black screen)
2 = On (mute output sync and video)
X4$ = HDCP status
0 = No sink or active video source detected
1 = HDCP sink or video with HDCP detected
2 = Sink or source detected with no HDCP present
X4%
= HDMI loop output format
0 = Auto (default):
• HDMI – RGB Full with InfoFrames or audio to a CEA sink or
• DVI – RGB 444 to a non-CEA sink
(The LCD screen displays Auto
1 = DVI — RGB 444, 0-255, no audio, no InfoFrames
(LDC screen displays DVI RGB 444.)
2 = HDMI RGB Full (RGB 444, 0-255, audio, InfoFrames.
(LCD screen displays RGB 444 Full.)
3 = HDMI RGB Limited (RGB 444, 16-235, audio, InfoFrames
(LCD screen displays RGB 444 Limited.
4 = HDMI YUV Full (YUV 444, 0-255, audio, InfoFrames.
(LCD screen displays YUV 444 Full.)
5 = HDMI YUV Limited (YUV 444, 16-235, audio, InfoFrames.
(LCS screen displays YUV 444 Limited.)
6 = HDMI YUV Full (YUV 422, 0-255, audio, InfoFrames.
(LCD screen displays YUV 422 Full.)
7 = HDMI YUV Limited (YUV 422, 16-235, audio, InfoFrames.
(LCD screen displays YUV 422 Limited.)
X4^
= HDCP mode
0 = Continuous HDCP trials to the HDMI sink
10 seconds of HDCP trials to the DVI sink, then HDCP halted until HPD or power cycle
Passes encrypted output only when the select input is encrypted.
1 = Continuous HDCP trials to the HDMI sink
10 seconds of HDCP trials to the DVI sink, then HDCP halted until HPD or power cycle
Passes encrypted output 100% of the time.
2 = Continuous HDCP trials to the HDMI sink
Continuous HDCP trials to the DVI sink
Passes encrypted output only when the select input is encrypted.
3 = Continuous HDCP trials to the HDMI sink
Continuous HDCP trials to the DVI sink
Passes encrypted output 100% of the time.
X4&
= USB output streaming format
1 = MJPEG 422 Full (default)
(LCD screen displays MJPEG 422.)
2 = MJPEG 420 Full
(LCD screen displays MJPEG 420.)
X4*
= USB Terminal Type
1 = Non-echo canceling speakerphone (default)
2 = Echo canceling speakerphone
X5*
= HDMI audio input type
0 = None — input is muted.
2 = LPCM 2-Ch digital (embedded in the HDMI input) (default)
5 = Multi-Ch digital (PCM or encoded formats)
.)
