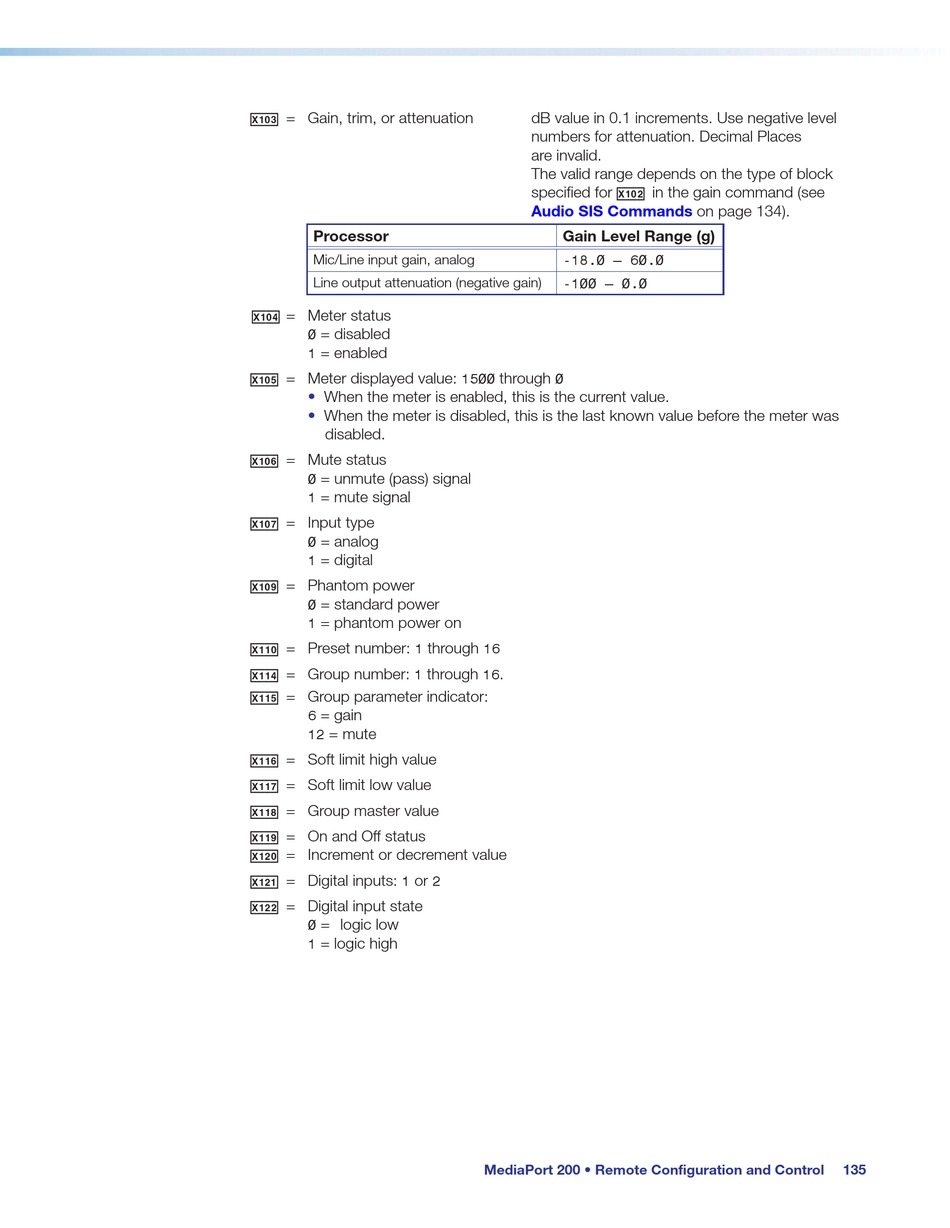

X10# = Gain, trim, or attenuation
Processor
Mic/Line input gain, analog
Line output attenuation (negative gain)
X10$ = Meter status
= disabled
0
= enabled
1
X10% = Meter displayed value:
• When the meter is enabled, this is the current value.
• When the meter is disabled, this is the last known value before the meter was
disabled.
X10^ = Mute status
= unmute (pass) signal
0
= mute signal
1
X10& = Input type
= analog
0
= digital
1
X10( = Phantom power
= standard power
0
= phantom power on
1
X11) = Preset number: through
1
X11$ = Group number: through
1
X11% = Group parameter indicator:
= gain
6
= mute
12
X11^ = Soft limit high value
X11& = Soft limit low value
X11* = Group master value
X11( = On and Off status
X12) = Increment or decrement value
X12! = Digital inputs: or
1
X12@ = Digital input state
= logic low
0
= logic high
1
dB value in 0.1 increments. Use negative level
numbers for attenuation. Decimal Places
are invalid.
The valid range depends on the type of block
specified for X10@ in the gain command (see
Audio SIS Commands
Gain Level Range (g)
-18.0 – 60.0
-100 – 0.0
through
1500 0
16
.
16
2
MediaPort 200 • Remote Configuration and Control
on page 134).
