MT5600ZDX Owner's Manual

Carrier Detect. This LED lights when a valid carrier signal from

another modem is detected.

K56flex. This LED is lit when connected to an ISP-type K56flex

server. The actual connection speed is contingent upon server

capabilities and line conditions.

V.34. This LED is lit when the modem is connected in V.34 mode.

V.32 bis . This LED is lit when the modem is connected in V.32 bis

mode. Note at speeds lower than a V.32 bis connection, the

MT5600ZDX speed LEDs remain unlit.

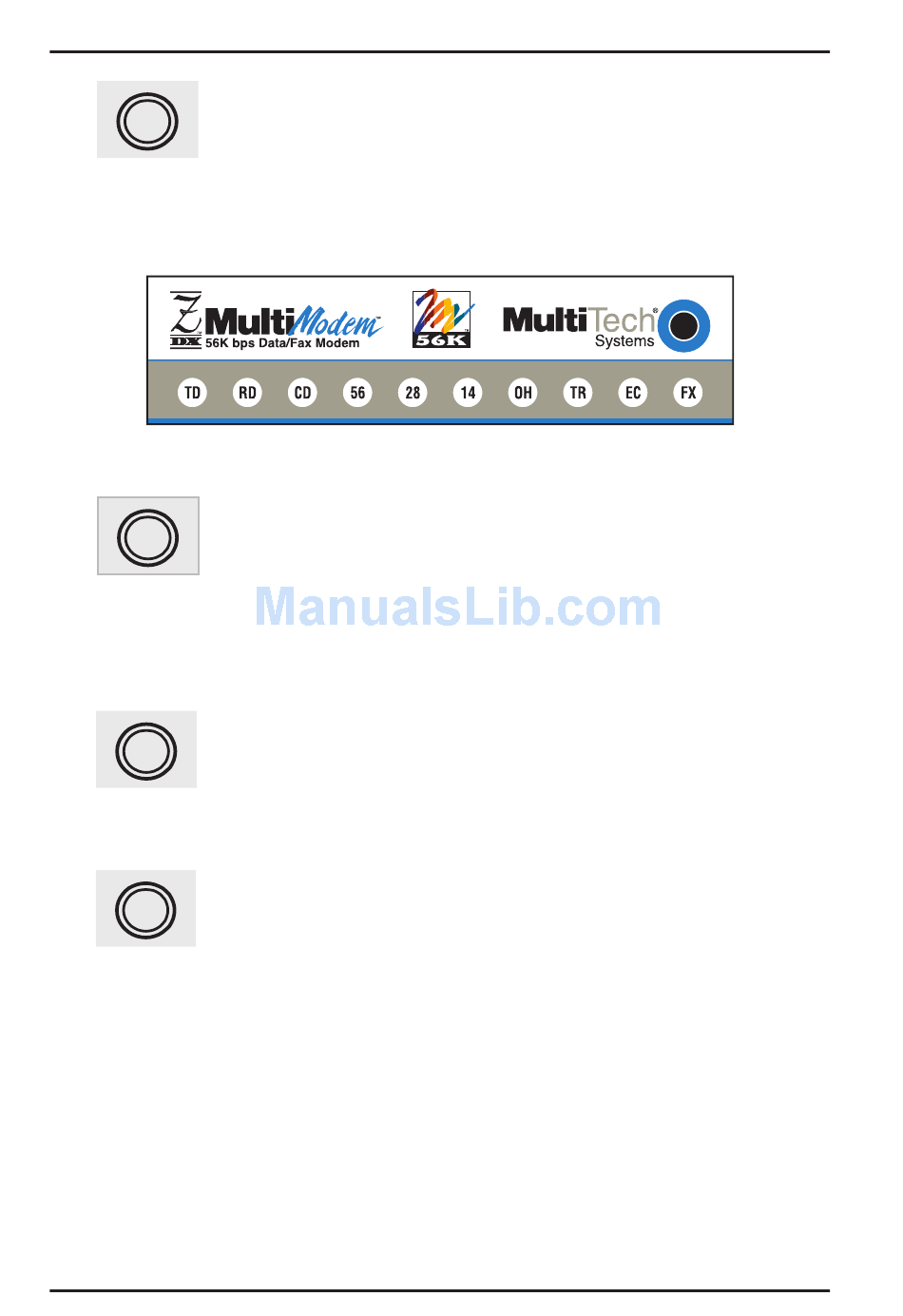

Figure 2-4. MT5600ZDX Front Panel
