Chapter 2 - Installation; Installation; Computer; Serial Cable - Multitech MULTIMODEM MT5600ZDX Owner's Manual

Hide thumbs Also See for MULTIMODEM MT5600ZDX:

Table of Contents

MT5600ZDX Owner's Manual

In addition to the contents of the MT5600ZDX package, you will need

the following equipment.

The MT5600ZDX can be connected to any computer with an RS-232

serial port. Note : your computer system should have a processor

speed of at least 75 MHz in order to take full advantage of the

telephony features of this product.

You must provide a serial cable to connect the MT5600ZDX to your

computer. Serial cables are available at computer stores and many

office supply stores. The cable must have a DB-25P connector at the

modem end. For IBM and compatible computers, the other end may

have a DB-25P connector or a DB-9S connector, depending on your

particular computer and whether you are using the COM1 or the

COM2 serial port. The FCC requires cables to be shielded.

Chapter 2 - Installation

DB-25

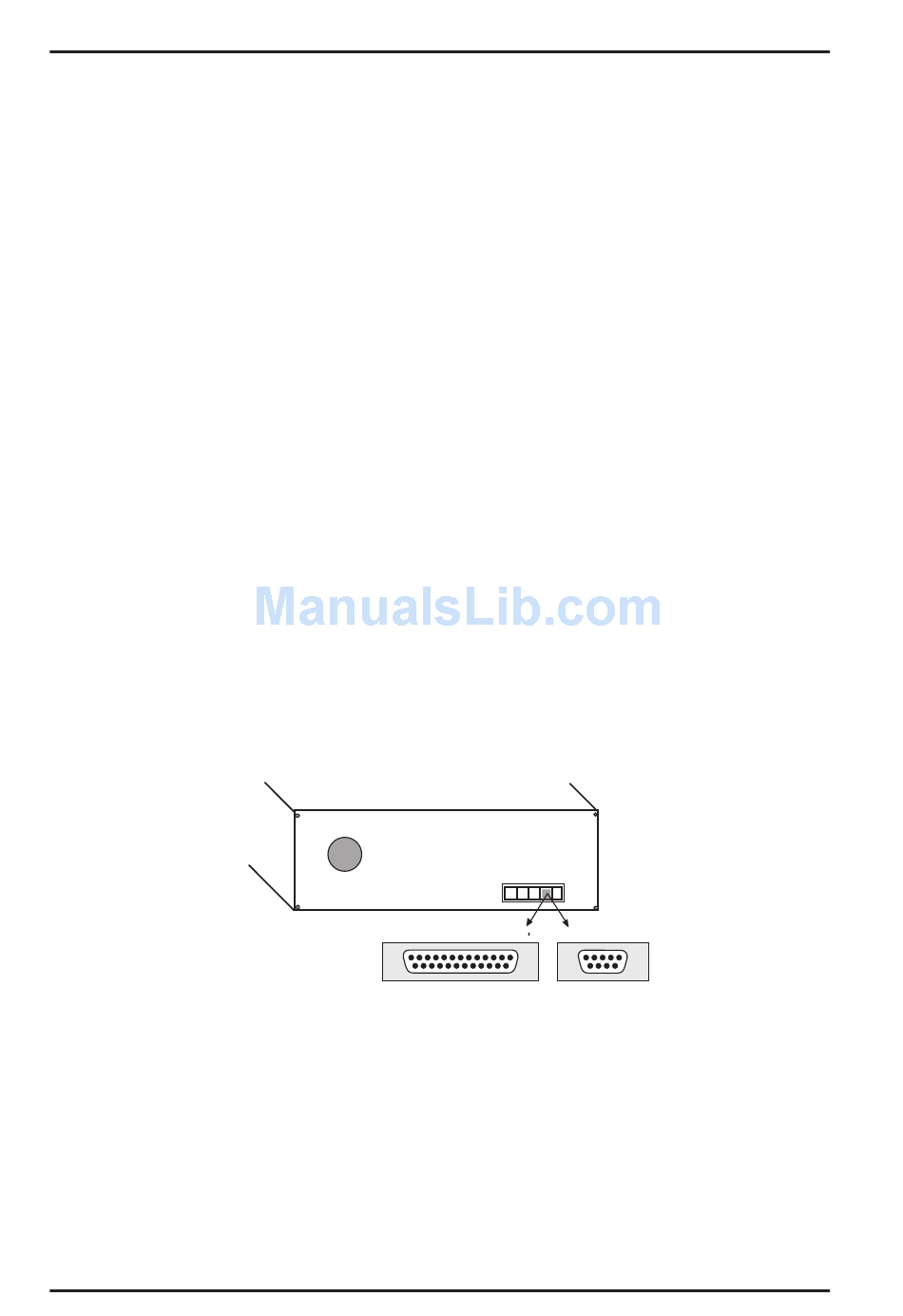

Figure 2-1. Serial Connectors

DB-9
