Remote EPO
terminal

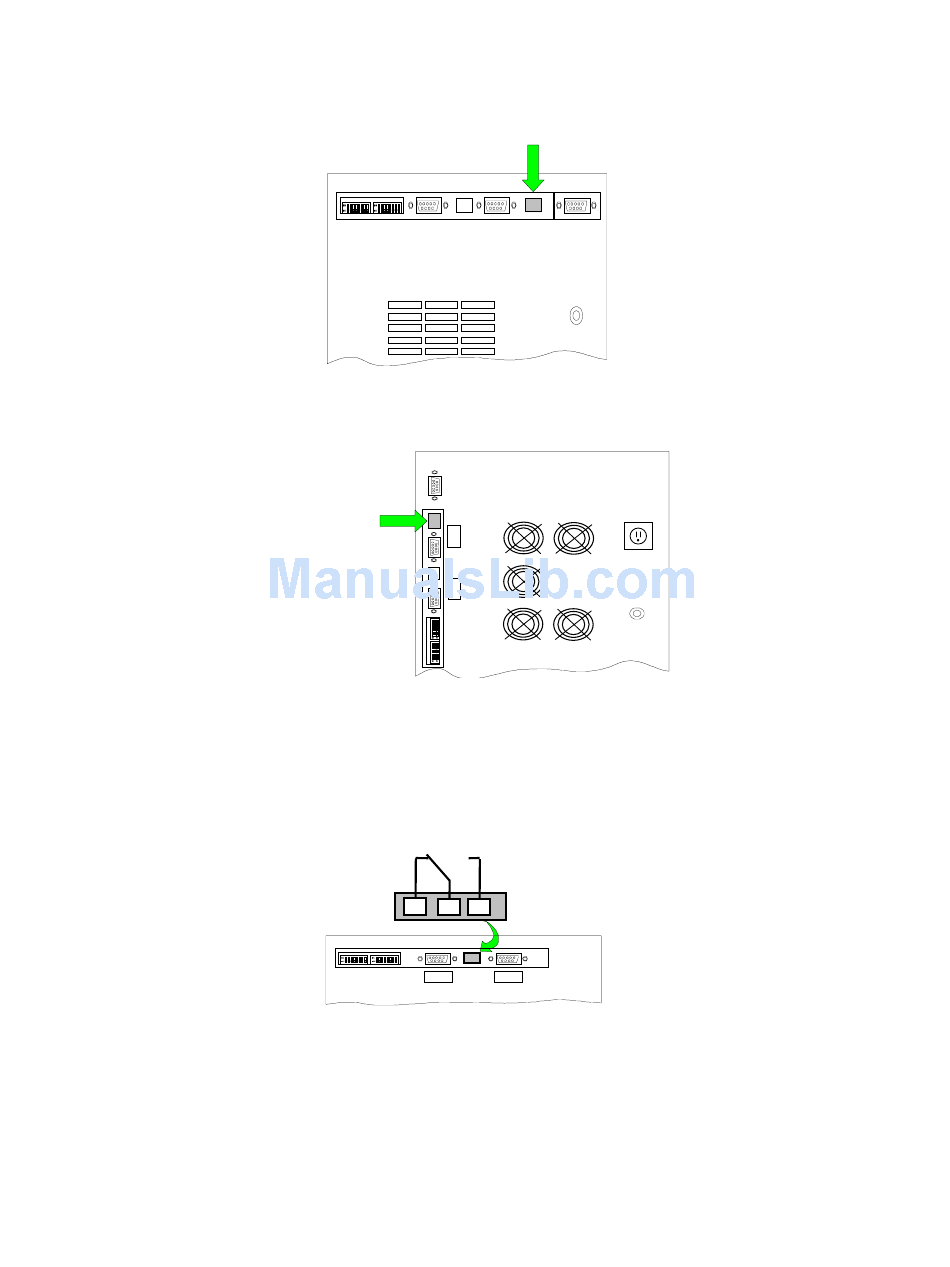

Figure GG: Remote EPO location 4-12kVA
Remote EPO
terminal
Figure HH: Remote EPO location 14-18kVA
4.1.5

SUMMARY ALARM

Synthesis™ is also equipped with a remote indication that provides a summary of the
alarm status.
1 2 3
Figure II: SUMMARY ALARM terminals 4-12kVA
The summary alarm is simply a form C relay that changes state when there is a problem
with the UPS. The rating of these contacts is 1A - 220 VAC/VDC.
terminal 1 connected to terminal 2 = UPS OK
terminal 2 connected to terminal 3 = UPS IN ALARM
