1.7.2 BATTERY CABINET CONNECTIONS

Connect the battery cables to UPS using Black and Red cable provided in flexible conduit.
See Figure T. Attach one end of the flexible conduit to the knockout on the UPS under the
battery connection terminals. The black cable connects to Battery Negative (-) and Red
Cable connects to Battery Positive (+). The green and yellow wire connects to the ground
stud.
_
L1 L2 L7 L8 L3 N L4 L5 L6 +
EXTERNAL
BATTERIES

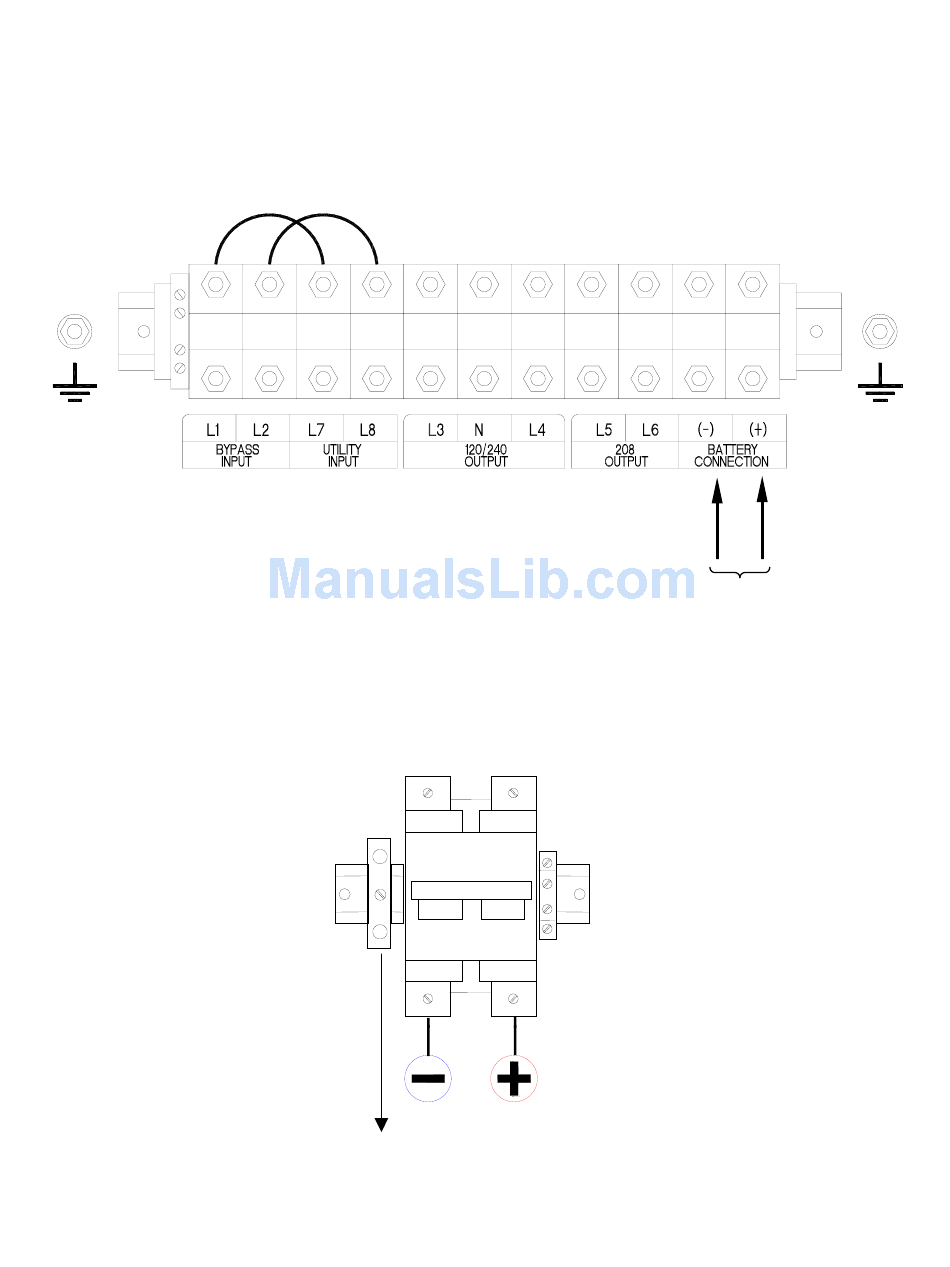

Figure T: Battery Input Connection Detail (Back of Electronics Module)
Next, attach the other end of the conduit to the battery cabinet and connect the black
cable to Battery Negative (-) and the red cable connects to Battery Positive (+). The green
and yellow wire connects to the ground terminal. See Figure U.
GND NEG POS
Figure U: Battery Cabinet Connection Detail
