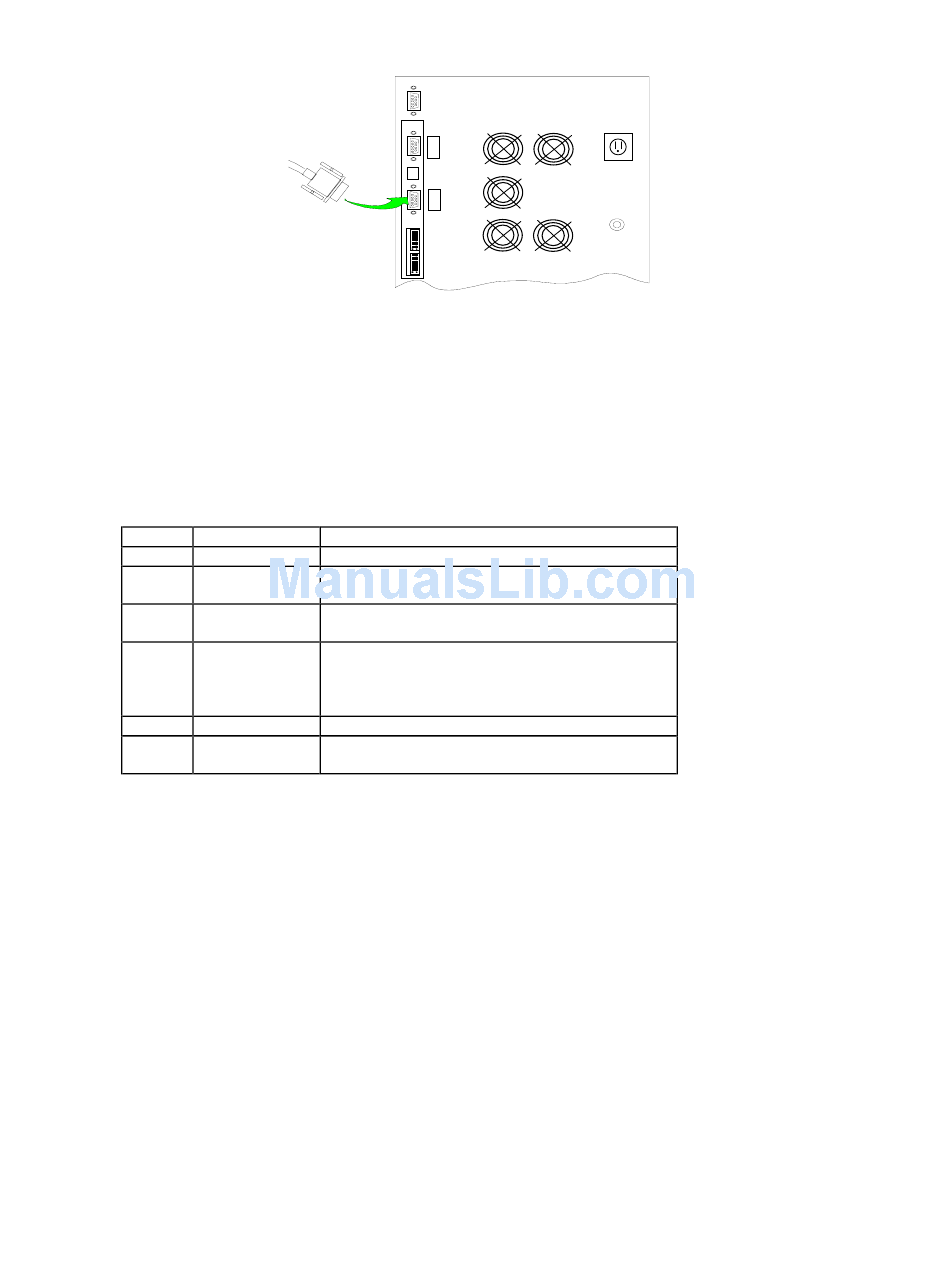

Figure EE: Installation of computer interface 14-18kVA
The contact port is a "D"-type male 9 pin connector which, when connected to one of more
advanced computing systems such as AS/400
react to a power outage and take action such as saving data and executing an orderly
system shutdown.
Table F: Description of communication signals
N° PIN DESCRIPTION
1 - 4 Not Used
5 Common
6 "ABNORMAL"
operation
7 Low battery
8 System normal
9 Battery
supplying load
TM
FUNCTION
Not used
Reference ground for all the status contacts (but
not the REPO contact.
Operation condition NOT in accordance with
the assigned priority.
The battery is nearly exhausted and in a short
time the UPS will switch OFF and the load will
be transferred automatically to the direct line (if
present).
The UPS is normally working
The load is supplied by the battery
45
, NOVELL, etc., allows the computer to
