Summary of Contents for Chloride ACTIVE A0K7XAU

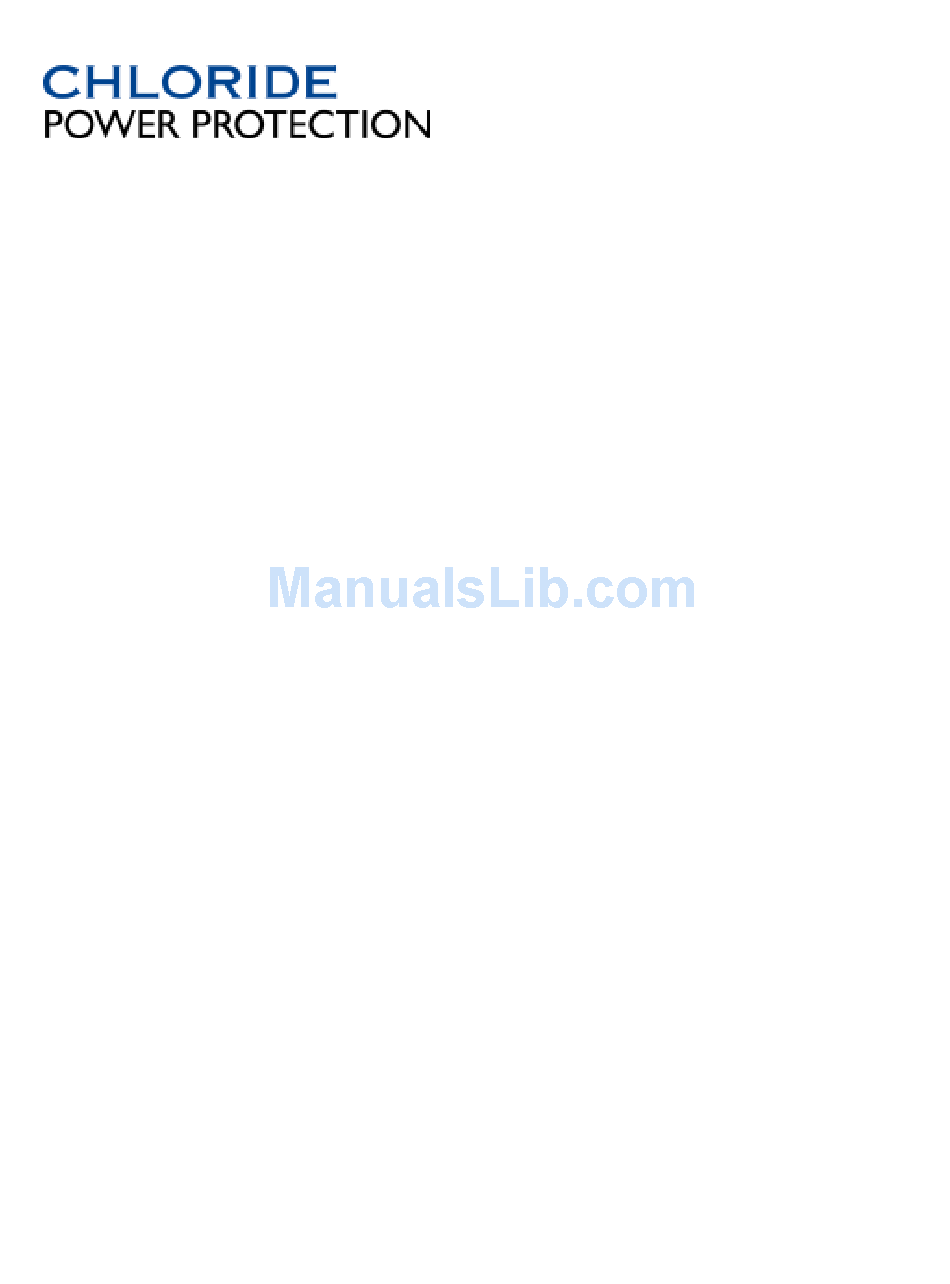

- Page 1 ACTIVE Series Uninterruptible Power Supply Operating Manual • A0K7XAU • A2K0XAU • A1K0XAU • A3K0XAU • A1K5XAU • A2K0XHU • ABP1K5-2 • A3K0XHU • ABP3K0-2...
-
Page 2: Important Safety Instructions
ACTIVE Series User Instruction Manual IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. Please read and save these instructions. This manual contains important instructions for Chloride models: • A0K7XAU • A2K0XAU • A1K0XAU • A3K0XAU • A1K5XAU • A2K0XHU • ABP1K5-2 • A3K0XHU •... -
Page 4: Table Of Contents
Introduction ..................................1 Registering Your UPS ................................1 Technical Support ................................1 FCC Compliance ................................1 Safety Compliance ................................1 About This Manual ..............................2 Symbols ..................................2 Safety ....................................3 Intended Use ................................3 General Warnings ..............................3 Safety Notices ................................3 Battery Safety ................................4 Repacking of Unit ..............................4 Setup ....................................5 Delivery ..................................5 Unpacking .................................5 Storage ..................................6... - Page 5 ACTIVE User Instruction Manual...
-
Page 6: Introduction
• North America: (847) 816-6000, option 3 or toll free (800) 879-5011 Please check with Technical Services before attempting to repair or return any Chloride product. If a Chloride UPS needs repair or replacement, Chloride Technical Services will issue a Return Material Authorization (RMA) number along with instructions on how to return the UPS. -
Page 7: About This Manual
About This Manual This manual contains information regarding the installation, operation and use of the Uninterruptible Power Supply (UPS). Consult this manual before installation of the equipment, which should be performed only by qualified personnel. This User’s Manual should be kept for later reference for operation and maintenance of the UPS. -
Page 8: Safety
Safety Safety • This device serves as an uninterruptible power supply for connected loads. The device is in compliance with all relevant safety regulations concerning information technology equipment, for Intended Use use in an office environment. • Depending on the type and rating of UPS device, certain configurations of battery extensions may be connected. -
Page 9: Battery Safety
Safety Battery Safety WARNING: The batteries installed in the UPS and within the battery extensions contain electrolyte. Under normal conditions the containers are dry. A damaged battery may leak electrolyte that can be dangerous in contact with the skin and cause irritation to the eyes. Should this happen wash the affected part with copious amounts of water and seek immediate medical advice. -
Page 10: Setup
Setup Setup The equipment has been thoroughly checked before shipment. Upon receipt, check the packaging and ensure that the contents are undamaged. Any damage must be reported to the shipper and any missing Delivery parts must be reported to the supplier immediately. Unpacking Care should be taken when removing the packaging in order to avoid damaging the equipment. -
Page 11: Storage
Installation Storage If the UPS is to be stored prior to use, it should be stored in a clean, dry environment and away from temperature extremes. It is recommended that the equipment be stored in a temperature controlled, moderate humidity environment. Table 1 below provides the temperature and humidity storage limits: Table 1. -
Page 12: Rack-Mounting The Ups Or External Battery Cabinets
Installation Rack-Mounting the The UPSs and external battery are designed to be rack-mounted in four-post frames. The UPS and external UPS or External battery cabinets use identical mounting hardware and the procedure for mounting either is the same. Battery Cabinets NOTE: The Rack-mount UPS draws cooling air from the front. -
Page 13: Tower (Floor) Mounting And External Battery Cabinets
Installation Tower (Floor) The UPS and external battery are designed to be floor standing as an alternative to rack mounting. Mounting and ATTENTION: Use all supplied mounting hardware on each UPS and external battery. External Battery Please use only the supplied fasteners to attach the supplied mounting brackets to the UPS or external Cabinets battery. -
Page 14: Electrical Preparations
Installation Cord Retention Bracket (for models with IEC receptacles) UPS models that utilize IEC inlets and receptacles have an included accessory that may be installed to help secure the input and output cords in place. To install the cord retention bracket: 1. -
Page 15: Theory Of Operation
Theory of Operation 6. Set the circuit breakers on each battery cabinet to “ON” position. Circuit Breaker Fig. 8: Battery Circuit Breaker Power Connections After all external batteries are connected, make the necessary input and output power connections by following the steps below. 1. -
Page 16: Front Panel Display And Control
Theory of Operation • 110% - 130%: 12 seconds, switches to bypass • >130% - 1.5 seconds, switches to bypass Contact technical service for further details Front Panel Display The front panel display contains a series of switches and indicator LED’s that provide the operator with the and Control current status of the UPS, and the ability to change UPS operational mode. -
Page 17: System Indicators
Theory of Operation System Indicators Table 3. System Indicator Condition Audible Visual UPS Off/unplugged None None UPS Off/plugged in None LEDs #1, #2, #3, #4 are on to show battery capacity. Start-up On - AC Power One and two beeps After start-up checks, #12 turns on. -
Page 18: Rear Panel
Theory of Operation Rear Panel Fig. 11: Rear Panel for 700 VA, 1000 VA, 1500VA (120 Volt) Models 1. Environmental Reference Ground 8. Fan 2. Input Power Connections 9. Output Receptacles 3. Controllable Receptacles 10. Interface COM3 (RS232) 4. Slot Interface COM 11. - Page 19 Theory of Operation 2000 VA (120 V) Model 3000 VA (120 V) Model 2000 VA (230 V) Model 16 17 3000 VA (230 V) Model Fig. 12: Rear Panel for 2000 VA and 3000 VA 1. Environmental Reference Ground 9. Output Receptacles (9C full nameplate rated output) 2.
-
Page 20: Ups Start-Up & Shutdown
UPS Start-up & Shutdown Fig. 13: Rear Panel External Battery Pack 1. Battery Power Receptacle (input from UPS) 3. Battery Power Receptacle (output to additional battery) 2. Battery Circuit Breaker 4. Battery Counter Connector UPS Start-up & ATTENTION: This UPS is supplied with standard power cords and receptacles suitable for its use in your area of operation. -
Page 21: Maintenance
Maintenance Maintenance Do not use scouring powder or plastic-dissolving solutions to clean the UPS. Cleaning Do not allow liquid to get inside the UPS. Make sure that the air vents on the UPS are not obstructed. Remove dust from the air vents with a vacuum cleaner. - Page 22 Maintenance The manufacturer’s service center is fully equipped to deal with such batteries, in accordance with the law and with the greatest respect for the environment. Contact Technical Support to arrange for maintenance and/or battery replacement. The typical battery life cycle is 3 to 5 years, at an ambient temperature of 77°F (25°C), however battery life is also dependent on the frequency and duration of mains failures or battery discharge cycles.
-
Page 23: Battery Disposal
Interfaces Battery Disposal The typical battery life cycle is 3 to 5 years, at an ambient temperature of 25 °C, but is also dependent on the frequency and duration of mains failures. Once the battery has reached the end of its useful life, follow the procedure for battery replacement, see “Replacing Batteries”... -
Page 24: Optional Isolated Contacts Card
Interfaces equipment. The interface ports will send On Battery and Low Battery signals to the host computer. The interface ports will also accept a shutdown inverter signal to conserve battery life. USB Port Serial Port fig. 17: UPS Communications Ports Installing MopUPS Express To establish communications between the UPS and a computer: 1. - Page 25 Interfaces AC FAIL This output provides an N/O (Normally Open) contact between pins 9 and 5, and an N/C (Normally Closed) contact between pins 8 and 5. The 9-5 contact closes when the mains voltage fails at the UPS input or when the mains voltage falls below the lower limit for a minimum of 10 seconds.
-
Page 26: Troubleshooting
Troubleshooting Troubleshooting If problems should occur in spite of the high reliability of this device, please check the following points before contacting Technical Support: • Is the mains voltage present at the UPS input? • Is the input fuse blown or have circuit breakers tripped? When contacting Technical Support, please have the following information ready: •... -
Page 27: Appendix A: Features And Specifications
Appendix A: Features and Specifications Appendix A: Your Chloride ACTIVE Series UPS features on-line double conversion. This provides the highest level of protection from power line disturbances available. Features and • Two-year warranty on power control systems Specifications • Two-year warranty on batteries •... -
Page 28: Physical And Electrical Specifications
Appendix A: Features and Specifications Physical and Electrical Nominal input voltage: XAU models (low voltage): 120 V (factory default) Specifications 100, 127 V (user selectable) XHU models (high voltage): 208 V (factory default) 200, 208, 220, 230, 240 (user selectable) Available output voltage: XAU models (low voltage): 120 V (factory default) 100, 127 V (user selectable) XHU models (high voltage): 208 V (factory default) -
Page 29: Specifications
Appendix A: Features and Specifications Specifications UPS Model A07KXAU A1K0XAU A1K5XAU A2K0XAU A3K0XAU A2K0XHU A3K0XHU Part number A07KXAU A1K0XAU A1K5XAU A2K0XAU A3K0XAU A2K0XHU A3K0XHU Maximum load (VA/W) 700 VA/490 W 1000 VA/700 W 1500 VA/1050 W 2000VA/1400 W 3000 VA/2100 W 2000 VA/1400 W 3000 VA/2100 W Acceptable input voltage range (VAC) 80-142... - Page 30 Internal Battery Internal Battery Internal Battery Internal Battery Internal Battery Plus 1 Ext Battery Plus 2Ext Battery Plus 3Ext Battery Plus 4Ext Battery A0K7XAU half load/full load (min) 27/11 110/50 228/93 328/148 450/200 A1K0XAU half load/full load (min) 19/7 76/32...
- Page 31 Chl or ide Power Pr ot ect ion: 28430 N Ballard Drive, Lake Forest, IL 60045 USA Tel ephone: ( 847) 990-3228 Toll Free: (800) 388-4234 Facsimile: (800) 833-6829 www.chlorideups.com...
