1.6.5 CONNECTION OF THE LOAD WIRING

Remove the top and the front cover panels of the output cabinet. Make sure the labeled
output voltage corresponds to the rated load voltage. Make the appropriate connections as
detailed in the following sections.
1.6.5.1 HARDWIRE CONNECTIONS (STANDARD)
The UPS in its standard configuration has hardwire connections configured according to
the following drawings.
Customer terminal
connections
Conduit knockouts

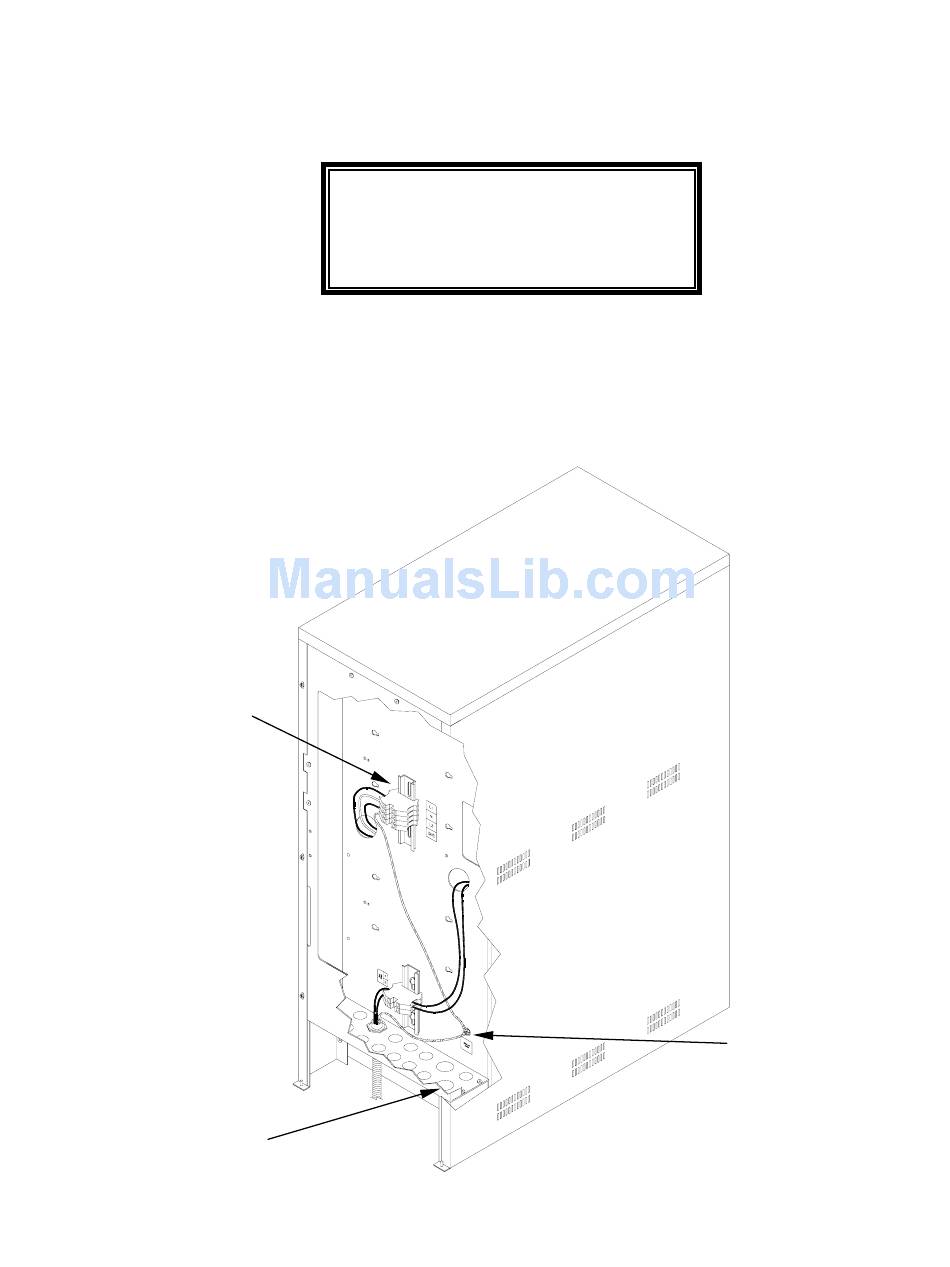

Figure L: Customer connection locations – Hardwired configuration
NOTE
This equipment is manufactured as a
separately derived system. The output
neutral shall be grounded in accordance
with NEC Art 250-5.
21
Ground bond electrode
connection point
