1.6.5.2 CONNECTIONS OF 120/208/240V LOADS (4-12kVA)
Connections for 240VAC loads are available between L1 and L3. Loads that utilize
208VAC can be connected using terminals L2 and L4.Use L1 and N and/or L3 and N for
120VAC loads. Refer to Figure N below. The total kW drawn from these three
connections cannot exceed the kW rating of the UPS.
Note: Balance 120V loads evenly between L1 - N and L3 - N.

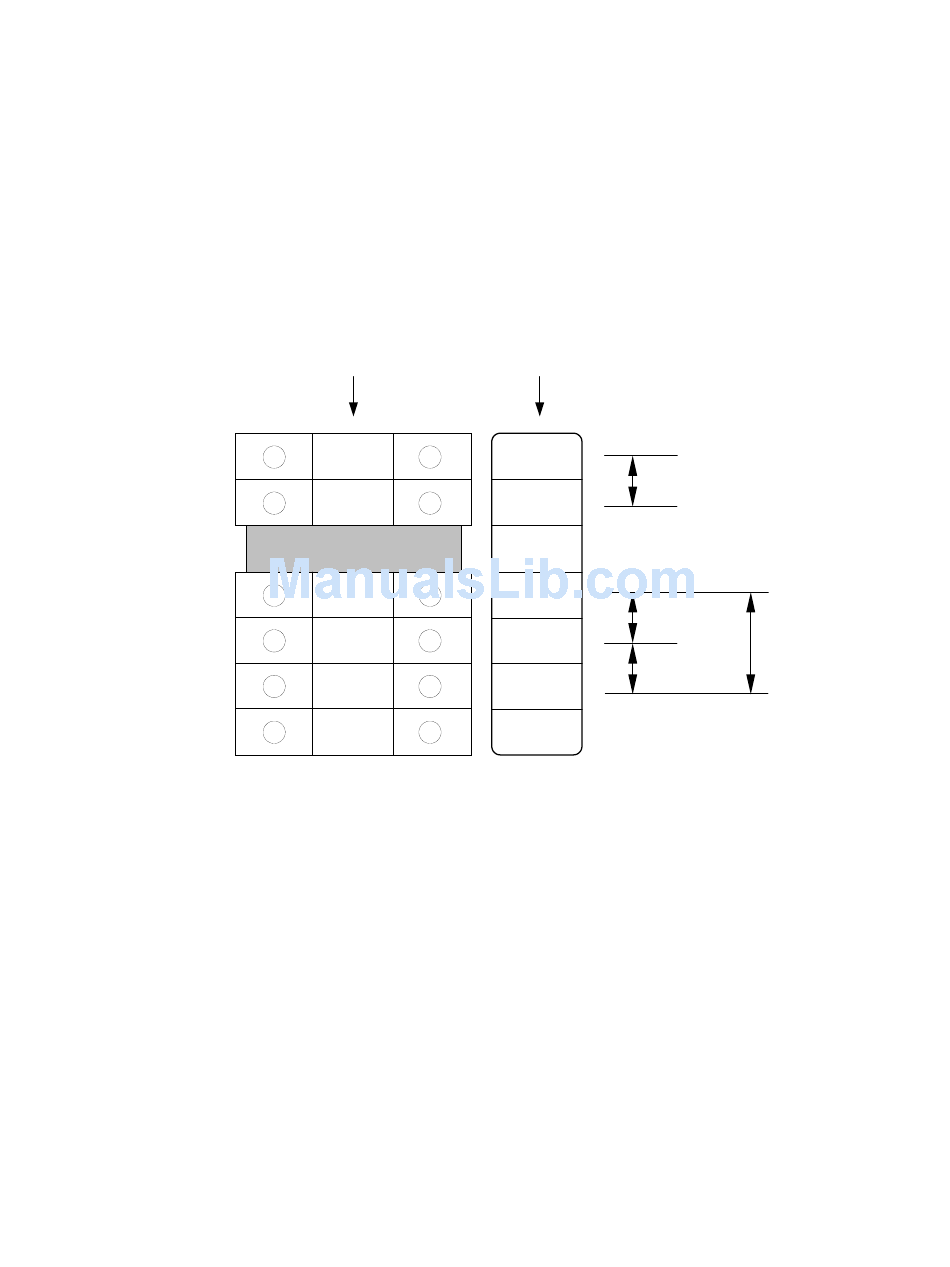

Figure M: 120/208/240 Output connections (4-12kVA)
Terminals
22
Labels
L2
208 V
L4
L1
120 V
N
120 V
L3
GND
240 V
