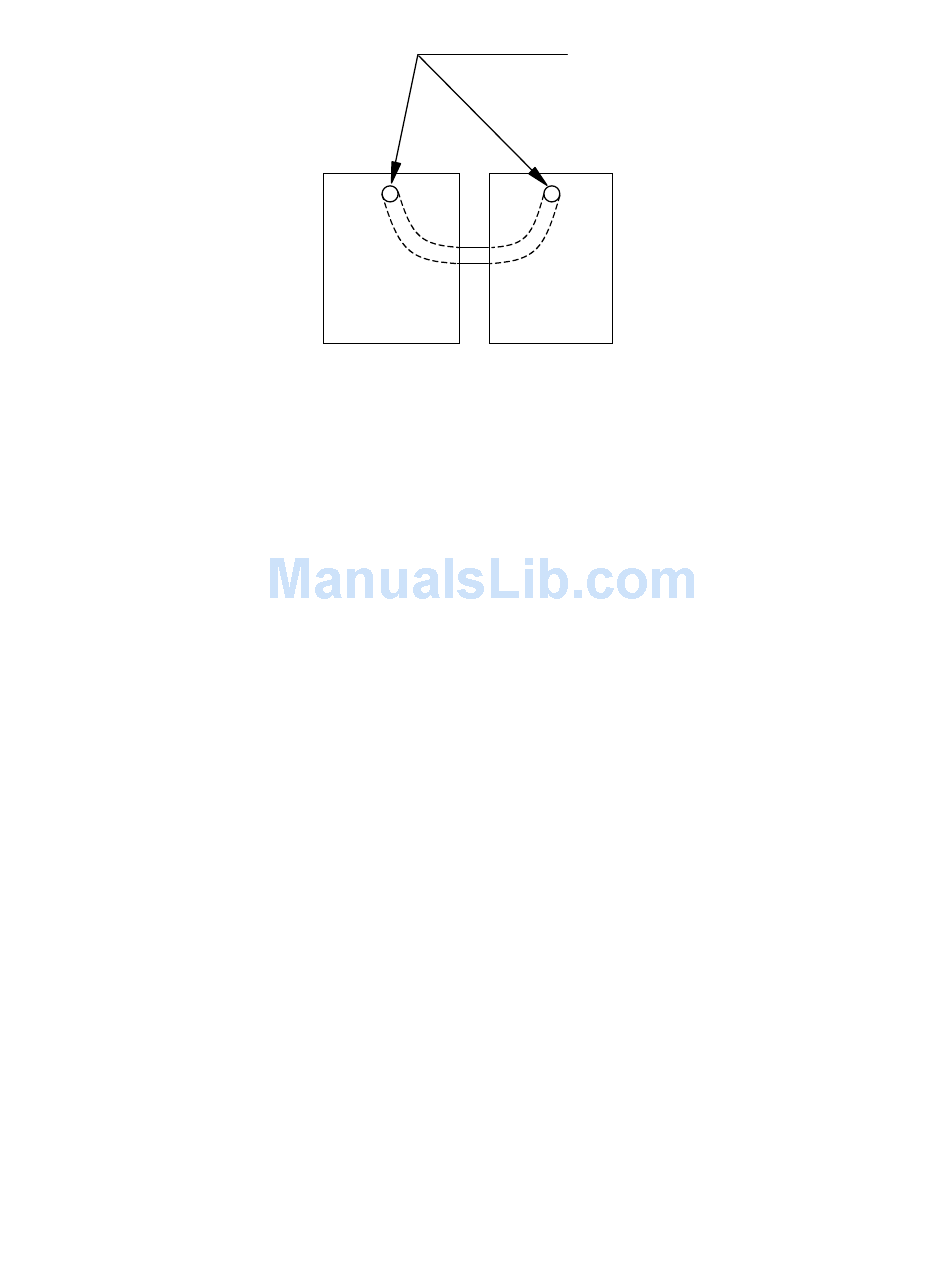

Figure C: Recommended placement – Standard configuration 14-18kVA (overhead view)

1.5.1 SPECIFICATIONS FOR HANDLING EQUIPMENT

The Electronics Module can be moved into place by one or two persons. See Table
unit weights.

1.5.2 SPECIFICATIONS FOR UTILITY INPUT LINE AND RATINGS

This system must be connected to a properly rated 60Hz +/- 5% line. Voltage tolerance
must be +/- 10% of nominal. Refer to Table

1.5.3 INSTALLATION DATA

- Ambient temperature
- Relative humidity (w/o condensing at 20°C)
- Maximum altitude without derating
- Cable entrance
- Air inlet
- Air outlet
BATTERY
UPS
CAB
FRONT
for the proper input current rating.
B
0 °C to +40 °C (32 °F to 104 °F)
90%
1000 m (3300 ft)
bottom at rear
bottom
rear
10
CABLE ENTRY (BOTTOM)
for
A
