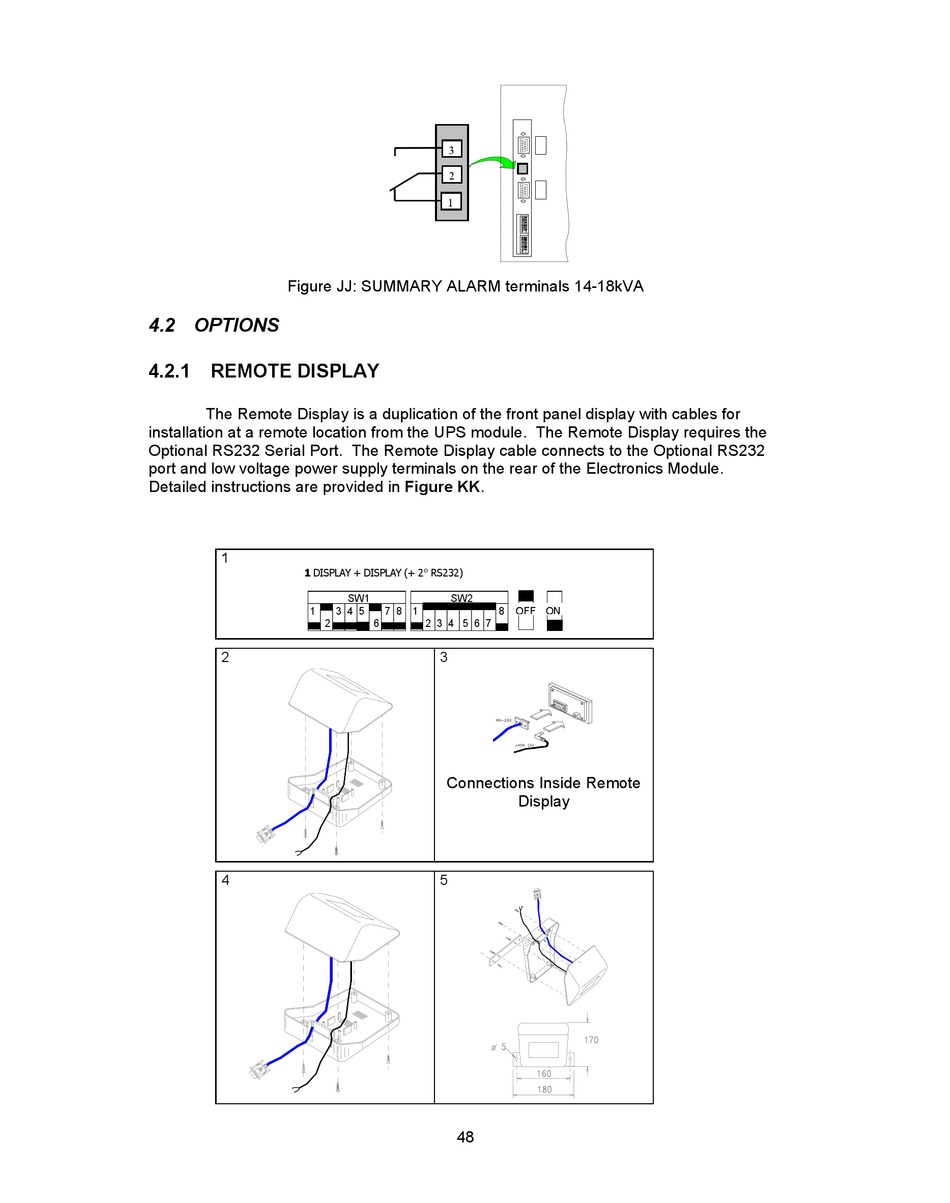

Figure JJ: SUMMARY ALARM terminals 14-18kVA

4.2 OPTIONS

4.2.1

REMOTE DISPLAY

The Remote Display is a duplication of the front panel display with cables for
installation at a remote location from the UPS module. The Remote Display requires the
Optional RS232 Serial Port. The Remote Display cable connects to the Optional RS232
port and low voltage power supply terminals on the rear of the Electronics Module.
Detailed instructions are provided in Figure KK.
1
1 DISPLAY + DISPLAY (+ 2° RS232)
2
4
3
2
1
SW1 SW2
1 3 4 5 7 8 1
2 6 2 3 4 5 6 7
3
Connections Inside Remote
5
48
8 OFF ON
Display
