1.6.3 CONNECTING THE UPS TO THE OUTPUT CABINET (4-6KVA)

The Output Cabinet is connected to the UPS cabinet by flexible conduit. Begin the
connection by attaching the 90° end of the flexible conduit to the UPS cabinet. The two
black wires attach to the A and B terminals and the ground wire attaches to the ground
terminal (reference Figure E.) Remove the front panel from the output cabinet by
unlocking the door, removing two restraining screws and lifting the panel off. Remove the
¾" knock out from the conduit panel (located in the bottom front of the cabinet.) Route the
wires through the knockout hole. Secure the conduit to the access panel. Connect the
black cables to terminals A and B in the output cabinet and the green and yellow wire to
the ground stud as shown in Figure J. The leveling feet of the output cabinet should be
lowered after installation to bring the casters off the floor and to match the cabinet height
to the UPS.
Front of Cabinet
Input connections
Ground
connection
Interconnect
point
cable from
UPS

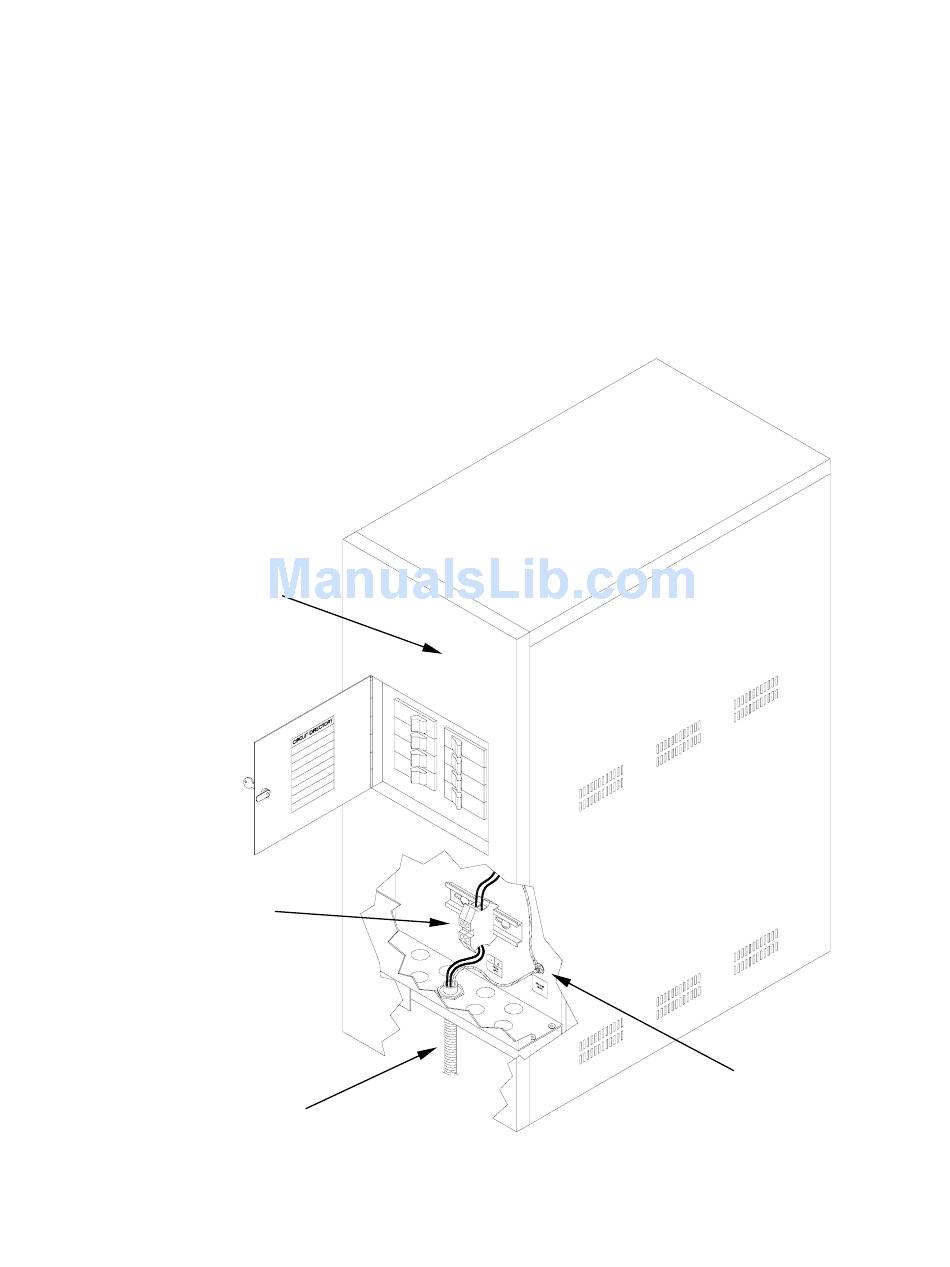

Figure J: Output Cabinet connection to UPS - 4-6kVA (front of cabinet)
