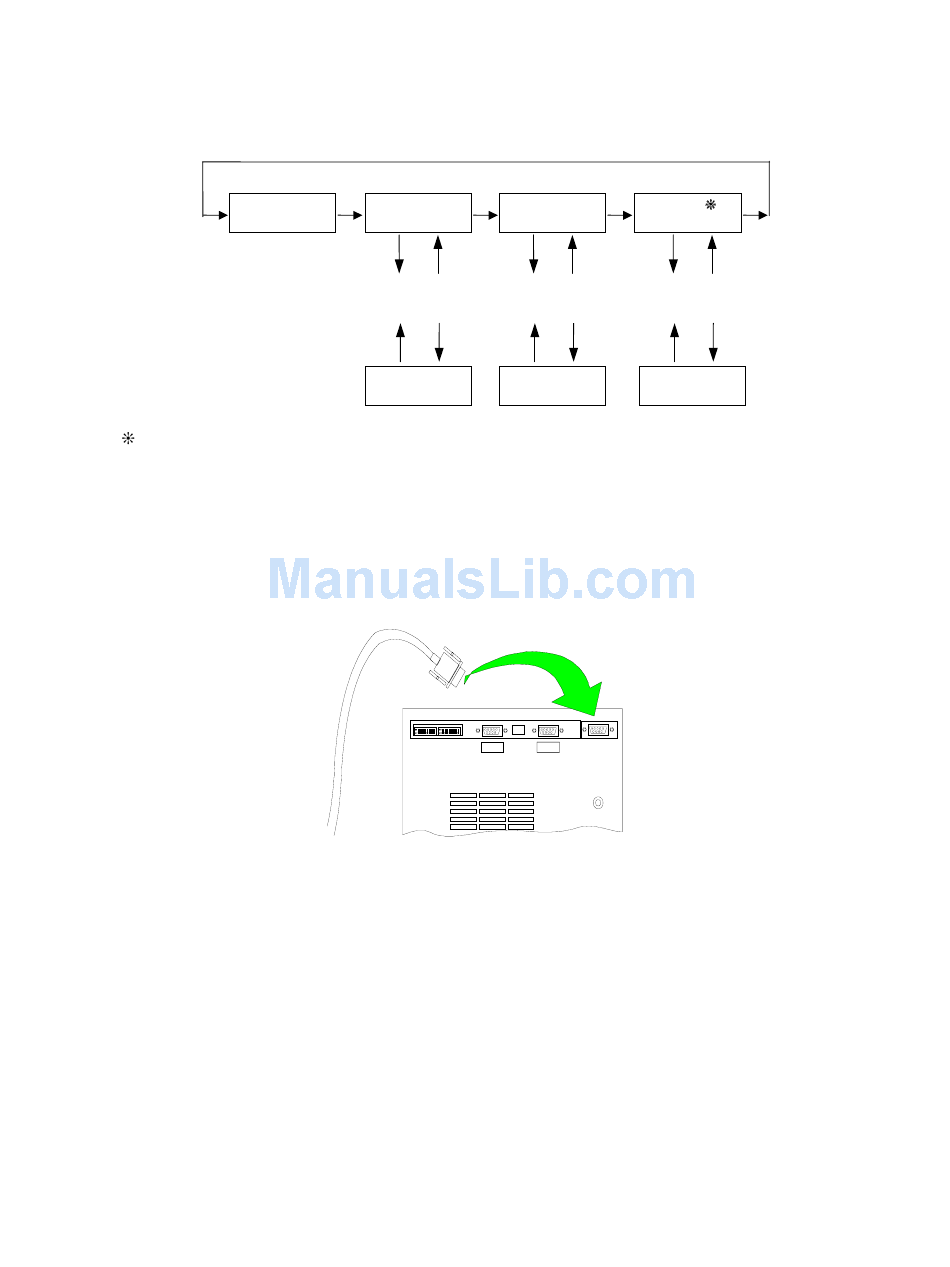

EXAMPLE OF HOW TO 'MOVE' WITHIN AN INDIVIDUAL BLOCK
(USING THE 'UP', 'DOWN' AND 'RIGHT' ARROWS)
BLOCK STATUS MEASUREMENT
ALARM
PAGE PAGE PAGE
PAGE
LIST OF LIST OF LIST OF
STATUSES MEASUREMENTS ALARMS
If active.

4.1.2 RS-232 INTERFACE

The UPS is equipped with a 9 pin "D"-type connector which makes it possible to connect a
computer to the microprocessor inside the UPS. Note that the proper port to connect to is
the one on the far right. The center port is tied up with the internal display in the standard
product.
Figure BB: Installation of RS-232 computer interface 4-12kVA
43
