Figure F: Dual Ac Sources - Chloride SYNTHESIS User Manual

1.6.1.2 CONFIGURING THE UPS FOR A DUAL FEED INPUT
Jumpers to Remove
for Dual Input
QS1 QS3 QS4
I O N I O N I O N I O N
0 0 0 0
O F F O F F O F F O F F
L1 L2
LINE
INPUT OUTPUT
Bypass Utility
Input Input
Removing the jumpers shown in Figure F allows the UPS bypass line to be fed by a
separate source. Two (2) jumpers to remove are between L1 and third terminal from the
left and L2 and fourth terminal from the left. The configuration shown in Figure F shows
the terminal connections necessary when a second source is brought to the UPS. "Bypass
line" supplies the static bypass line and the maintenance bypass line, while "Utility input"
supplies the rectifier and inverter of the UPS.
After removing the jumpers shown in Figure F, connect your bypass source wires to the
"Bypass Line" terminals L1 and L2. Connect your main utility input wires to the two
terminal blocks immediately to the right of the "Bypass Line" terminals (there is no
designation on the terminal block label for these terminals, consult the factory for
clarification and instruction if necessary.)
I O N I O N
0 0
O F F O F F
A B GND Label,
Terminal
UPS
Blocks
To Output
Cabinet

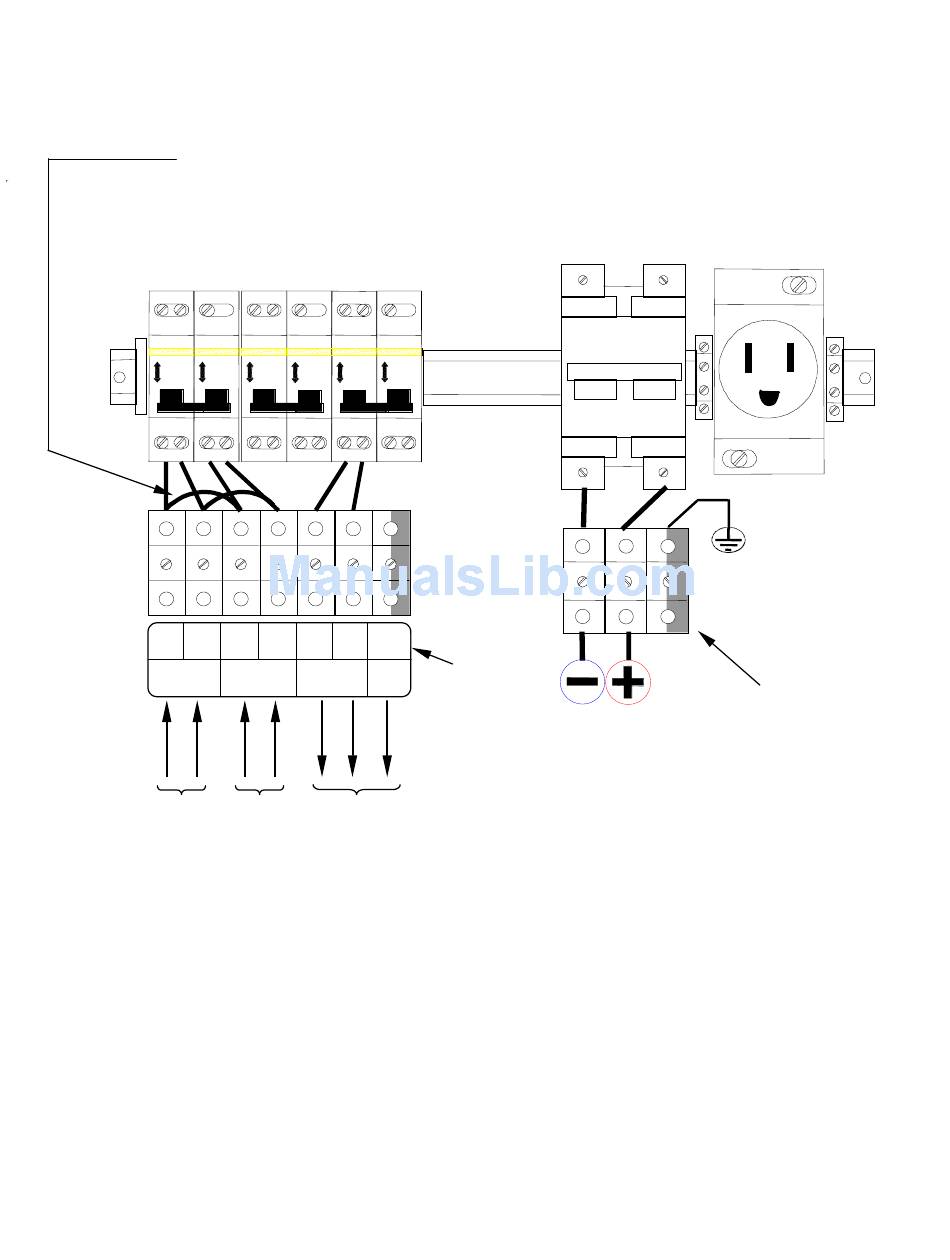

Figure F: Dual AC sources

16
QS5
Equipment Ground to
Extended Run
Battery
Connection
(if present)
LIFE MODEM
POWER
SUPPLY
Battery Cabinets
