I - 2.2.3. Connecting for configuration

ATLAS X60
The
referred to as "CONF." which provides access to the device local console. In
order to configure this, you must connect the "CONF." port to an asynchronous
terminal (or to a PC with terminal emulation).
Configuration for the terminal must be:
- Speed: 9600 bps
- Eight data bits
- One stop bit
- No parity bit
- No type of flow control

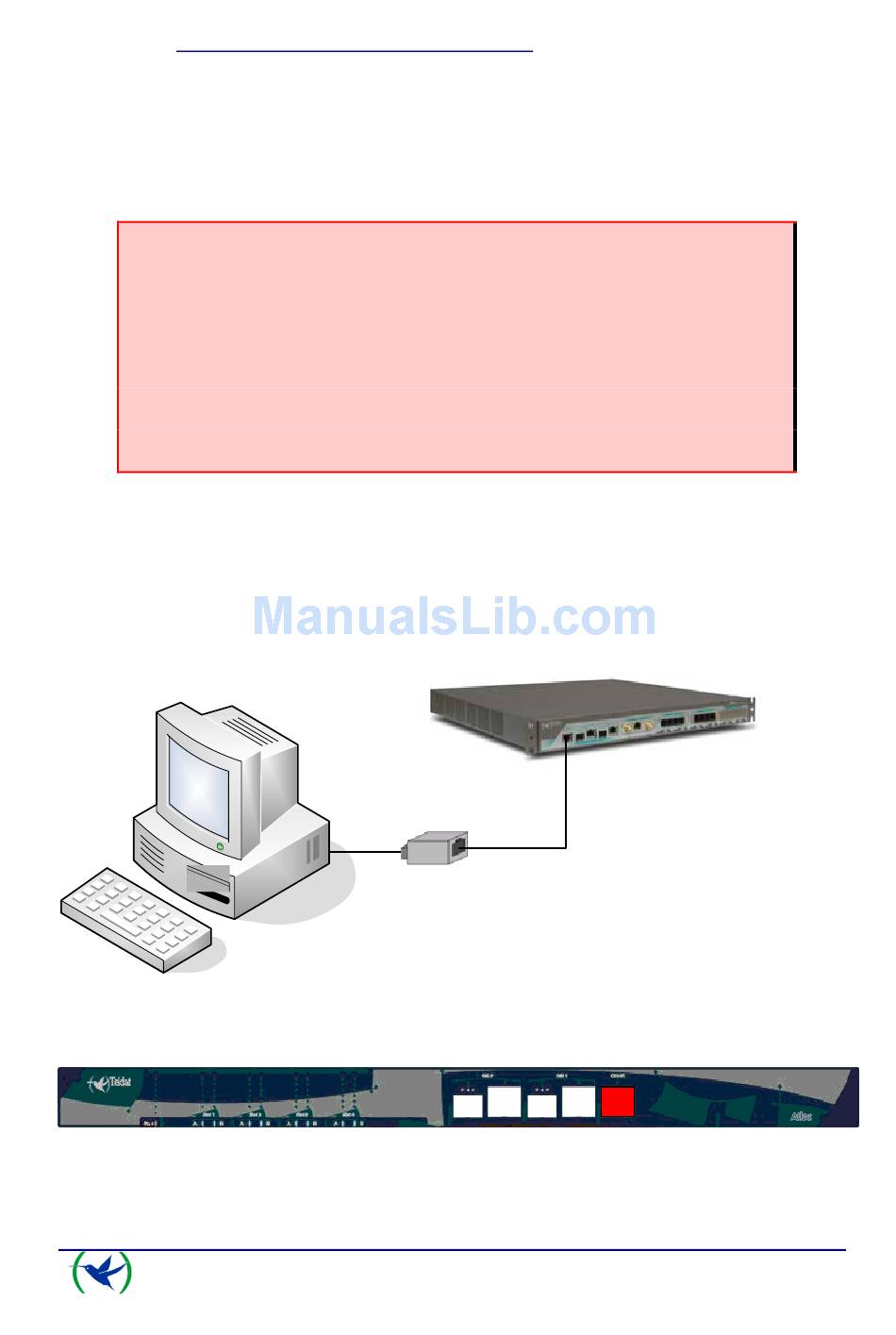

Connection to the configuration port can be carried out using the RJ45 connectors
cable, provided with the device, together with the RJ45 Female-DB9 Female
adaptor also provided with the device.
The CONF connector for the ATLAS 160 and 260
router has a RJ45 female connector on the front panel
Adaptador
RJ45H-DB9H
Connecting for configuration
ATLAS X60
