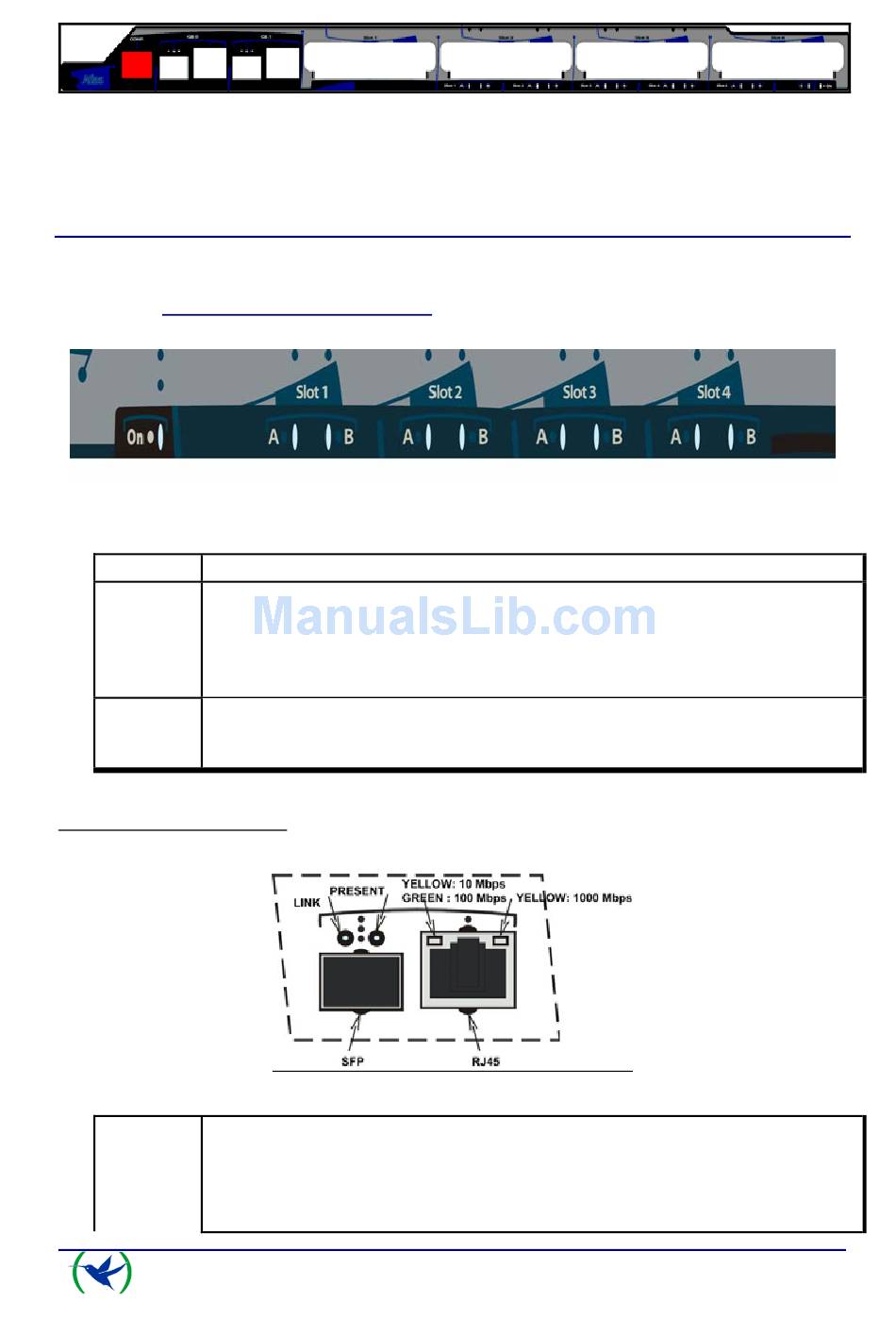

I - 3. Meaning of the LEDs

I - 3.1. ATLAS 160 and 260

ON Power-on indicator. It lights up when connected to the power supply
SLOT [1-3] Depends on the card installed in the PCI Slot. Normally this is:
OFF:
A & B
RED:
YELLOW:
GREEN:
SLOT 4 The device has a MINI-PCI slot where you can install a Wireless LAN daughter card.
Please see the manual on Wireless LAN interfaces to check how the LEDs operate.
A & B
Specific connector LEDs
GEX Optic connector:
-Left: link and activity detection
OFF:
RED:
The CONF connector for the ATLAS 360
ATLAS 160 and 260 LEDs
Interface not available or not installed (not supported).
Interface not established, without data connection.
Connecting.
Communications established.
There is no link.
Link detected. Flashing depends on the activity.
ATLAS X60
Installation
I-7
.
Doc. Dm695-I
Rev. 1.0
