II - 3. Connectors

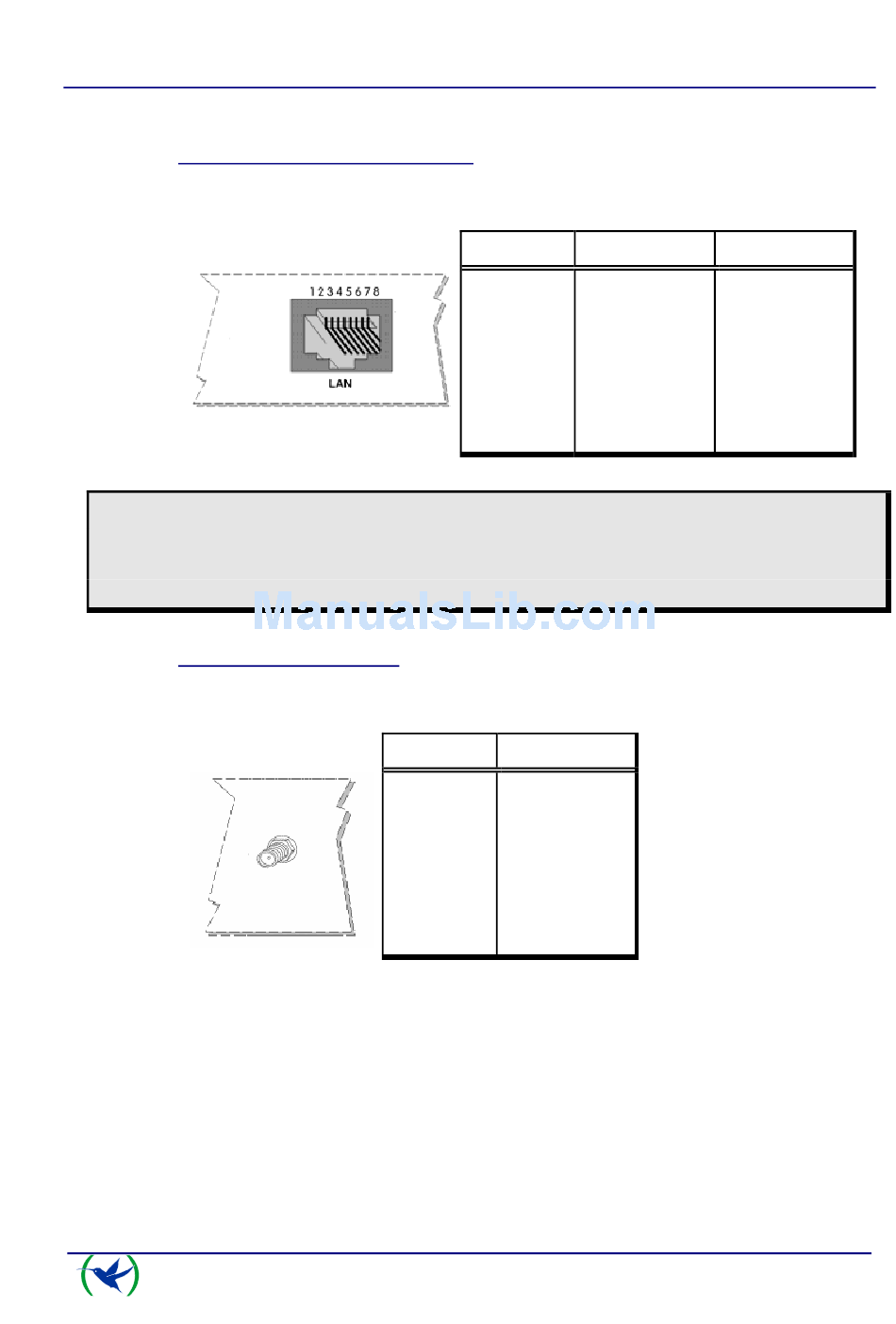

II - 3.1. LAN (GE x) Connector
NOTE:
The Ethernet connectors are equipped with the MDI-X autodetection feature and
autopolarity. Behavior is full-duplex. A null HUB cable is not required to connect to
another Ethernet interface.
II - 3.2. ANT Connectors
RJ45 LAN
PIN
Internal
External
ATLAS X60
RJ45 PIN FE Signals
1 BI-DA+
2 BI-DA-
3 BI-DB+
4
5
6 BI-DB-
7
8
ANT
RF in/out
GND
Appendix
II-18
GE Signals
BI-DA+
BI-DA-
BI-DB+
-- BI-DC+
-- BI-DC-
BI-DB-
-- BI-DD+
-- BI-DD-
