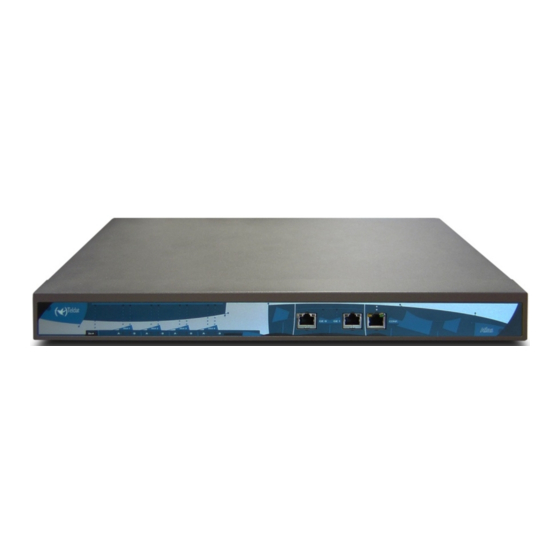

- Page 1 Manual Teldat S.A. ATLAS X60 Installation Manual Copyright© Teldat-DM695-I Version 4.1 7/2015 Teldat S.A. ATLAS X60...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Recycling and the Environment ......Translated Safety Warnings ......ATLAS X60... - Page 4 Table of Contents Teldat S.A. ATLAS X60...
-
Page 5: I Important Information
Furthermore, it is crucial to avoid any kind of contact between the device components and necklaces, bracelets, rings, ties, etc. ATLAS X60... -
Page 6: Chapter 1 Installing The Router
IPSec or L2TP, together with the wide range of protocols and IP routing and bridging functionalities, make this an outstanding feature. The ATLAS X60 router family can be expanded with up to 4 PCI cards, allowing you to increase the number of inter- faces in the device. -
Page 7: Connections
Turn the power supply switch to the ON position 1.2.1 Power Source Connection The ATLAS X60 router is powered with an internal power source. To avoid electric shocks, residual current circulation and other unwanted effects, also affecting communications, the following is recommended:... -
Page 8: Connections
ANT.: The ATLAS X60 router has two connectors for an external antenna, used to improve the quality of the signal re- ceived and transmitted by the Wireless LAN module. This module is optional and it’s possible that your device does not have a Wireless LAN or antennas. - Page 9 1.2.2.3 Connecting for configuration The ATLAS X60 router has a RJ45 female connector on the front panel referred to as "CONF.", which provides ac- cess to the device local console. In order to configure this, you must connect the "CONF." port to an asynchronous terminal (or to a PC with terminal emulation).
-
Page 10: Meaning Of The Leds
Specific connector LEDs Fig. 13: Metallic connector: -Left: ORANGE: 10Mbps. Flashing depends on the activity. GREEN: 100Mbps. Flashing depends on the activity. -Right: YELLOW: 1000Mbps. Flashing depends on the activity. OFF: Both off means the link has not been detected. ATLAS X60... -
Page 11: Atlas 360
Specific connector LEDs Specific connector LEDs Fig. 15: Optic connector: -Left: link and activity detection OFF: There is no link. RED: Link detected. Flashing depends on the activity. -Right: SFP present OFF: SFP not present. RED: SFP present. ATLAS X60... -
Page 12: Programming The Microswitches
OFF: Both off means the link has not been detected. 1.4 Programming the microswitches The ATLAS X60 router has a block of 8 available micro-switches, which are used for maintenance and test tasks. To access these you need to carry out the following steps: •... - Page 13 Press any key to get started • On reaching this point, you can set micro-switch ‘5’ in the OFF position. This way, the saved configuration will run the next time you restart the device. • Finally, close the device again. ATLAS X60...
-
Page 14: Pmc-Pci Cards
Teldat S.A. 1.5 PMC-PCI Cards The ATLAS X60 features and interfaces can be amplified by inserting PMC boards (PCI mezzanine card). In order to correctly insert the card, please follow the steps given below. PMC-PCI SLOT for the ATLAS 160 and ATLAS 260 Fig. - Page 15 (CONFIGURED) ATLAS3G.BIN ver.: 0.10.7.12 0.0.0.0..APP DATA DUMP ..........Bios-stack used: 0x1588 Bios-stack free: 0x2A78 Aux-stack used: 0x13C Aux-stack free: 0x1EC4 Running application Parsing text mode configuration ... Configuration parsed Initializing Press any key to get started ATLAS X60...
-
Page 16: Port Switch Board
If the problem per- sists, please contact your usual supplier. (7) Connect a terminal to the console and check that the device detects the Switch board. ************************************************** ******************* Router Teldat **************** ************************************************** BIOS CODE DUMP....BIOS DATA DUMP.. - Page 17 ......................................APP DATA DUMP..........Bios-stack used: 0x1588 Bios-stack free: 0x2A78 Aux-stack used: 0x18C Aux-stack free: 0x1E74 Running application Flash configuration read Parsing text mode configuration ... Configuration parsed Initializing Press any key to get started ATLAS X60...
-
Page 18: Appendix A Technical Information
A.2 Updating the software The ATLAS X60 router can be updated to new releases. Please contact your distributor for further details on new re- leases. The software required to update Teldat routers is supplied in a format known as distribution. This consists of a single file which contains all the files needed to update your device, as well as in-depth information on the contents of the files. -
Page 19: Lan (Ge X) Connector
The Ethernet connectors are equipped with the MDI-X autodetection feature and autopolarity. Behavior is full-duplex. A null HUB cable is not required to connect to another Ethernet interface. NOTE: A.3.2 Configuration Connector Internal RF in/out External RJ45 PIN CONF RJ45 CONFIGURATION A.4 Technical Specifications Hardware Architecture PROCESSORS Motorola PowerPC MPC8548 ATLAS X60... - Page 20 100-240 V AC INPUT CURRENT INPUT FREQUENCY 50-60 Hz MAXIMUM POWER 100 VA ATLAS 160 and ATLAS 260 Power Supply INPUT VOLTAGE 100-240V AC INPUT CURRENT INPUT FREQUENCY 50-60 Hz MAXIMUM POWER 100 VA ATLAS 360 Dimensions and Weight ATLAS X60...
- Page 21 444 without rackmount bracket x 272 x 44 mm WEIGHT 3,250 kg Environmental Specifications AMBIENT TEMPERATURE ON: 5º to 45 ºC. OFF: -20º to 60 ºC RELATIVE HUMIDITY ON: 8 % to 85 %. OFF: 5 % to 90 %. ATLAS X60...
-
Page 22: Appendix B Safety Information
B.1 Recycling and the Environment Please do not, under any circumstances, throw away any ATLAS X60 with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them in order to protect the environment against e-waste. Al- ways respect the current laws regarding waste material. -
Page 23: Translated Safety Warnings
Safety information Teldat S.A. B.2 Translated Safety Warnings Connections ATLAS X60...
