8.18.3 Replacing the backrest mounting bracket for SB 53

Requirements:
· 5 mm Allen key
Dismantling the backrest unit:
·
Remove the backrest cushion.
·

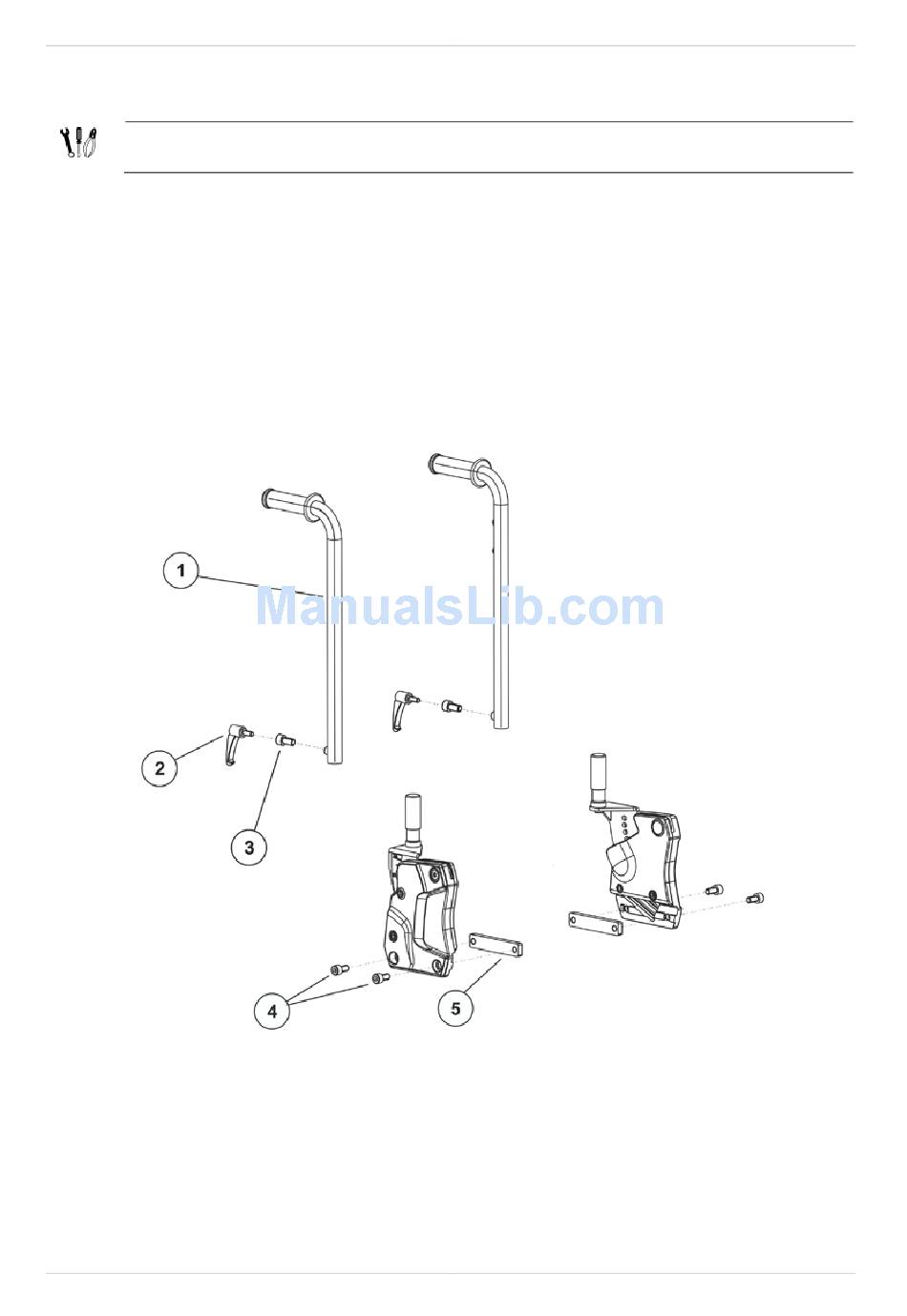

Loosen the fixation levers (2) of the corresponding backrest tube (1), depending on the version.
There are two versions:
(2) - for the manual backrest
(3) - for the electrically adjustable backrest
·
Remove the backrest tube.
·
Loosen and remove the two hexagon socket head screws (4) to the sliding block (5) on the left
and right side of the chair.
Refitting the backrest unit:
·
Replace the parts in the reverse order.
·
To conclude, you should always carry out a trial run to test the vehicle functions.
