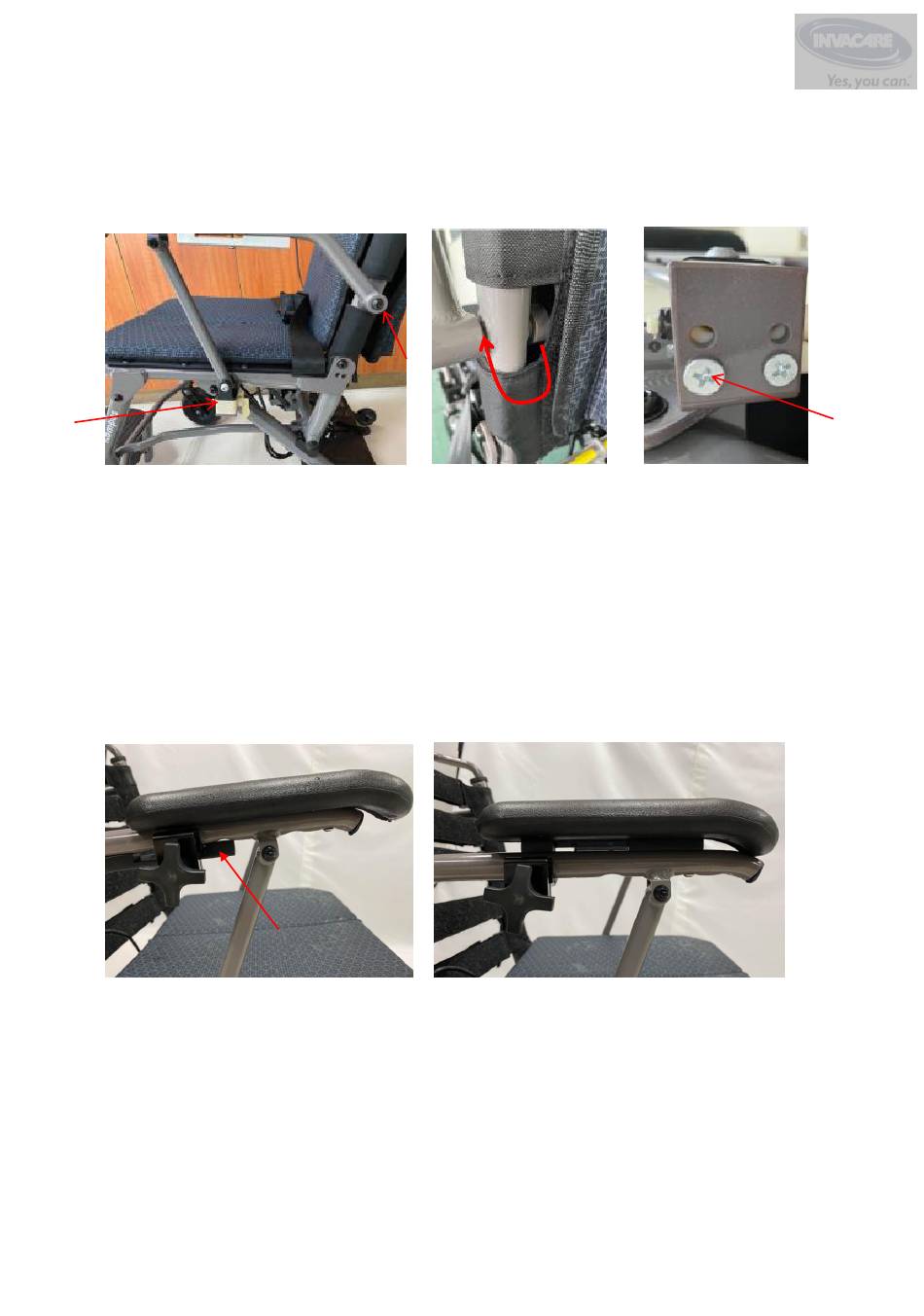

Armrest Width Adjustment
A
1. Unlock (A) to lift the armrest.
2. Remove the 2 screws(C) to the other two holes
3. Unscrew (B) and move the washer (D) from inside of the frame to outside and put it
between armrest and the frame. Screw into the armrest fixation points (B) through
the washer (D).
4. Place Armrest back to fixation points (A).
5. Repeat 1-5 on the other side.
Armrest Height Adjustment
1. Remove the screws from the armrest.
2. Remove (A) and relocate it between armrest and tube.
3. Lock screws on the armrest.
4. Repeat 1-3 on the other side.
Kompas UM Addendum
B
A
D
C
