8.10

Drive unit

8.10.1 Replacing the motor/transmission unit

ATTENTION: Danger of crushing to the hands and feet by the weight of the wheelchair!
· Pay attention to the hand and feet.
· Use proper lifting techniques.
Danger of injury due to uncontrolled movement of the wheelchair!
· Switch the vehicle's power system off (ON-/OFF key).
· Engage the drive motors.
· Secure the vehicle against rolling away by placing wedges under the wheels.
ATTENTION: Danger of crushing!
The motor gearbox unit is extremely heavy. Injury hazards to hands!
· Please note the high weight
Requirements:
· 6 mm Allen key
· 19 mm socket spanner
· long wooden blocks, min. 14 x 14 x 30 cm

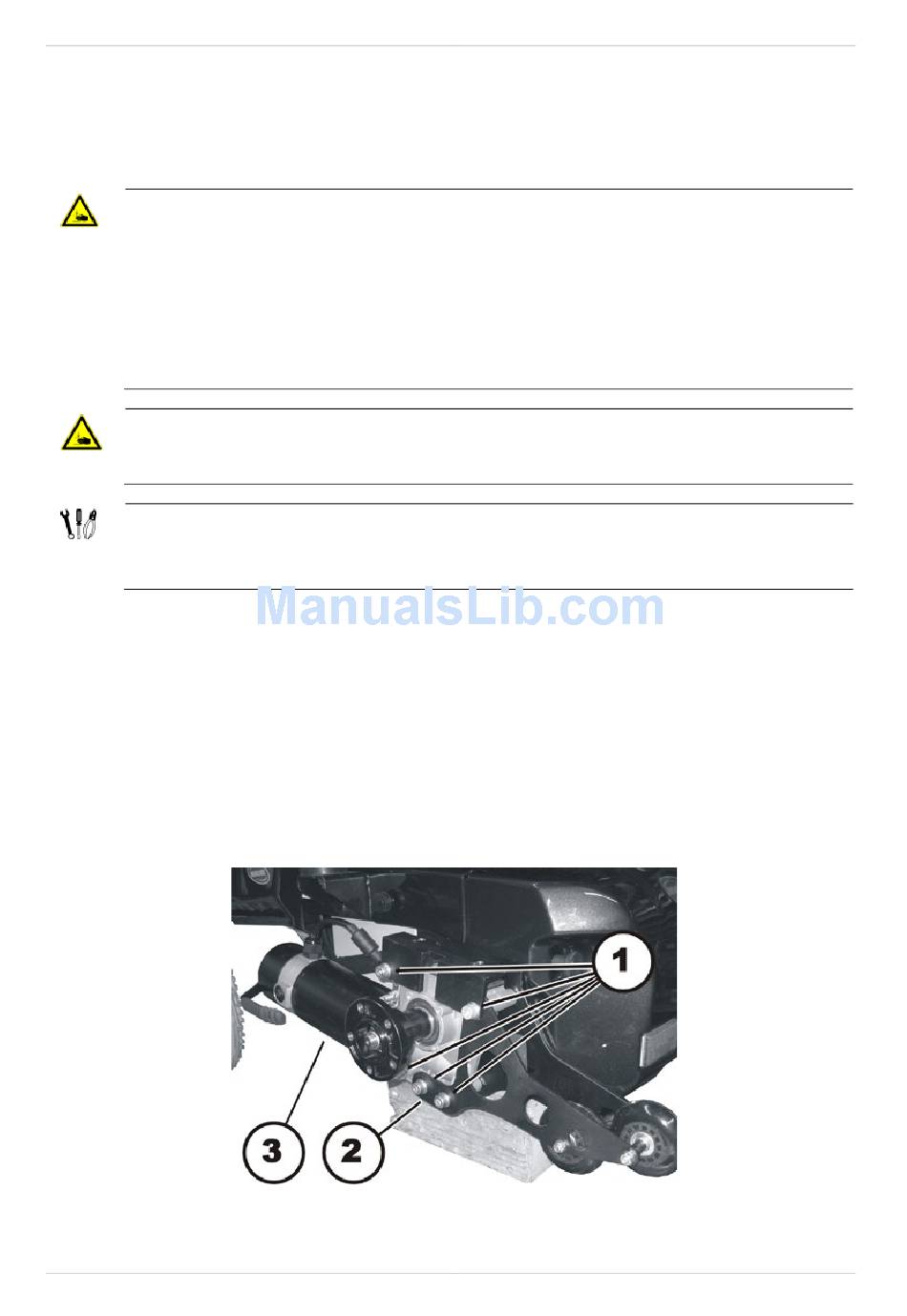

Removing the motor/transmission unit:
·
Switch the electronics OFF on the remote.
·
Remove the rear battery box cover, as described in chapter 8.1.1.
·
Pull the motor plug out of the power module.
·
Open the cable clamps and expose the motor cable.
·
Remove the drive wheel as described in chapter 8.9.1.
·
Remove the wheel hub as described in chapter 8.9.3.
·
Remove the splash guard as described in chapter 8.1.6.
