8.10.2 Replacing or rotating the motor / gearbox unit sealing ring

CAUTION: Danger of crushing!
The motor / gearbox unit is very heavy. Danger of injury to the hands!
· Pay attention to the heavy weight.
Requirements:
· 10 mm socket wrench

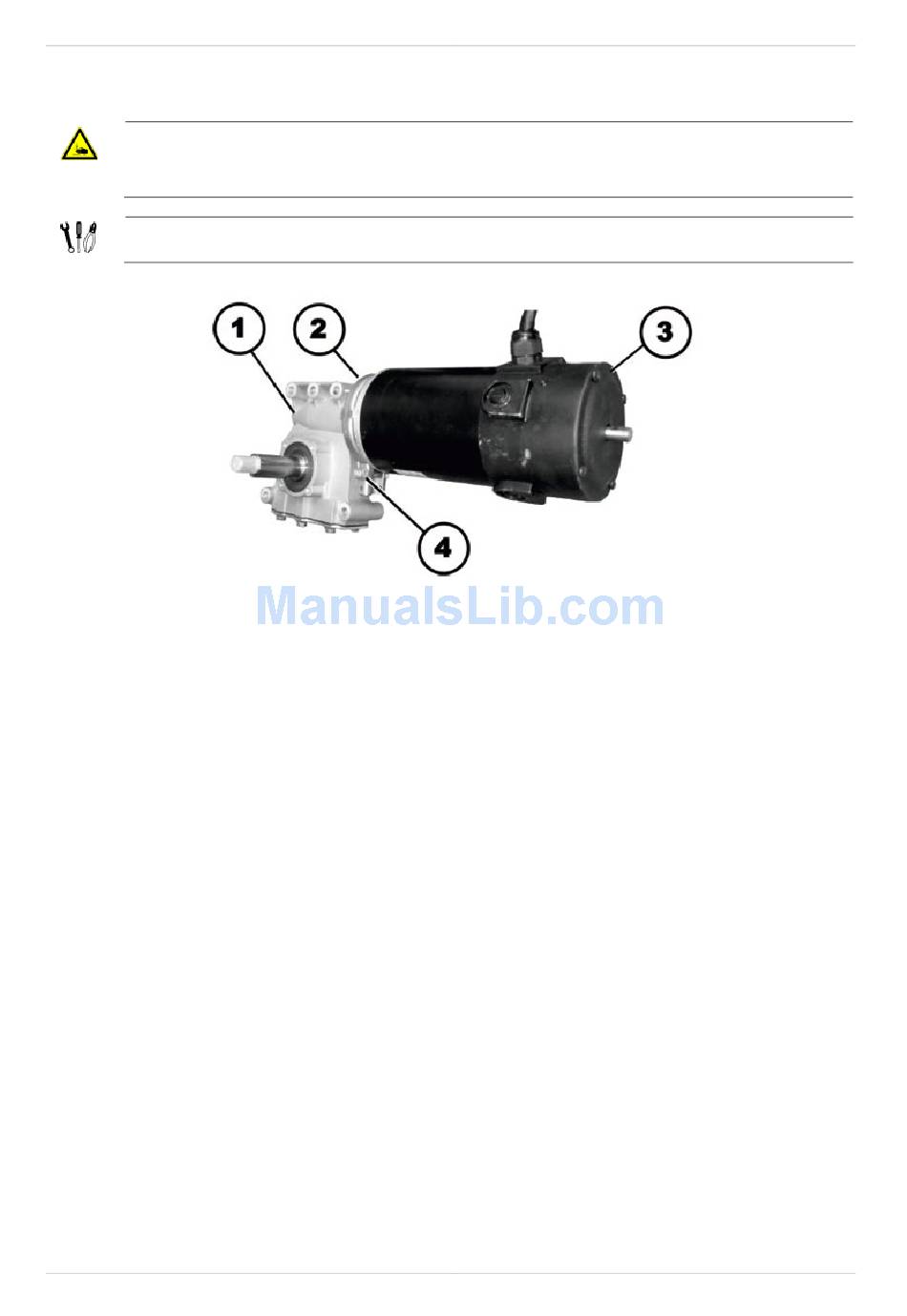

Uninstalling the sealing ring:
·
Uninstall the motor / gearbox unit, as described in chapter 8.10.1.
·
Use the 10 mm socket wrench to loosen and remove the self-securing nuts (4) including the
washers.
·
Remove the carriage bolt, which secures the sealing ring (2).
·
Carefully bend the sealing ring apart and remove it.
Installing the sealing ring:
·
Install the sealing ring so that the square hole for the carriage bolt is on the inside of the
wheelchair.
·
Insert the carriage bolt through the sealing ring.
·
Install the washer and the self-locking nut.
·
Do not tighten the self-locking nut completely, as the motor orientation must be adjusted during
installation.
