SERVICE MANUAL

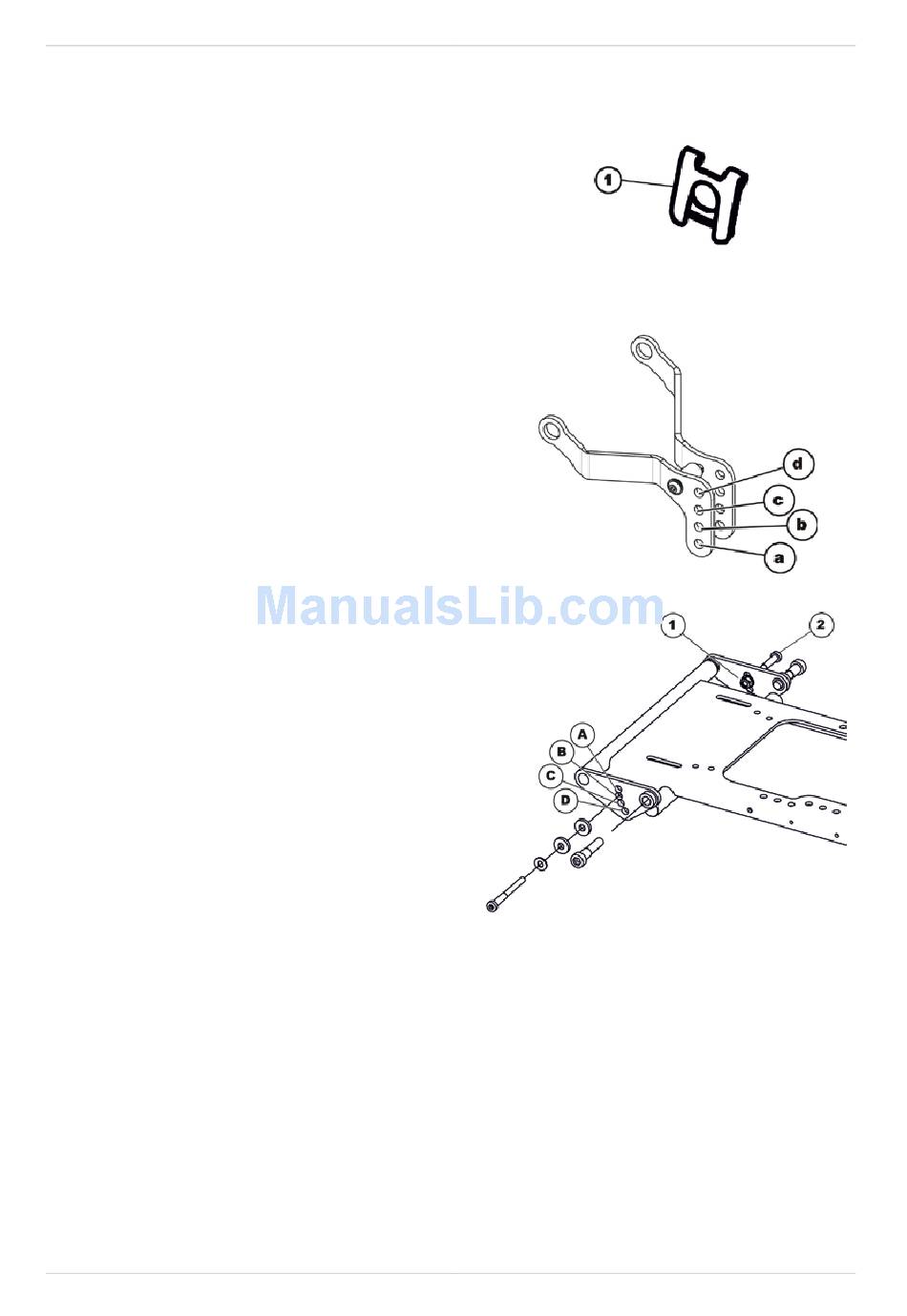

Adjusting the actuator holder on the chassis
Detailed instructions on the actuator can be found
in chapter 8.15.1.
·
Use the screwdriver to remove the SL-
retainer (1) of the lower holding bolt.
·
Place a support under the seat.
·
Pull the holding bolt.
·
Adjust the actuator with holding bolt to the
desired height, according to the table S. 129.
·
Secure the holding bolt with the SL-retainer.
·
Use the open-end wrench to loosen and
remove the self-securing nut (1). Pay
attention to the washer while doing so.
·
Place a support under the seat.
·
Pull the screw (2). Pay attention to the
washers while doing so.
·
Adjust the seat with the screw (2) to the
desired height, according to the above
table.
·
Re-position the nut (1) and tighten.
