BLEEDING THE HYDRAULIC BRAKE SYSTEM/

ADJUSTING THE SELECT LEVER SHIFT ROD

k. Add brake fluid to the proper level.
Refer to "CHECKING THE BRAKE FLUID
LEVEL".
WARNING
Check the operation of the brake after
bleeding the brake system.
L LLL L LLL L L LLL L

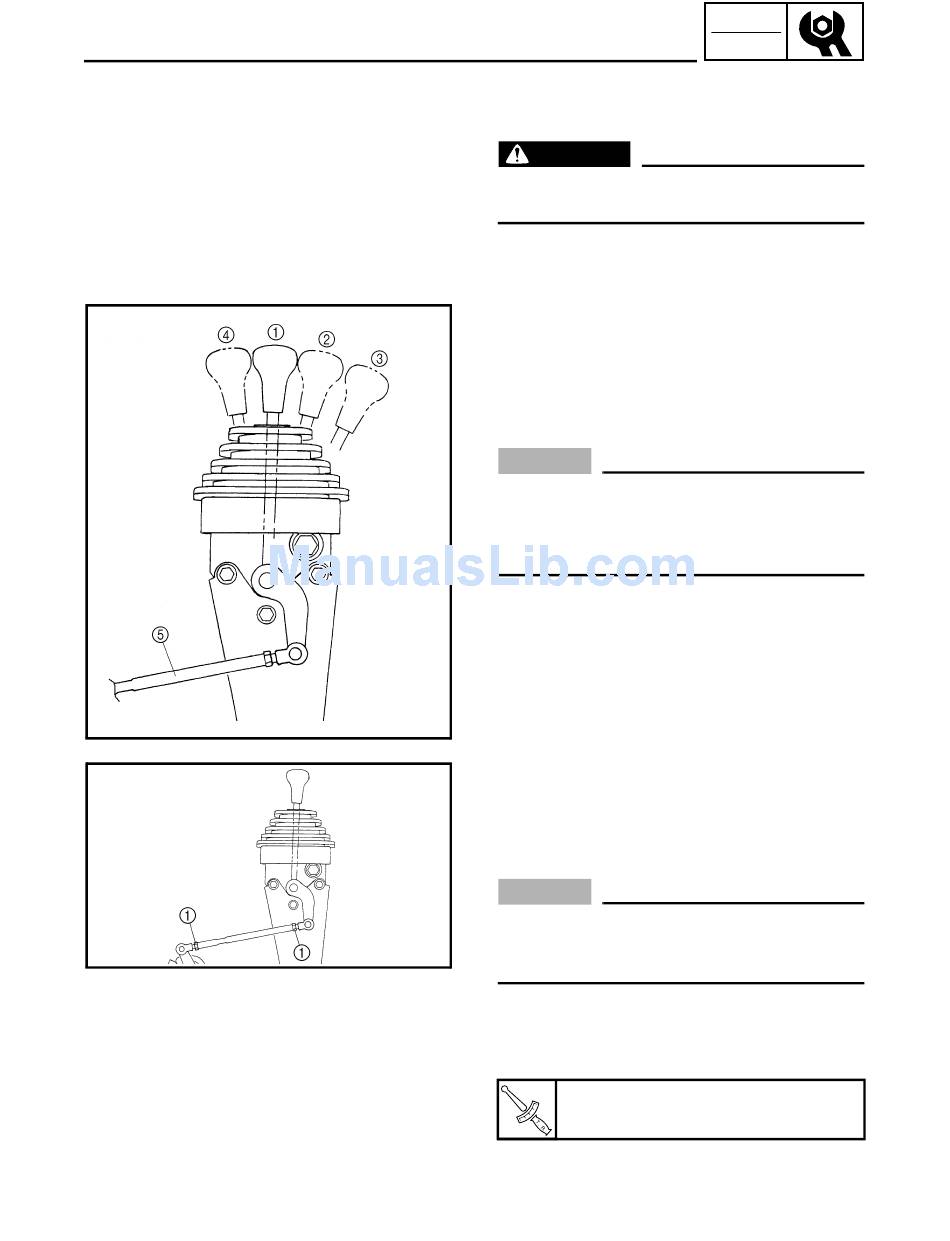

ADJUSTING THE SELECT LEVER SHIFT
ROD
1 Neutral
2 High
3 Low
4 Reverse
5 Select lever shift rod
NOTICE
Before shifting, you must stop the vehicle
and take your foot off the accelerator pedal.
Otherwise, the transmission may be dam-
aged.
1. Adjust:
• select lever shift rod
M MMM M MMM M M MMM M
a. Make sure the select lever is in NEUTRAL.
b. Loosen both locknuts 1.
NOTICE
The select lever shift rod locknut (select
lever side) has left-handed threads. To
loosen the locknut, turn it clockwise.
c. Adjust the shift rod length for smooth and
correct shifting.
d. Tighten the locknuts 1.
Locknut
15 Nm (1.5 m · kg, 11 ft · lb)
L LLL L LLL L L LLL L
3 - 37
