Yamaha YXR70FX Service Manual page 322

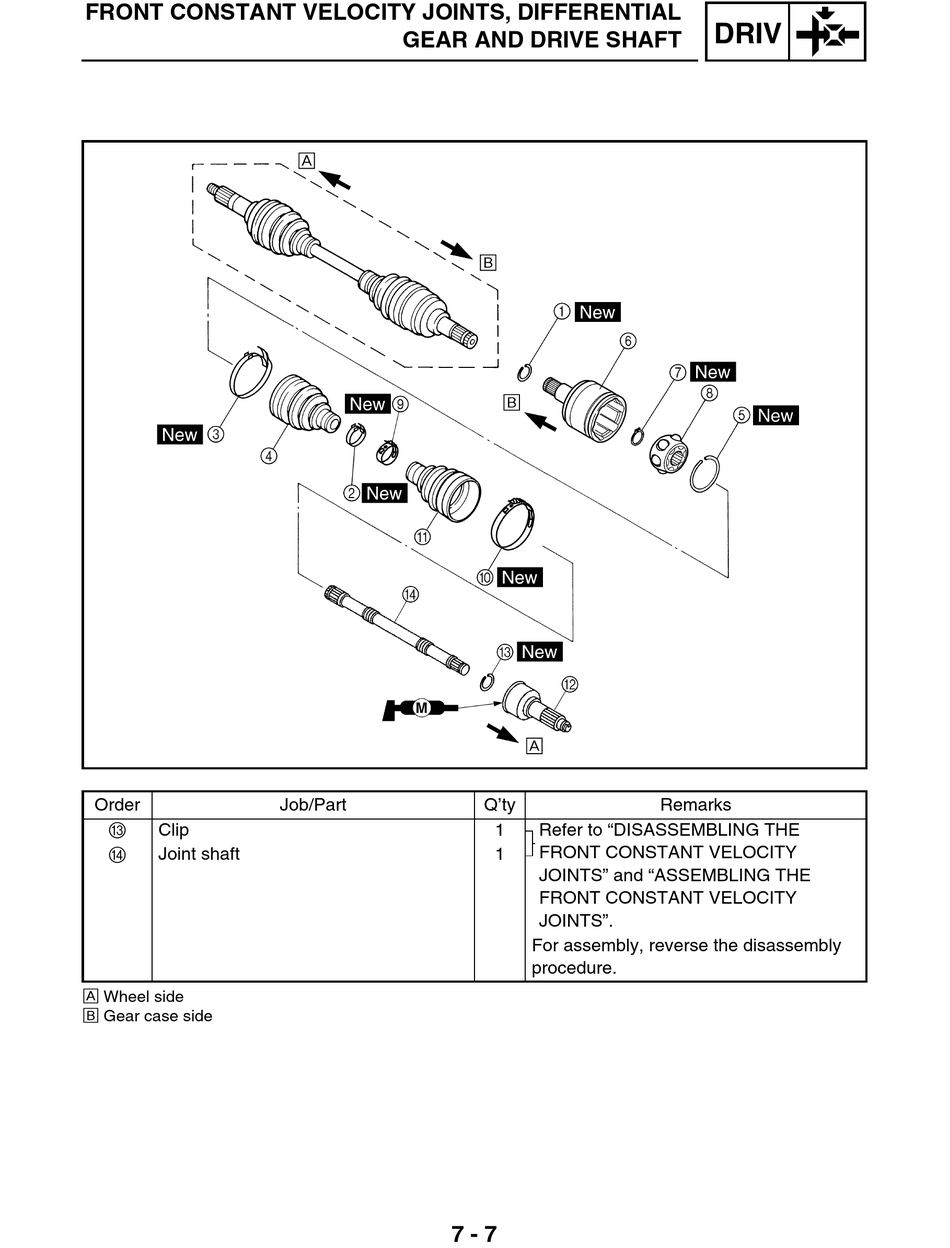

FRONT CONSTANT VELOCITY JOINTS, DIFFERENTIAL
Order
C
Clip
D
Joint shaft
È Wheel side
É Gear case side
GEAR AND DRIVE SHAFT
Job/Part
7 - 7
Q'ty Remarks
1 Refer to "DISASSEMBLING THE
FRONT CONSTANT VELOCITY
1
JOINTS" and "ASSEMBLING THE
FRONT CONSTANT VELOCITY
JOINTS".
For assembly, reverse the disassembly
procedure.
DRIV
