Yamaha YXR70FX Service Manual page 66

SPEC

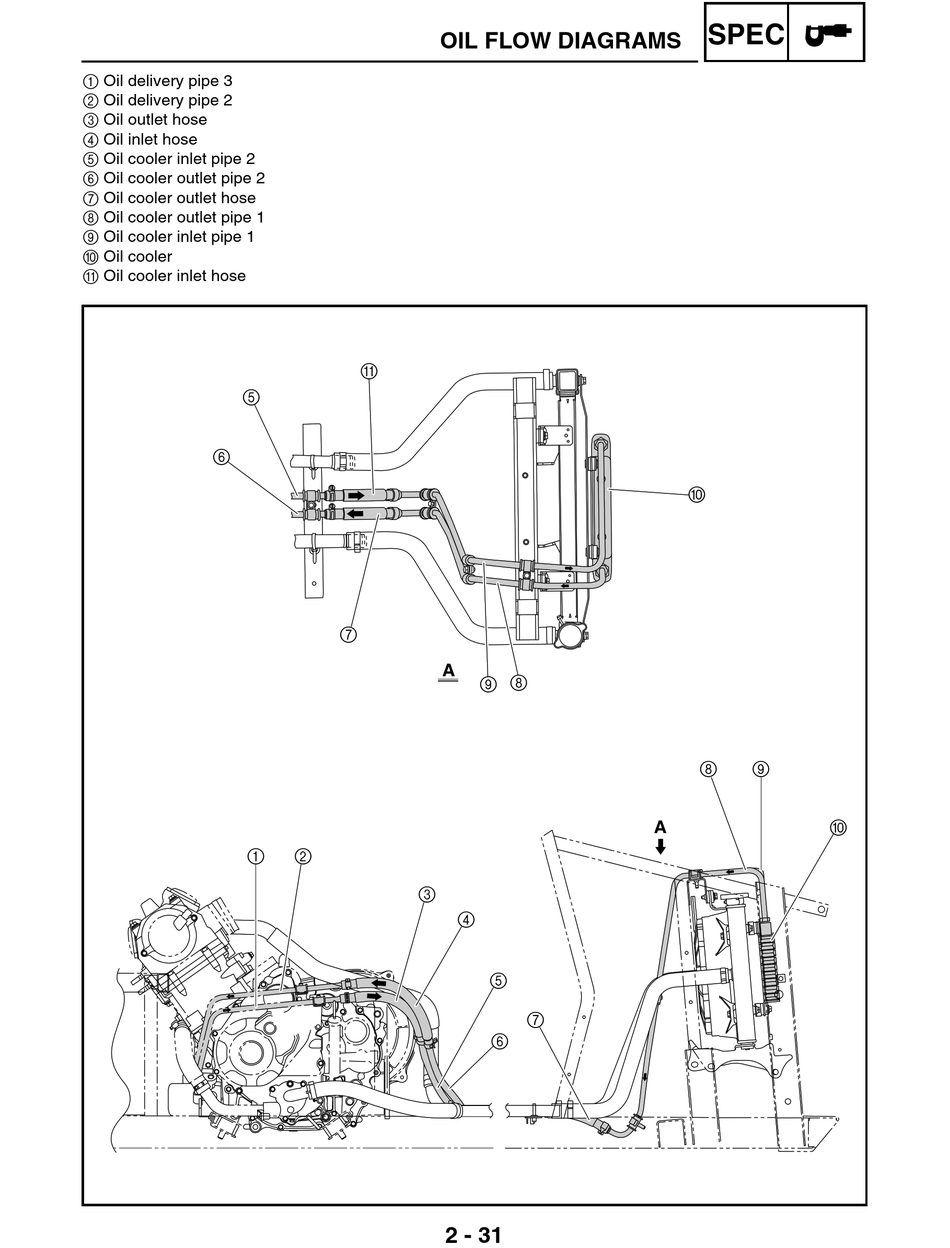

OIL FLOW DIAGRAMS
1 Oil delivery pipe 3
2 Oil delivery pipe 2
3 Oil outlet hose
4 Oil inlet hose
5 Oil cooler inlet pipe 2
6 Oil cooler outlet pipe 2
7 Oil cooler outlet hose
8 Oil cooler outlet pipe 1
9 Oil cooler inlet pipe 1
0 Oil cooler
A Oil cooler inlet hose
A
5
6
0
7
A
9 8
8 9
0
A
1 2
3
4
5
7
6
2 - 31
