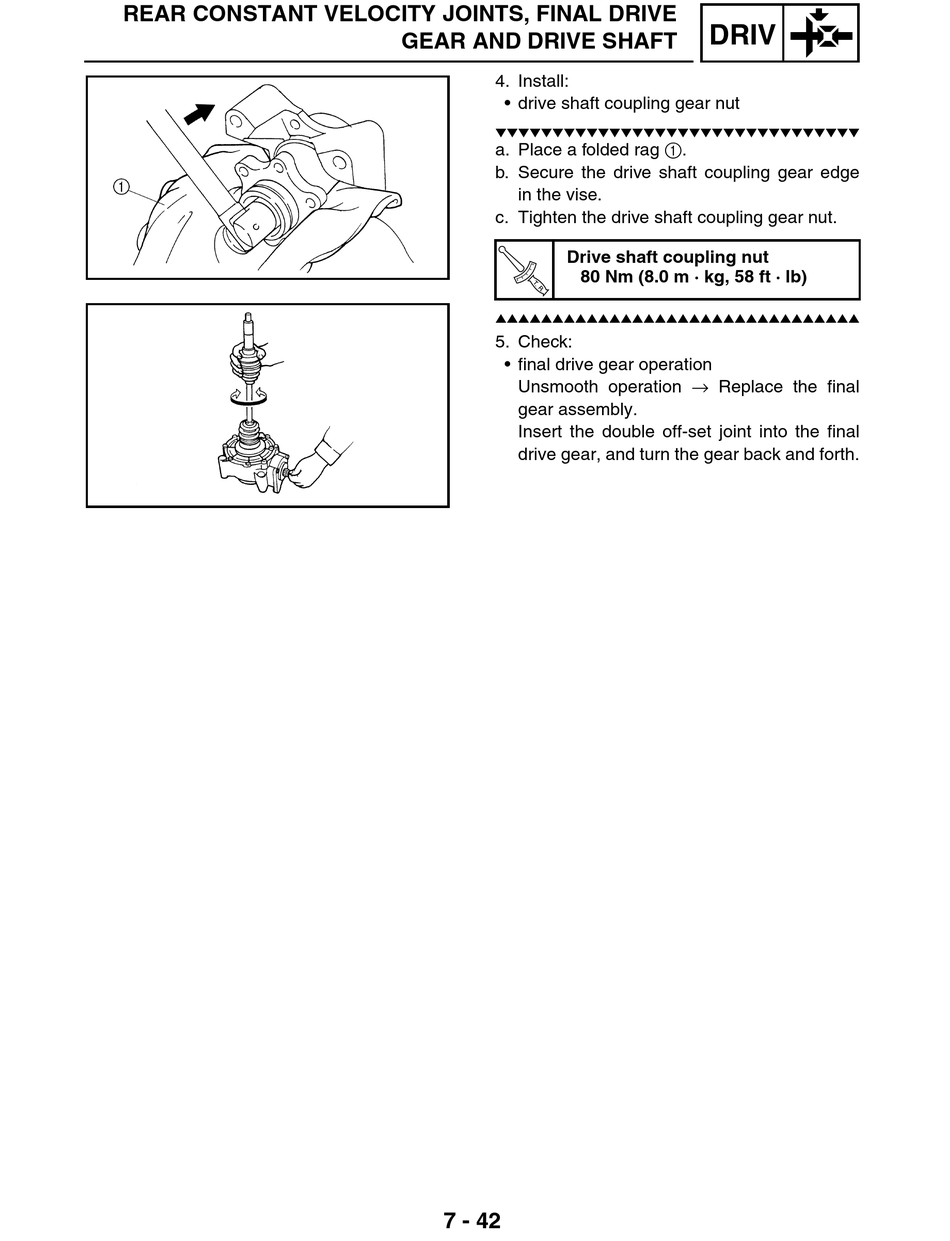

REAR CONSTANT VELOCITY JOINTS, FINAL DRIVE
GEAR AND DRIVE SHAFT
4. Install:
• drive shaft coupling gear nut
M
MMM
M MMM
M
a. Place a folded rag 1.
b. Secure the drive shaft coupling gear edge
in the vise.
c. Tighten the drive shaft coupling gear nut.
Drive shaft coupling nut
L
LLL
L LLL
L
5. Check:
• final drive gear operation
Unsmooth operation → Replace the final
gear assembly.
Insert the double off-set joint into the final
drive gear, and turn the gear back and forth.
7 - 42
DRIV
M MMM
M
M MMM
M
M MMM
M
80 Nm (8.0 m · kg, 58 ft · lb)
L LLL
L
L LLL
L
L LLL
L
M MMM
M
MMM
L LLL
L
LLL
