Yamaha YXR70FX Service Manual page 309

3
Order

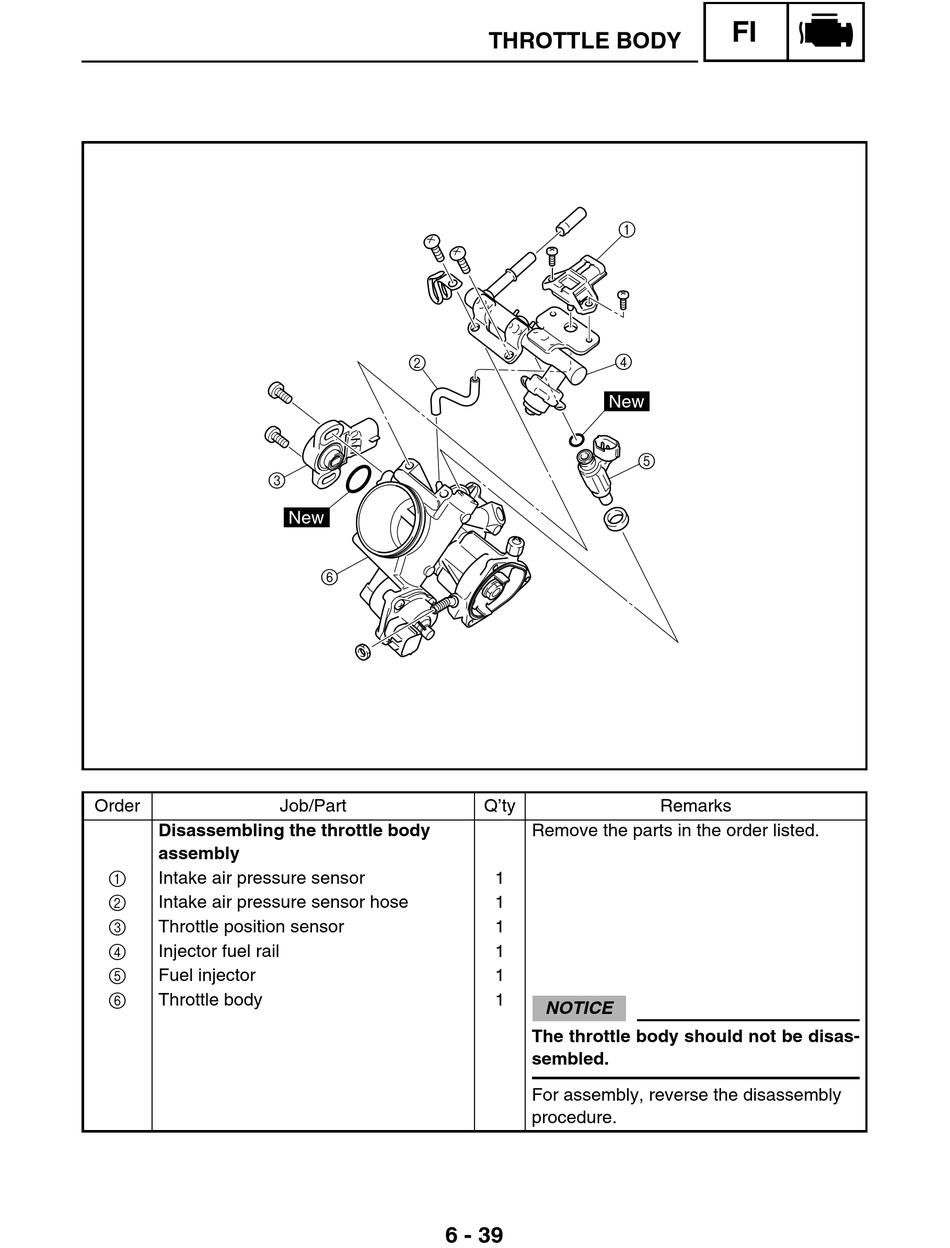

Disassembling the throttle body
assembly
1
Intake air pressure sensor
2
Intake air pressure sensor hose
3
Throttle position sensor
4 Injector fuel rail
5
Fuel injector
6
Throttle body
2
New
6
Job/Part
6 - 39
THROTTLE BODY
1
4
New
5
Q'ty Remarks
Remove the parts in the order listed.
1
1
1
1
1
1
NOTICE
The throttle body should not be disas-
sembled.
For assembly, reverse the disassembly
procedure.
