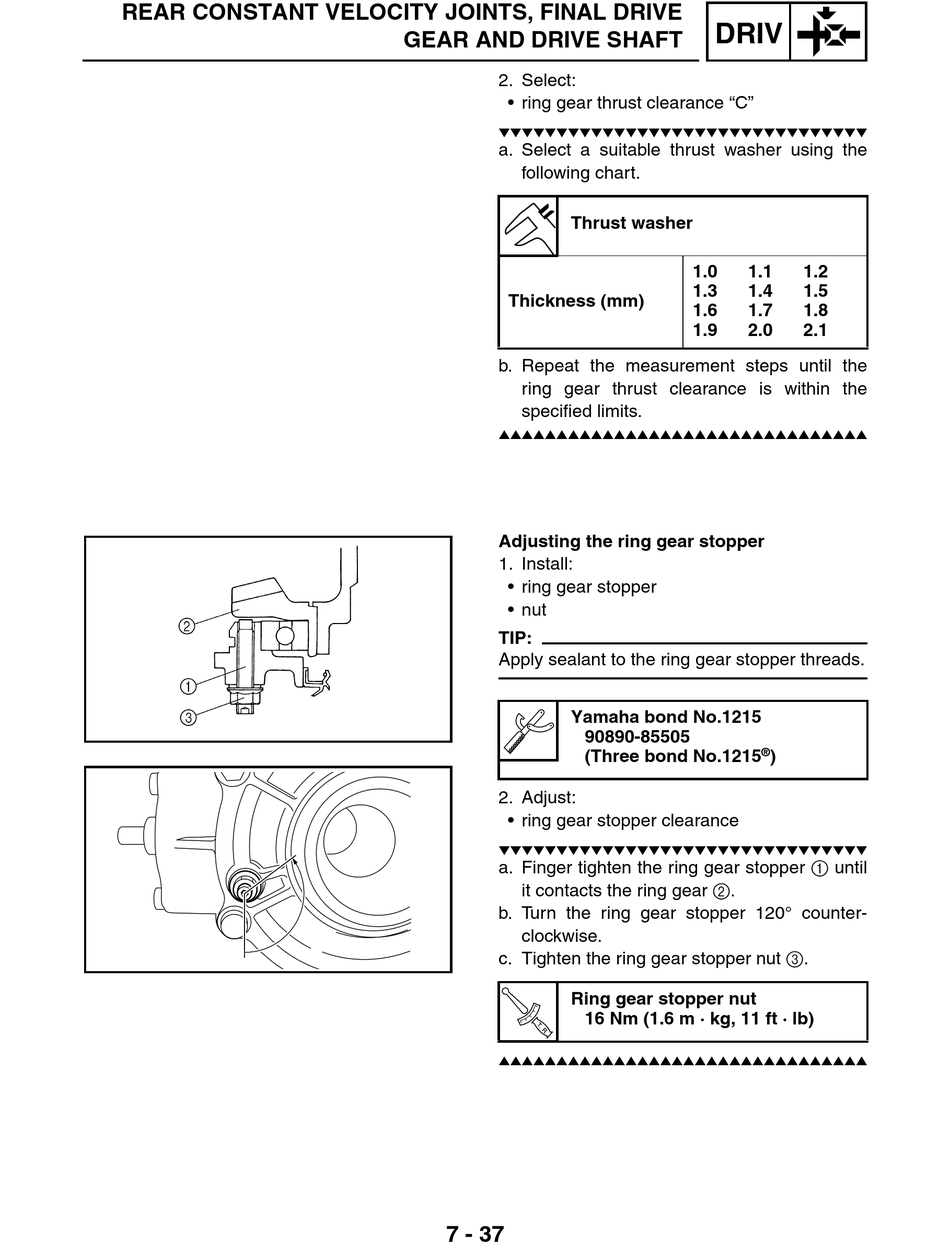

REAR CONSTANT VELOCITY JOINTS, FINAL DRIVE
GEAR AND DRIVE SHAFT
2. Select:
• ring gear thrust clearance "C"
M MMM M MMM M
a. Select a suitable thrust washer using the
following chart.
Thrust washer
Thickness (mm)
b. Repeat the measurement steps until the
ring gear thrust clearance is within the
specified limits.
L LLL L LLL L
Adjusting the ring gear stopper
1. Install:
• ring gear stopper
• nut
TIP:
Apply sealant to the ring gear stopper threads.
Yamaha bond No.1215
2. Adjust:
• ring gear stopper clearance
M MMM M MMM M
a. Finger tighten the ring gear stopper 1 until
it contacts the ring gear 2.
b. Turn the ring gear stopper 120° counter-
clockwise.
c. Tighten the ring gear stopper nut 3.
Ring gear stopper nut
L LLL L LLL L
7 - 37
DRIV
M MMM M M MMM M M MMM M
1.0 1.1
1.3 1.4
1.6 1.7
1.9 2.0
L LLL L L LLL L L LLL L
90890-85505
®
(Three bond No.1215
M MMM M M MMM M M MMM M
16 Nm (1.6 m · kg, 11 ft · lb)
L LLL L L LLL L L LLL L
M MMM M MMM
1.2
1.5
1.8
2.1
L LLL L LLL
)
M MMM M MMM
L LLL L LLL
