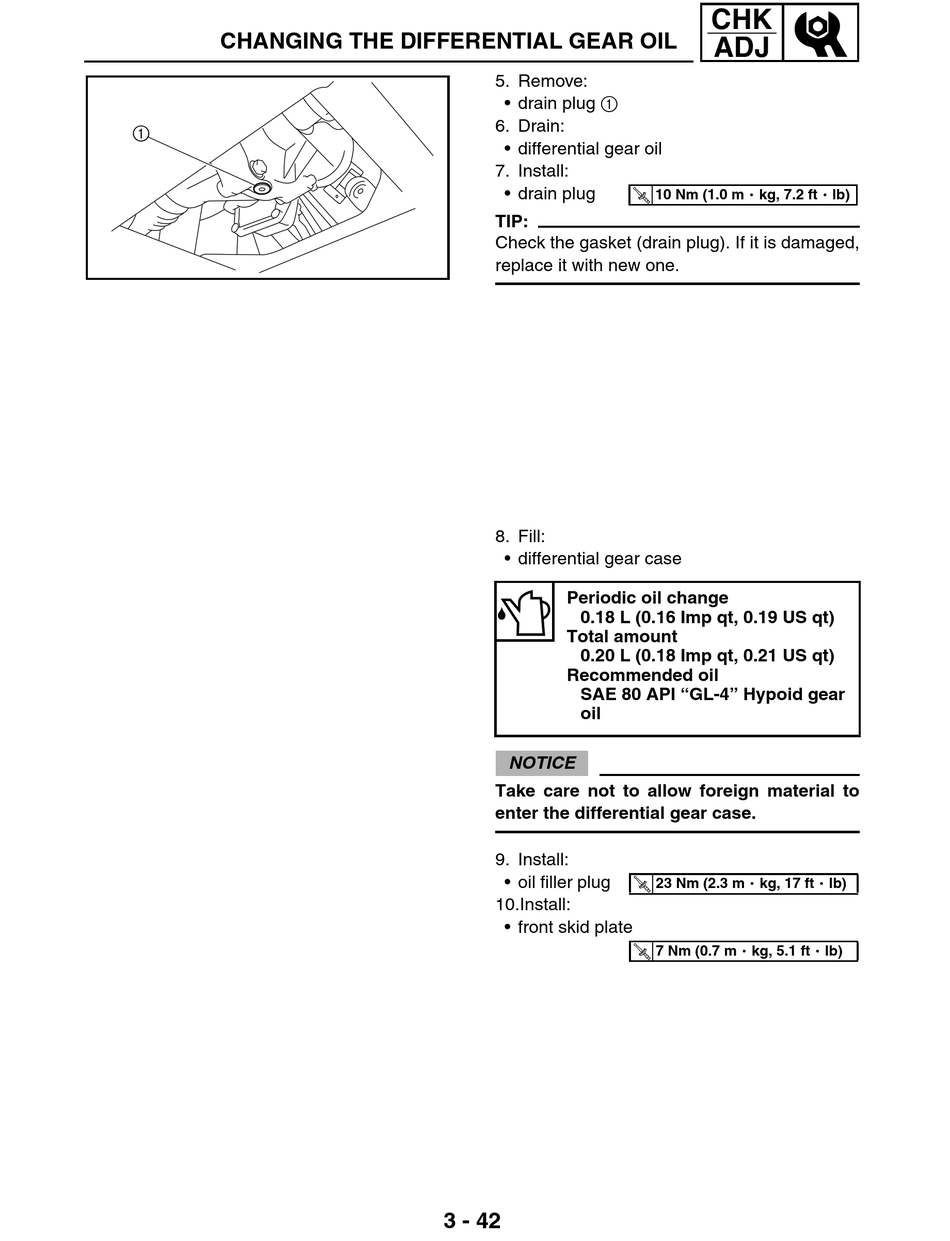

CHANGING THE DIFFERENTIAL GEAR OIL
1
5. Remove:
• drain plug 1
6. Drain:
• differential gear oil
7. Install:
• drain plug
TIP:
Check the gasket (drain plug). If it is damaged,
replace it with new one.
8. Fill:
• differential gear case
Periodic oil change
0.18 L (0.16 Imp qt, 0.19 US qt)
Total amount
0.20 L (0.18 Imp qt, 0.21 US qt)
Recommended oil
SAE 80 API "GL-4" Hypoid gear
oil
NOTICE
Take care not to allow foreign material to
enter the differential gear case.
9. Install:
• oil filler plug
10.Install:
• front skid plate
3 - 42
CHK
ADJ
· ·
10 Nm (1.0 m kg, 7.2 ft lb)
· ·
23 Nm (2.3 m kg, 17 ft lb)
· ·
7 Nm (0.7 m kg, 5.1 ft lb)
