READ THIS MANUAL CAREFULLY!
It contains important safety information.

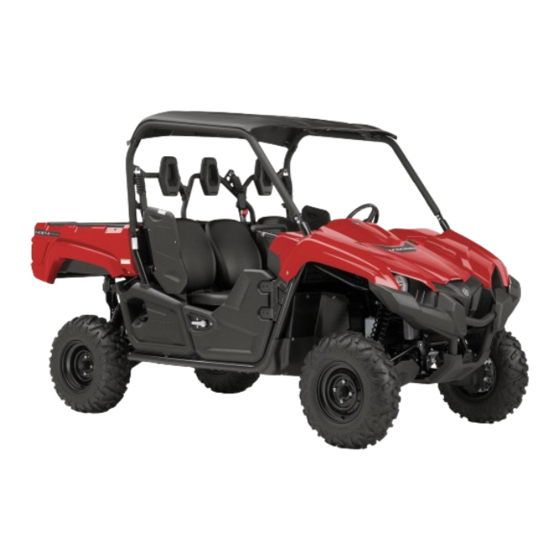

OWNER'S MANUAL
YXM70VDXG/YXM70VDHG
YXM70VPXG/YXM70VPHG
YXM70VPSG
LIT-11626-29-20
B42-F8199-10

Advertisement

Table of Contents
loading

Related Manuals for Yamaha VIKING 2015

Summary of Contents for Yamaha VIKING 2015

  • Page 1 READ THIS MANUAL CAREFULLY! It contains important safety information. OWNER’S MANUAL YXM70VDXG/YXM70VDHG YXM70VPXG/YXM70VPHG YXM70VPSG LIT-11626-29-20 B42-F8199-10...
  • Page 2 EBU31030 Read this manual carefully before operating this vehicle. This manual should stay with this ve- hicle if it is sold.
  • Page 3 Congratulations on your purchase of the Yamaha YXM70VDXG / YXM70VDHG / YXM70VPXG / YXM70VPHG / YXM70VPSG. It represents the result of many years of Yamaha experience in the production of fine sporting, touring, and pace-setting racing vehicles. With the purchase of this Yamaha, you can now appreciate the high degree of craftsmanship and reliability that have made Yamaha a leader in these fields.
  • Page 4 EBU31080 IMPORTANT MANUAL INFORMATION EBU31070 FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERI- OUS INJURY OR DEATH. Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to poten- tial personal injury hazards.
  • Page 5 EBU31111 YXM70VDXG / YXM70VDHG / YXM70VPXG / YXM70VPHG / YXM70VPSG OWNER’S MANUAL ©2015 by Yamaha Motor Corporation, U.S.A. 1st edition, April 2015 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Corporation, U.S.A.

  • Page 6: Table Of Contents

    Drive select lever ........ 4-14 EBU31120 CONTENTS Fuel tank cap........4-14 Doors..........4-15 LOCATION OF THE WARNING AND Seats ..........4-15 SPECIFICATION LABELS ....... 1-1 Adjusting the driver seat position..4-16 Seat belts ........... 4-17 SAFETY INFORMATION ......2-1 Glove compartment ......4-17 Storage compartments ......
  • Page 7 Accelerator pedal ......... 5-7 PERIODIC MAINTENANCE AND Seat belts ..........5-7 ADJUSTMENT .........8-1 Passenger handhold ......5-8 Owner’s manual and tool kit....8-2 Steering ..........5-8 Periodic maintenance chart for the Fittings and fasteners ......5-8 emission control system .....8-4 Instruments, lights and switches..5-8 General maintenance and lubrication Control cables ........5-8 chart............8-6...
  • Page 8 Checking the stabilizer bushes ..8-38 NOISE REGULATION ......11-4 Rear knuckle upper and lower pivot MAINTENANCE RECORD ....11-5 lubrication (left and right)....8-38 YAMAHA MOTOR CORPORATION, Steering shaft lubrication ....8-39 U.S.A. 2015 AND LATER MODEL Wheel removal........8-39 SIDE × SIDE LIMITED Tire replacement ........

  • Page 9: Location Of The Warning And Specification Labels

    Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label is available from your Yamaha dealer.
  • Page 11 Never hold cage. Never hold cage. Do not try to stop a Do not try to stop a YAMAHA MOTOR CORPORATION U.S.A. certifies this ROV vehicle tipover vehicle tipover complies with the American National Standard for Recreational using your arm or leg.
  • Page 12 * Vehicle load is weight of operator, passengers, accessories, cargo, and (if applicable) trailer tongue weight. Do not exceed maximum vehicle load. Gross Vehicle Weight Rating: 2381 lbs (1080 kg) maximum including vehicle, weight of operator, passengers, accessories, cargo, and (if applicable) trailer tongue weight. YAMAHA B42-F1696-00...
  • Page 13 MAX 7.3 INCH accidents. • Secure load to prevent it (185MM) from shifting. YAMAHA 5UG-F151J-00 • Never load more than 490 N (50 kgf)/110 lbf tongue weight on towing bracket. • Do not tow more than...
  • Page 14 ISO3471 Never carry in severe injury or passengers death from loss of YAMAHA MOTOR CORPORATION U.S.A. in cargo bed. control, overturn or 6555 Katella Avenue, Cypress, other accidents. California 90630-5101, U.S.A. 1XD-F4164-00...
  • Page 15 R e ad T i p s G u i d e for t h e Re cr ea t i on a l O f f- Hi g h way Veh i cl e D r i ve r Fo l l ow Al l I n str u cti o n a nd Wa r n i ng s YAMAHA 1XD-F1568-00 B e P r e p a r e d A d j u s t , l o ck a n d n eve r r e m o ve h a n d h o l d .

  • Page 16: Safety Information

    EBU32931 Be a responsible owner As the vehicle’s owner, you are responsible for the safe and proper operation of your Yamaha Viking. While understanding all parts of this manual are important for vehicle ownership, be sure to read this chapter and the instructions in Chapter 7 before operating your Yamaha Viking. Also use these two chapters and the labels on the vehicle to instruct new operators and passengers.
  • Page 17 Before you operate your Yamaha Viking  Prepare yourself and your passengers: • This vehicle is intended for use only by an operator 16 or older with a valid motor vehicle li- cense. DRIVER UNDER • This vehicle is designed to carry the driver and two passengers. Never carry passengers in the cargo bed.
  • Page 18  Secure cargo so that it will not shift – a loose load could change handling unexpectedly or be thrown forward and strike occupants. While using your Yamaha Viking  Keep your body completely inside the vehicle at all times. Keep both hands on the steering wheel.
  • Page 19  Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control, including rollovers. The Viking has higher ground clearance and other features to handle rug- ged terrain, and, as a result, can overturn in situations where some other vehicles may not. ...
  • Page 20  If you think or feel that the vehicle may tip or roll, keep your body completely inside the protec- tive structure of the vehicle: • Brace yourself by pressing your feet firmly on the floorboard and keep a firm grip on the steering wheel or passenger handhold.
  • Page 21 Many companies with no connection to Yamaha manufacture parts and accessories or offer oth- er modifications for Yamaha vehicles. Yamaha is not in a position to test the products that these aftermarket companies produce. Therefore, Yamaha can neither endorse nor recommend the use of accessories not sold by Yamaha or modifications not specifically recommended by Yamaha, even if sold and installed by a Yamaha dealer.
  • Page 22 Aftermarket parts, accessories, and modifications While you may find aftermarket products similar in design and quality to genuine Yamaha Acces- sories, recognize that some aftermarket accessories or modifications are not suitable because of potential safety hazards to you or others. Installing aftermarket products or having other mod- ifications performed to your Viking that change any of the vehicle’s design or operation charac-...

  • Page 23: Description

    EBU31170 DESCRIPTION EBU31180 Left view 14 13 1. Front shock absorber assembly 11.Spark plug 2. Radiator cap 12.Cargo bed release lever 3. Brake fluid reservoir 13.Storage compartment (for YXM70VPSG) 4. Driver seat 14.Door 5. Shoulder bolster 6. Driver seat belt 7.

  • Page 24: Right View

    EBU31190 Right view 1. Engine oil dipstick 2. Passenger seat belt 3. Passenger seat 4. Air filter 5. Battery 6. Fuses 7. Headlight 8. Coolant reservoir 9. Storage compartment 10.Fuel tank cap 11.Oil filter cartridge...

  • Page 25: Controls And Instruments

    EBU31200 Controls and instruments 5 6,7 1. Light switch 9. Accelerator pedal 2. On-Command drive knob 10.Brake pedal 3. Steering wheel 11.Multi-function meter unit 4. Main switch 12.Passenger handhold 5. Parking brake lever 13.Glove compartment 6. Helmet indicator light 14.Auxiliary DC jack 7.

  • Page 26: Instrument And Control Functions

    EBU31211 EBU31230 INSTRUMENT AND CONTROL “ ” (on): FUNCTIONS All electrical circuits are supplied with power. The key cannot be removed. EBU31220 Main switch The helmet indicator light comes on and stays on while the key is turned to “ ”...

  • Page 27: Indicator Lights And Warning Lights

    EBU31260 Indicator lights and warning lights 1. Helmet indicator light “ ” 2. Seat belt indicator light “ ” 1. On-Command differential gear lock indicator light “DIFF. EBU31270 LOCK” Low-range indicator light “L” 2. Low-range indicator light “L” This indicator light comes on when the drive 3.
  • Page 28 The On-Command differential gear lock EBU31290 Neutral indicator light “N” indicator “ ” and the On-Command differen- This indicator light comes on when the drive tial gear lock indicator light “DIFF. LOCK” select lever is in the “N” position. come on when the On-Command drive knob “2WD/4WD/DIFF LOCK”...
  • Page 29 When this occurs, be checked by turning the key to “ ” (on). If have a Yamaha dealer check the self-diagno- the warning light does not come on initially sis system. (See page 4-10 for an explanation when the key is turned to “...
  • Page 30 If the steering load is too heavy (i.e., exces- the indicator light remains on after the driver sive steering use when the Viking is traveling seat belt is properly latched, have a Yamaha at a slow speed), the power assist is reduced dealer check the electrical circuit.

  • Page 31: Multi-Function Meter Unit

     a clock EBU31380 Multi-function meter unit  an hour meter (which shows the total time the engine has been running)  a voltage display (which shows the battery voltage)  a fuel meter  a self-diagnosis device Odometer and tripmeter modes 1.
  • Page 32 Pushing the “SELECT” button switches the Clock, hour meter and voltage display display between the odometer mode “ODO” modes and the tripmeter modes “TRIP A” and “TRIP B” in the following order: ODO → TRIP A → TRIP B → ODO To reset a tripmeter, select it by pushing the “SELECT”...
  • Page 33 To set the clock Voltage display mode 1. Set the display to the clock mode. 2. Push the “SELECT” button and “RESET” button together for at least three sec- onds. 3. When the hour digits start flashing, push the “RESET” button to set the hours. 4.
  • Page 34 (empty) as the fuel level decreases. When the charging circuit or the battery may be “E” segment disappears and the fuel level faulty. If this occurs, have a Yamaha dealer warning indicator flashes, refuel as soon as check or repair the vehicle.

  • Page 35: Light Switch

    Set the switch to “ ” to turn on the low code, note the code number, and then have a beam and the taillights. Yamaha dealer check the vehicle. Set the switch to “ ” to turn on the high beam and the taillights.

  • Page 36: On-Command Drive Knob "2Wd/4Wd/Diff Lock

    EBU31400 Set the switch to “ ” to turn off the head- On-Command drive knob lights and taillights. “2WD/4WD/DIFF LOCK” ECB02060 NOTICE Do not use the headlights with the engine turned off for an extended period of time. The battery may discharge to the point that the starter motor will not operate properly.

  • Page 37: Accelerator Pedal

     “DIFF LOCK” (four-wheel drive with the dif- ferential gear locked): Power is supplied to the rear and front wheels with the differen- tial gear locked. Unlike the “4WD” mode, all wheels turn at the same speed regardless of traction. EBU31410 Accelerator pedal Press the accelerator pedal down to increase...

  • Page 38: Parking Brake Lever

    1. Brake pedal 1. Parking brake lever 2. Release button EBU34750 Parking brake lever The parking brake lever is located at the right  Spring tension helps return the lever to the side of the steering wheel. Setting the parking released position.

  • Page 39: Drive Select Lever

    EBU31440 EBU31450 Drive select lever Fuel tank cap The drive select lever is used to shift the vehi- cle into the low, high, neutral, and reverse po- sitions. (Refer to page 6-3 for the drive select lever operation.) 1. Fuel tank cap To open Remove the fuel tank cap by turning it coun- terclockwise.

  • Page 40: Doors

    EBU31460 Doors To open a door, pull the latch outward. To close a door, push or pull the door inward un- til it is securely latched. Be sure the door is SECURELY LATCHED AFTER CLOSING IT. 1. Driver seat cushion 2.

  • Page 41: Adjusting The Driver Seat Position

    Adjust the driver seat position as follows. 1. Remove the driver seat cushion. (See the previous section “Seats”.) 2. Remove the bolts. EBU31480 Adjusting the driver seat position The driver seat can be adjusted to one of three positions to suit the driver’s preference. 1.

  • Page 42: Seat Belts

    EBU31490 Seat belts This vehicle is equipped with three-point seat belts for the driver and passengers. Always wear the seat belts properly while riding in the vehicle. See page 7-5 for more information. 4. Install the bolts, and then tighten the bolts to the specified torque.

  • Page 43: Storage Compartments

    When storing any documents in the glove compartment, be sure to wrap them in a plas- tic bag so that they will not get wet. When washing the vehicle, be careful not to let any water enter the glove compartment. ECB02071 NOTICE To protect from damage, do not put metal...
  • Page 44 When storing any documents in the storage compartments, be sure to wrap them in a plastic bag so that they will not get wet. When washing the vehicle, be careful not to let any water enter the storage compartments. ECB02241 NOTICE To protect from damage, do not put metal items, like tools, or sharply edged items di-...

  • Page 45: Cup Holders

    1. Storage compartment cover 1. Drain plug EBU31520 Maximum load limit: Cup holders Storage compartment under the driver seat: Be sure to tightly close the cap of any plastic 4.5 kg (10 lb) bottle before placing it in a cup holder. A drain plug is fitted at the bottom of this stor- Some plastic bottles may not fit into the cup age compartment.

  • Page 46: Cargo Bed

    EWB03240 WARNING  Never ride with any open or glass con- tainers in the cup holders; otherwise, the contents may spill and the glass contain- ers may be thrown about and break, and possibly injure people in the vehicle dur- ing sudden braking or an accident.
  • Page 47 Opening and closing the tailgate 1. Tailgate 2. Cargo hook 1. Tailgate 3. Cargo bed 2. Latch ECB02100 Maximum load limit: 272.0 kg (600 lb) NOTICE The tailgate is not designed to hold heavy For additional loading information, see page loads when open.

  • Page 48: The Front And Rear Shock Absorber Assemblies

    To close To lower Lift the tailgate to the original position, and With hands and fingers clear of pinch points, then hook the latches. lower the cargo bed slowly to its original po- sition and be sure it is locked into place. Lifting and lowering the cargo bed WARNING! Keep hands, body, and other people away from pinch points when low-...

  • Page 49: Trailer Hitch Bracket And Receiver

    The auxiliary DC jack dard trailer hitch. Trailer towing equipment can be used for suitable work lights, radios, can be obtained at a Yamaha dealer. (See etc. The auxiliary DC jack should only be used page 6-7 for precaution information.) when the engine is running and the headlights are turned off.
  • Page 50 ECB02250 NOTICE  Do not use accessories requiring more than the stated maximum capacity. Do- ing so may overload the circuit and cause the fuse to blow.  If accessories are used without the en- gine running, the battery may discharge. ...

  • Page 51: For Your Safety - Pre-Operation Checks

    Do not operate the vehicle if you find any problem. If a problem can- not be corrected by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:...
  • Page 52 ITEM ROUTINE PAGE • Check coolant level in reservoir. Coolant 5-6, 8-20 • Fill with coolant if necessary. Final gear oil/Differen- • Check for leakage. 5-6, 5-7, 8-16, 8-18 tial gear oil Accelerator pedal • Check for proper accelerator pedal operation. Seat belts •...

  • Page 53: Front And Rear Brakes

    Apply the brakes firmly for one minute. If there  Check that there is no free play in the brake is any leakage, have the vehicle inspected by pedal. If there is free play, have a Yamaha a Yamaha dealer. dealer check the brake system. (See page 8-35.)
  • Page 54 Your Yamaha engine has been designed to lights of water heaters and clothes dry- use regular unleaded gasoline with a pump ers.

  • Page 55: Engine Oil

    If you carry a portable fuel container in the do not mix any chemical additives. Do bed of your Yamaha Viking, be sure to secure not use oils with a diesel specification of it with the cap tightened before driving the ve- “CD”...

  • Page 56: Coolant

     Make sure that no foreign material en- ECB02120 NOTICE ters the crankcase. Hard water or salt water is harmful to the engine. You may use soft water if you can- Recommended engine oil type and quantity: not get distilled water. See page 10-1.

  • Page 57: Differential Gear Oil

    To help make sure your restraint systems are spring back to the idle position fully when re- working properly after a crash, have them in- leased. Have a Yamaha dealer repair as nec- spected and any necessary replacements essary for proper operation.

  • Page 58: Passenger Handhold

    Take the vehicle Use the tire pressure gauge to check and ad- to a Yamaha dealer or refer to the Service just tire pressures when the tires are cold. Tire Manual for correct tightening torque.
  • Page 59 injury or death from loss of control or roll- Recommended tire pressure: over. Tire pressure below the minimum Vehicle load: specified could also cause the tire to dis- 0 - 300 kg (0 - 661 lb) Front: lodge from the rim under severe riding 75.0 kPa (0.750 kgf/cm², 11 psi) conditions.
  • Page 60 Tire wear limit Maximum vehicle load*: When the tire groove decreases to 3 mm 411.0 kg (906 lb) (0.12 in) due to wear, replace the tire. * Total weight of operator, passengers, ac- cessories, cargo, and (if applicable) trailer tongue weight The tire pressure gauge is included as stan- dard equipment.

  • Page 61: Operation

    If any abnormality is noticed EBU31890 during this period, consult a Yamaha dealer. Engine break-in There is never a more important period in the 0–10 hours:...

  • Page 62: Starting The Engine

    After break-in: light should come on. If the neutral indi- The vehicle may now be operated normally. cator light does not come on, ask a Yamaha dealer to inspect the electric EBU31900 Starting the engine circuit.  The engine can be started in any gear if 1.

  • Page 63: Drive Select Lever Operation And Reverse Driving

    starter damage could occur. Wait at least 2. Apply the brake pedal, then shift by mov- 5 seconds between each operation of the ing the drive select lever along the shift electric starter to let it cool. guide. Make sure that the drive select le- [ECB02140] Do not turn the key to the “...
  • Page 64 5. Check behind the vehicle for people or light should be on. If the light does not obstacles, and then release the brake come on, ask a Yamaha dealer to in- pedal. spect the reverse indicator light electri- 6. Press the accelerator pedal gradually and cal circuit.

  • Page 65: On-Command Drive Knob

    EBU31921 On-Command drive knob The vehicle handles differently in each of the drive modes (“2WD”, “4WD” and “DIFF LOCK”). For example, the vehicle requires more effort to turn in “DIFF LOCK” than in “2WD”. Always stop the vehicle before changing the position of the On-Command drive knob. The meter display changes according to the selected drive mode.
  • Page 66  When the knob is set to “DIFF LOCK” or “4WD”, the differential gear lock indicator and indica- tor light will flash until the differential gear is completely locked or unlocked.  When the indicator and indicator light are flashing, turning the steering wheel back and forth will help the differential gear lock to engage or disengage.

  • Page 67: Parking

     Do not exceed the Maximum Loading EBU31930 Parking Limits for the vehicle (see “MAXIMUM When parking, stop the engine and shift the LOADING LIMIT” in this section and ve- drive select lever into the neutral position. Ap- hicle labeling). ply the parking brake to help prevent the ve- ...
  • Page 68 Choose a trailer hitch drawbar designed for Operating when loaded with cargo or tow- use with a 5 cm (2 in) receiver. (See page 4-24 ing a trailer for more information.) Drive more slowly than you would without a load. The more weight you carry, the slower You can measure tongue weight with a bath- you should go.
  • Page 69 Pulling something other than a trailer Yamaha recommends that loads be trans- ported in the bed or in a trailer. If you need to move an object a short distance use a winch and follow the winch manufacturer’s instruc- tions.

  • Page 70: Basic Guide For Safe Use

    EBU31950 EBU32970 KNOW YOUR VEHICLE BASIC GUIDE FOR SAFE USE This off-road vehicle will handle and maneuver differently from cars, ATVs, go-carts, golf-cars EBU31960 and grounds-keeping vehicles. The Viking has As a Viking owner you are responsible for the higher ground clearance and other features to safe and proper operation of this vehicle.
  • Page 71  Do not drive after using drugs or alcohol. ture and seat belts, to help protect occu-  Remove the ignition key when the vehicle is pants, but the best way to avoid injuries is to avoid accidents. There is a risk of injury or not in use to prevent unauthorized use of death in any accident, even with these safety the machine.
  • Page 72  Your passengers must be able to place you may put yourself and others at greater both feet on the floorboard while seated risk of serious injury or death. You are re- upright with their backs against the back- sponsible for any such changes to the ve- rests.
  • Page 73 Protective structure The vehicle cage/frame provides a protective structure that helps limit intrusions by branch- es or other objects and may reduce your risk of injury in accidents. The protective structure will not protect occupants in all rollovers or accidents. Body parts outside of vehicle can be struck by passing objects or crushed during vehicle rollover.
  • Page 74 Seat belts main in the vehicle – the doors and passenger Seat belts should be worn by the driver and handhold are not a substitute for using a seat passengers. The driver must be sure that the belt. passengers are belted before driving. A crash can damage the restraint systems in ...
  • Page 75 To wear the seat belt properly, do the follow- 3. Push the latch plate into the buckle until it ing: clicks. Pull up on the latch plate to make 1. Hold the latch plate as you pull the belt sure it is secure. across your lap and chest.
  • Page 76 5. Position the shoulder belt over your shoulder and across your chest. The shoulder belt should fit against your chest. If it is loose, pull the belt out all the way and then let it retract. 6. Check if the seat belt shoulder position suits the size of the driver and passen- gers.
  • Page 77 hand on the door during operation. Your hand The driver should make sure the passengers or arm may be struck by objects or crushed are holding onto the handhold with both against outside objects or the ground during hands before operating the vehicle. a rollover.
  • Page 78 2. Slide the handhold to the desired position and align the holes in the handhold bar with the holes in the handhold supports. Adjust the handhold position as follows. 1. Remove the locking pins. 1. Handhold bar 2. Handhold support 3.
  • Page 79 1. Wire loop Floorboard Seat and shoulder bolsters The floorboard allows you to brace your feet, The seats and shoulder bolsters are designed which helps you keep your body in the vehicle to help keep you in the vehicle. Do not put in the event of an accident or rollover.
  • Page 80 ly jerk in one direction or back and forth as the CORRECT GRIP EXAMPLE tires and vehicle respond to the obstacle. This quick motion could injure your thumbs or wrist if your thumbs or hand(s) are inside the steering wheel. Grip the steering wheel so that your thumbs will not be hit by the spokes.

  • Page 81: Learning To Operate Your Vehicle

     Approved motorcycle helmet that fits prop- EBU31980 LEARNING TO OPERATE YOUR VEHI- erly  Eye protection (goggles, helmet face shield, or protective eyewear) Personal protective equipment  Over-the-ankle boots, gloves, long-sleeved shirt or jacket, and long pants An approved helmet and other personal pro- tective equipment can help in a variety of ways, including: ...
  • Page 82 Practice for new Yamaha Viking users You should become familiar with the perfor- mance characteristics of the vehicle in a large, flat area that is free of obstacles and other vehicles. Practice controlling the accel- erator pedal, brakes, steering, and drive se- lect lever.
  • Page 83 Getting ready to ride If you think or feel that the vehicle may tip or Perform the Pre-Operation Checks on page roll, keep your body completely inside the 5-1. Follow the instructions starting on page protective structure of the vehicle: ...
  • Page 84 Avoid higher speeds and sudden or hard ac- the vehicle down after you take your foot off celeration until you are thoroughly familiar the accelerator. Engine braking is more no- with the operation of your vehicle. Avoid sud- ticeable in four-wheel drive. Application of ve- den or hard acceleration in any turn.
  • Page 85 Parking on a flat area 5. Block the front and rear wheels with When parking on a flat area, stop the engine rocks or other objects. and shift the drive select lever into the neutral Loading position. Apply the parking brake to help pre- The total weight of operator, passengers, ac- vent the vehicle from rolling.
  • Page 86 Your Yamaha Viking has higher ground clear- to see far enough ahead of you. Use common ance and other features to handle rugged ter- sense and remember that some hills are too rain, and as a result, can overturn in situations steep for you to climb or descend.
  • Page 87 side of a hill, which increases your risk of roll- slow your descent. Release the brake and be- over. Practice first on gentle slopes before at- gin to coast down the hill. Use engine braking tempting steeper hills. Always check the as much as possible, gently applying the terrain carefully before attempting any hill.
  • Page 88 If you are sliding or skidding, try to steer in the Pavement direction the vehicle is sliding, to regain con- This vehicle is designed for off-road use only. trol. For example, if you feel the back of the Avoid paved surfaces. Turn gradually and go vehicle start to slide to your right, steer to the slowly if you must drive on pavement.
  • Page 89 Wet brakes may have reduced effectiveness. If you feel the vehicle begin to slide sideways After leaving the water, test your brakes. If or fishtail during a turn, steer into the direction necessary, apply the brakes several times to of the slide if possible, to regain directional let friction dry out the linings.
  • Page 90 muffler or exhaust pipe, or next to other hot If there is any question about your ability to parts. Check under the vehicle after operating maneuver safely over the obstacle, you in areas where combustible materials may should turn around if the ground is flat and have collected.

  • Page 91: Periodic Maintenance And Adjustment

    To avoid death during service or while using the ve- possible burns, let brake components cool hicle. If you are not familiar with vehicle before touching them. service, have a Yamaha dealer perform the service.

  • Page 92: Owner's Manual And Tool Kit

    EBU33060 Owner’s manual and tool kit You are recommended to put this owner’s manual in the vinyl bag and always carry it in the glove compartment as shown. Put the owner’s tool kit and tire pressure gauge under the right passenger seat. 1.
  • Page 93 If you do not have a torque wrench available during a service operation requiring one, take your vehicle to a Yamaha dealer to check the torque settings and adjust them as neces- sary.

  • Page 94: Periodic Maintenance Chart For The Emission Control System

    However, keep in mind that if the vehicle isn’t used for a long period of time, the month maintenance intervals should still be followed.  Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills.
  • Page 95 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1200 2400 2400 4800 first (mi) (200) (750) (1500) (1500) (3000) hours • Check for leakage. √ √ √ Exhaust system • Tighten if necessary. • Replace gasket(s) if necessary. √ √ √...

  • Page 96: General Maintenance And Lubrication Chart

    EBU32110 General maintenance and lubrication chart INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1200 2400 2400 4800 first (mi) (200) (750) (1500) (1500) (3000) hours • Check coolant leakage. √ √ √ √ √ • Repair if necessary. Cooling system •...
  • Page 97 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1200 2400 2400 4800 first (mi) (200) (750) (1500) (1500) (3000) hours • Check operation and free play/brake pad wear. √ √ √ √ √ Parking brake • Correct if necessary. Replace pads if worn to the limit.
  • Page 98 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1200 2400 2400 4800 first (mi) (200) (750) (1500) (1500) (3000) hours Rear upper and √ √ √ 17 * lower knuckle • Lubricate with lithium-soap-based grease. pivots Drive shaft uni- √ √...
  • Page 99 • Every two years replace the internal components of the brake master cylinder and calipers, and change the brake fluid. • Replace the brake hoses every four years and if cracked or damaged.

  • Page 100: Hood

    EBU32340 Hood To remove 1. Pull the tab on each hood lock up, and then turn the hood locks 1/4 turn clock- wise. 1. Tab 2. Hood lock 2. Remove the hood. 1. Tab 1. Hood 8-10...

  • Page 101: Engine Oil And Oil Filter Cartridge

    To install EBU33020 Engine oil and oil filter cartridge 1. Insert the projections on the hood into the Check engine oil level before each operation. slots in the front grill, and then place the In addition, change the oil and the oil filter car- hood in the original position.
  • Page 102 1. Engine oil dipstick 1. Maximum level mark 2. Minimum level mark 5. Insert the dipstick completely into the oil 3. Oil filler hole filler hole, and then remove it again to 6. If the engine oil is at or below the mini- check the oil level.
  • Page 103 3. Lift the cargo bed up. (See page 4-23 for cargo bed lifting and lowering proce- dures.) 4. Remove the right rear panel by removing the quick fastener screws and bolts. 1. Right rear panel 2. Quick fastener screw 3. Bolt 7.
  • Page 104 An oil filter wrench is available from a Yamaha dealer. 1. Engine oil drain bolt 2. Gasket Skip steps 7–9 if the oil filter cartridge is not 1. Oil filter cartridge being replaced. 2. Oil filter wrench 7. Remove the oil filter cartridge with an oil 8.
  • Page 105 1. O-ring 1. Torque wrench 9. Install the new oil filter cartridge with an 10. Install the engine oil drain bolt and its new oil filter wrench, and then tighten it to the gasket, and then tighten the bolt to the specified torque with a torque wrench.

  • Page 106: Final Gear Oil

     Make sure that no foreign material en- Recommended engine oil: ters the crankcase. See page 10-1. Oil quantity: 12. Start the engine, and then let it idle for Without oil filter cartridge replacement: several minutes while checking it for oil 2.20 L (2.33 US qt, 1.94 Imp.qt) leakage.
  • Page 107 Tightening torque: Final gear oil filler bolt: 23 Nm (2.3 m·kgf, 17 ft·lbf) Changing the final gear oil 1. Park the vehicle on a level surface. 2. Place an oil pan under the final gear case to collect the used oil. 3.

  • Page 108: Differential Gear Oil

    4. Install the drain bolt and its new gasket, Tightening torque: and then tighten the bolt to the specified Final gear oil filler bolt: torque. 23 Nm (2.3 m·kgf, 17 ft·lbf) 8. Check for oil leakage. If oil leakage is Tightening torque: Final gear oil drain bolt: found, check for the cause.
  • Page 109 Tightening torque: Differential gear oil filler bolt: 23 Nm (2.3 m·kgf, 17 ft·lbf) Changing the differential gear oil 1. Park the vehicle on a level surface. 2. Place an oil pan under the differential gear case to collect the used oil. 3.

  • Page 110: Coolant

    4. Install the differential gear oil drain bolt Tightening torque: and its new gasket, and then tighten the Differential gear oil filler bolt: bolt to the specified torque. 23 Nm (2.3 m·kgf, 17 ft·lbf) 8. Check for oil leakage. If oil leakage is Tightening torque: Differential gear oil drain bolt: found, check for the cause.

  • Page 111: Axle Boots

    Changing the coolant The coolant must be changed by a Yamaha dealer at the intervals specified in the periodic maintenance and lubrication chart. Adding water instead of coolant lowers the antifreeze content of the coolant. If water is used instead of coolant, have a Yamaha deal- er check the antifreeze content of the coolant as soon as possible.

  • Page 112: Spark Plug Inspection

    If any damage is found, have them replaced EBU32410 Spark plug inspection by a Yamaha dealer. Removal 1. Lift the cargo bed up. (See page 4-23 for cargo bed lifting and lowering proce- dures.) 2. Remove the spark plug cap.
  • Page 113 and erode. If electrode erosion becomes ex- cessive, or if carbon and other deposits are excessive, you should replace the spark plug with the specified plug. Specified spark plug: NGK/CPR7EA-9 Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap to specification.

  • Page 114: Cleaning The Air Filter Element

    EBU34810 Spark plug gap: Cleaning the air filter element 0.8–0.9 mm (0.031–0.035 in) The air filter element should be cleaned every 20–40 hours. It should be cleaned and lubri- Installation cated more often if the vehicle is operated in 1. Clean the surface of the spark plug gas- extremely dusty areas.
  • Page 115 1. Remove the center passenger seat cush- ion. (See page 4-15 for seat cushion re- moval and installation procedures.) 2. Lift up the rubber damper, and then re- move the center passenger seat by re- moving the bolts. 1. Quick fastener screw 2.
  • Page 116 6. While pushing the projections on the air filter frame inward, remove the air filter el- ement holder. 1. Air filter case cover holder 2. Air filter case cover 5. Remove the air filter element. 1. Air filter element holder 2.
  • Page 117 1. Air filter element holder 10. Wash the sponge material in warm soapy 2. Sponge material water to remove remaining solvent, then 3. Air filter frame rinse thoroughly with plain warm water. 8. Wash the sponge material gently but 11. Squeeze excess water out of the sponge thoroughly in parts cleaning solvent.
  • Page 118 13. Thoroughly apply Yamaha foam air filter 18. Install cover A, then cover B in their orig- oil or other quality liquid foam air filter oil inal positions by installing the quick fas- (not spray type) to the sponge material.

  • Page 119: Cleaning The Air Filter Case/Duct Check Hose

    vehicle. If dust or water collects in a check hose, empty the hose and clean the air filter element and air filter case. 1. Cover B 19. Install the seat by installing the bolts, and then place the rubber damper in the orig- 1.

  • Page 120: V-Belt Case Drain Plug

    If water drains from the V-belt case after re- haust system. moving the drain plug, have a Yamaha dealer inspect the vehicle, as the water may affect 1. Remove the tailpipe bolts.
  • Page 121 1. Tailpipe bolt 1. Gasket 2. Spark arrester 2. Remove the tailpipe by pulling it out of 3. Tailpipe the muffler, and then remove the gasket. 4. Install the gasket, and then insert the tail- 3. Tap the tailpipe lightly, and then use a pipe into the muffler and align the bolt wire brush to remove any carbon depos- holes.

  • Page 122: Valve Clearance

    Yamaha service technician. pad has worn to the point that the wear indi- cator grooves have almost disappeared, have EBU32470 a Yamaha dealer replace the brake pads as a Brakes set. Replacement of brake components requires The wheels need to be removed to check the professional knowledge.

  • Page 123: Checking The Parking Brake Pads

    If a brake pad has worn to the level. Replenish the brake fluid if necessary. point that the wear indicator groove has al- most disappeared, have a Yamaha dealer re- place the brake pads as a set. 8-33...
  • Page 124  Clean the filler cap before removing. Use only DOT 4 brake fluid from a sealed container.  Use only the specified brake fluid; other- wise, the rubber seals may deteriorate, causing leakage.  Refill with the same type of brake fluid. Adding a brake fluid other than DOT 4 may result in a harmful chemical reac- tion.

  • Page 125: Brake Fluid Replacement

    EBU32530 Parking brake lever free play adjust- Checking the brake pedal ment Have a Yamaha dealer check the brakes at Periodically check the parking brake lever the intervals specified in the periodic mainte- free play and adjust it if necessary.
  • Page 126 1. Shift the drive select lever into low gear “L”. 2. Check the parking brake lever free play. The maximum free play is equal to one click of the parking brake lever. If neces- sary, adjust the free play as follows. 1.

  • Page 127: Brake Light Switch Adjustment

    (a). To make the brake light come on later, turn the adjusting nut in direction (b). Lubricate the cable ends. If the cables do not operate smoothly, ask a Yamaha dealer to re- place them. Recommended lubricant: Yamaha cable lubricant or other suitable...

  • Page 128: Checking The Stabilizer Bushes

    Checking the stabilizer bushes with a grease gun. The stabilizer bushes must be checked for cracks or damage at the intervals specified in the periodic maintenance and lubrication chart. Have a Yamaha dealer replace the stabilizer bushes if necessary. 8-38...

  • Page 129: Steering Shaft Lubrication

    EBU32610 Recommended lubricant: Wheel removal Lithium-soap-based grease 1. Loosen the wheel nuts. 2. Elevate the vehicle and place a suitable EBU32600 Steering shaft lubrication stand under the frame. Lubricate the pivot points. 3. Remove the nuts from the wheel. 4. Remove the wheel. Recommended lubricant: Lithium-soap-based grease 8-39...

  • Page 130: Tire Replacement

    Always use the same size and type of tires Size: recommended in this owner’s manual. The 25 x 8-12NHS tires that came with your Yamaha Viking were Manufacturer/model: designed to match the performance capabili- MAXXIS/MU09 ties and to provide the best combination of Rear tire: handling, braking, and comfort.

  • Page 131: Wheel Installation

    YXM70VDHG / EWB03400 WARNING YXM70VPXG / YXM70VPHG: tapered nuts Do not reverse the rims on your Yamaha are used for both the front and rear wheels. Viking to widen the track width. Installing Install the nuts with their tapered side towards wheels improperly increases the risk of the wheel.
  • Page 132 This model is equipped with a VRLA (Valve EWB03420 WARNING Regulated Lead Acid) battery. There is no Batteries may produce explosive gases. need to check the electrolyte or to add dis- Ventilate when charging or using in a tilled water. However, the battery lead con- closed space.
  • Page 133 To charge the battery ing their bolt. NOTICE: When removing Have a Yamaha dealer charge the battery as the battery, the main switch must be soon as possible if it seems to have dis- off, and the negative lead must be dis- charged.
  • Page 134 To install the battery ECB00932 NOTICE To charge a VRLA (Valve Regulated Lead Be sure the battery is fully charged. Acid) battery, a special (constant-voltage) battery charger is required. Using a con- 1. Place the battery in its compartment. ventional battery charger will damage the 2.

  • Page 135: Jump-Starting

    3. Hook the battery bands. 1. Turn the key to “ ” (off). 4. Install the air intake duct panel by install- 2. Remove the hood. (See page 8-10 for ing the quick fastener screws. hood removal and installation proce- 5.

  • Page 136: Fuse Replacement

    4. Connect the negative lead of the jumper disconnect the positive lead of the jump- cable to the negative terminal of the er cable from the charged battery and the charged battery and the other end of the battery in the vehicle. negative lead to an unpainted metal sur- 7.
  • Page 137 1 2 3 4 5 6 1. Fuse box 1. Backup fuse “BACK UP” (for clock) 2. Main fuse 2. Ignition fuse “IGNITION” 3. EPS fuse (for EPS model) 3. Four-wheel-drive motor fuse “DIFF” 4. Fuel injection system fuse 4. Auxiliary DC jack fuse “TERMINAL” 5.
  • Page 138 ECB00641 Specified fuses: NOTICE Main fuse: To prevent accidental short-circuiting, 40.0 A turn off the main switch when checking or Fuel injection system fuse: replacing a fuse. 10.0 A Headlight fuse: 2. Remove the hood. (See page 8-10 for 15.0 A hood removal and installation proce- Ignition fuse: 10.0 A...

  • Page 139: Replacing A Headlight Bulb

    ” (on) and turn on the ing it off. electrical circuit in question to check if the device operates. If the fuse blows again immediately, have a Yamaha dealer check the electrical system. 5. Install the hood. EBU32670 Replacing a headlight bulb If a headlight bulb burns out, replace it as fol- lows.
  • Page 140 5. Wait for the headlight bulb to cool before touching or removing it. Remove the burnt-out bulb by pulling it out. 6. Place a new headlight bulb into position, and then secure it with the bulb holder. NOTICE: Do not touch the glass part of the headlight bulb to keep it free from oil, otherwise the transparency of the glass, the luminosity of the bulb, and...

  • Page 141: Headlight Beam Adjustment

    EBU32680 Headlight beam adjustment ECB00691 NOTICE It is advisable to have a Yamaha dealer make this adjustment. To raise the beam, turn the headlight beam adjusting screw in direction (a). To lower the beam, turn the headlight beam adjusting screw in direction (b).

  • Page 142: Tail/Brake Light Bulb Replacement

    EBU32690 Tail/brake light bulb replacement If a tail/brake light bulb burns out, replace it as follows: 1. Remove panel A (if replacing the left tail/brake light bulb) or panel B (if replac- ing the right tail/brake light bulb) by re- moving the quick fastener screws, nuts and bolts.

  • Page 143: Troubleshooting

    If your vehicle 5. Install the bulb holder (together with the requires any repair, take it to a Yamaha deal- bulb) by turning it clockwise. 6. Install the panel. 8-53...
  • Page 144 Use only genuine Yamaha parts on your vehicle. Imita- tion parts may look like Yamaha parts, but they are often inferior. Consequently, they have a shorter service life and can lead to ex- pensive repair bills.

  • Page 145: Troubleshooting Charts

    Remove the spark plug and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the compression. 4. Compression The engine does not start. There is compression.
  • Page 146 Restart the engine. If the engine overheats again, ask a Level is OK. Yamaha dealer to inspect and/or repair the cooling system. If it is difficult to get the recommended coolant, tap water can be used temporarily, provided that it is changed to the recommended coolant as soon as possible.

  • Page 147: Cleaning And Storage

    brakes may have reduced stopping EBU32720 CLEANING AND STORAGE ability, increasing the chance of an ac- NOTICE: Excessive wa- cident. EBU32730 [EWB03470] Cleaning ter pressure may cause water seepage Frequent, thorough cleaning of your vehicle and deterioration of wheel bearings, will not only enhance its appearance but will brakes, transmission seals and electri- improve its general performance and extend...

  • Page 148: Storage

    1. Fill the fuel tank with fresh fuel and add cloth. the specified amount of Yamaha Fuel 6. Clean the seats with a vinyl upholstery Stabilizer and Conditioner or equivalent cleaner to keep the covers pliable and product.
  • Page 149 [less than 0 °C (30 °F) or more than 30 °C (90 °F)]. Use of fuel stabilizer and conditioner elimi- nates the need to drain the fuel system. Con- sult a Yamaha dealer if the fuel system needs to be drained.

  • Page 150: Specifications

    EBU32750 SPECIFICATIONS Bore × stroke: Dimensions: 102.0 × 84.0 mm (4.02 × 3.31 in) Overall length: Compression ratio: 3100 mm (122.0 in) 10.0 : 1 Overall width: Starting system: 1570 mm (61.8 in) (YXM70VDHG, YXM70VDXG, Electric starter YXM70VPHG, YXM70VPXG) Lubrication system: 1625 mm (64.0 in) (YXM70VPSG) Wet sump Overall height:...
  • Page 151 Type: Quantity: SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W- 0.18 L (0.19 US qt, 0.16 Imp.qt) Coolant quantity: Coolant reservoir (up to the maximum level mark): 130 ˚F 0.28 L (0.30 US qt, 0.25 Imp.qt) Radiator (including all routes): SAE 5W-30 2.74 L (2.90 US qt, 2.41 Imp.qt) Air filter:...
  • Page 152 Secondary reduction ratio: Manufacturer/model: 41/21 × 17/12 × 33/9 (10.142) MAXXIS/MU10 Transmission type: Loading: V-belt automatic Maximum loading limit: Operation: 411.0 kg (906 lb) Right hand operation (Total weight of operator, passengers, cargo, accessories, Reverse gear: and tongue) 23/14 × 28/23 (2.000) Tire air pressure (measured on cold tires): Low range: Recommended:...
  • Page 153 Rear: Front suspension: 120.0 kPa (1.200 kgf/cm², 17 psi) Type: Front wheel: Double wishbone Wheel type: Spring/shock absorber type: Cast wheel (YXM70VPSG) Coil spring/gas-oil damper Panel wheel (YXM70VDHG, YXM70VDXG, YXM70VPHG, Wheel travel: YXM70VPXG) 205 mm (8.1 in) Rim size: Rear suspension: 12 x 6.0AT Type: Rear wheel:...
  • Page 154 Tail/brake light: Signaling system fuse: 12 V, 5.0/21.0 W × 2 10.0 A Neutral indicator light: Ignition fuse: 10.0 A Reverse indicator light: Auxiliary DC jack fuse: 10.0 A Coolant temperature warning light: Backup fuse: 10.0 A Engine trouble warning light: Four-wheel-drive motor fuse: 10.0 A Park indicator light:...

  • Page 155: Consumer Information

    This number can be used for ordering a new mation in the spaces provided for assistance key. when ordering spare parts from a Yamaha dealer or for reference, in case the vehicle is stolen. KEY IDENTIFICATION NUMBER: VEHICLE IDENTIFICATION NUMBER: 1.
  • Page 156 The model label is affixed to the frame under haust emissions as required by federal law, the driver seat. Record the information on this state law and Environment Canada. label in the space provided. This information will be needed to order spare parts from your Yamaha dealer. 11-2...
  • Page 157 1. Vehicle Emission Control Information label 11-3...

  • Page 158: Noise Regulation

    EBU32830 NOISE REGULATION TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED: Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering in- operative by any person other than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

  • Page 159: Maintenance Record

    EBU32840 MAINTENANCE RECORD Copies of work orders and/or receipts for parts you purchase and install will be required to doc- ument maintenance done in accordance with the warranty. The chart below is printed only as a reminder to you that the maintenance work is required. It is not acceptable proof of maintenance work.

  • Page 160: Yamaha Motor Corporation, U.s.a. 2015 And Later Model Side × Side Limited Warranty

    EBU32850 YAMAHA MOTOR CORPORATION, U.S.A. 2015 AND LATER MODEL SIDE × SIDE LIMITED WARRANTY Yamaha Motor Corporation, U.S.A. hereby warrants SPECIFIC EXCLUSIONS from this warranty shall this warranty to remain in effect, this inspection and that new Yamaha Side x Side models purchased from...

  • Page 161: Yamaha Extended Service (Y.e.s.)

    This excellent Y.E.S. plan coverage is only available to dealer to see how comfor ting uninterr upted factor y- Yamaha owners like you, and only while your Yamaha is still backed protection can be. within the Yamaha Limited Warranty period. So visit your authorized Yamaha dealer to get all the facts.
  • Page 162 11-8...

  • Page 163: Index

    INDEX Differential gear oil, Pre-operation check ...... 5-7 Doors ................4-15 Driver seat position ............4-16 Drive select lever ............4-14 Accelerator pedal ............4-12 Drive select lever operation and reverse driving .... 6-3 Accelerator pedal, Pre-operation check ......5-7 Air filter case/duct check hose, cleaning .....
  • Page 164 Indicator lights and warning lights .........4-2 Parking brake lever ............4-13 Instruments, lights and switches, Pre-operation Parking brake lever free play, adjusting ....... 8-35 check ................5-8 Parking brake pads, checking ........8-33 Passenger handhold, Pre-operation check ....5-8 Jump-starting ...............8-45 Rear knuckle upper and lower pivot, lubrication ..8-38 Reverse indicator light ...........
  • Page 165 V-belt case drain plug ..........8-30 Vehicle Emission Control Information label ....11-2 Vehicle identification number ........11-1 Warranty, extended ............. 11-7 Warranty, limited ............11-6 Wheel installation ............8-41 Wheel removal ............. 8-39 12-3...
  • Page 167 EBU32880 For your best ownership experience, think Genuine Yamaha! Genuine Yamaha Parts – Genuine Yamaha replacement parts are the exact same parts as the ones originally equipped on your vehicle, providing you with the performance and durability you have come to expect.
  • Page 168 PRINTED IN USA 2015.05-2.4×1 CR...

This manual is also suitable for:

Yxm70vdxg 2015Yxm70vdhg 2015Yxm70vpxgYxm70vphgYxm70vpsg

Table of Contents
