EBS01054

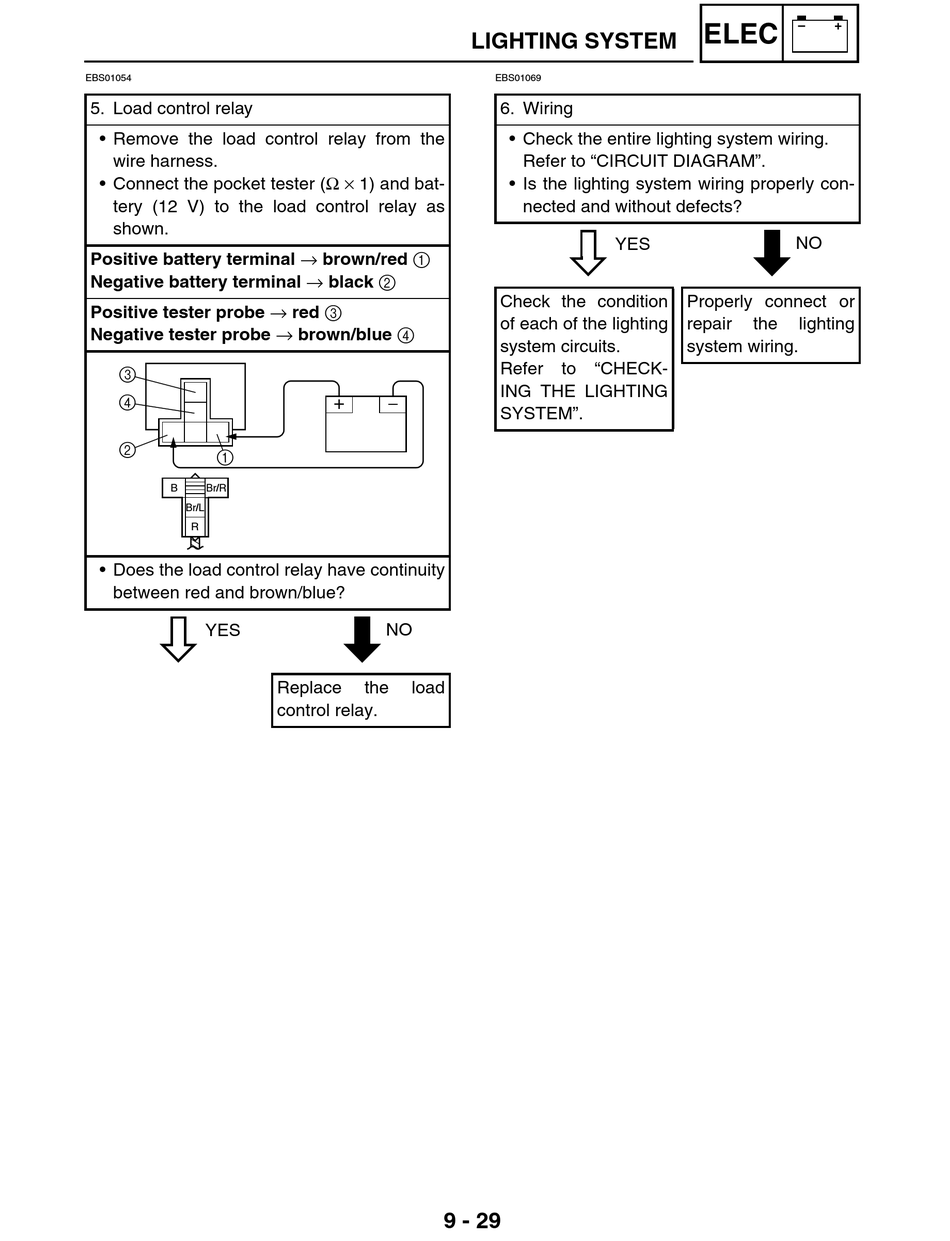

5. Load control relay
• Remove the load control relay from the
wire harness.
• Connect the pocket tester (Ω × 1) and bat-
tery (12 V) to the load control relay as
shown.
Positive battery terminal → brown/red 1
Negative battery terminal → black 2
Positive tester probe → red 3
Negative tester probe → brown/blue 4
3
4
2
B Br/R
Br/L
R
• Does the load control relay have continuity
between red and brown/blue?
YES
+
NO
Replace the load
control relay.
9 - 29
LIGHTING SYSTEM
EBS01069
6. Wiring
• Check the entire lighting system wiring.
Refer to "CIRCUIT DIAGRAM".
• Is the lighting system wiring properly con-
nected and without defects?
YES
Check the condition
of each of the lighting
system circuits.
Refer to "CHECK-
ING THE LIGHTING
SYSTEM".
– +
ELEC
NO
Properly connect or
repair the lighting
system wiring.
