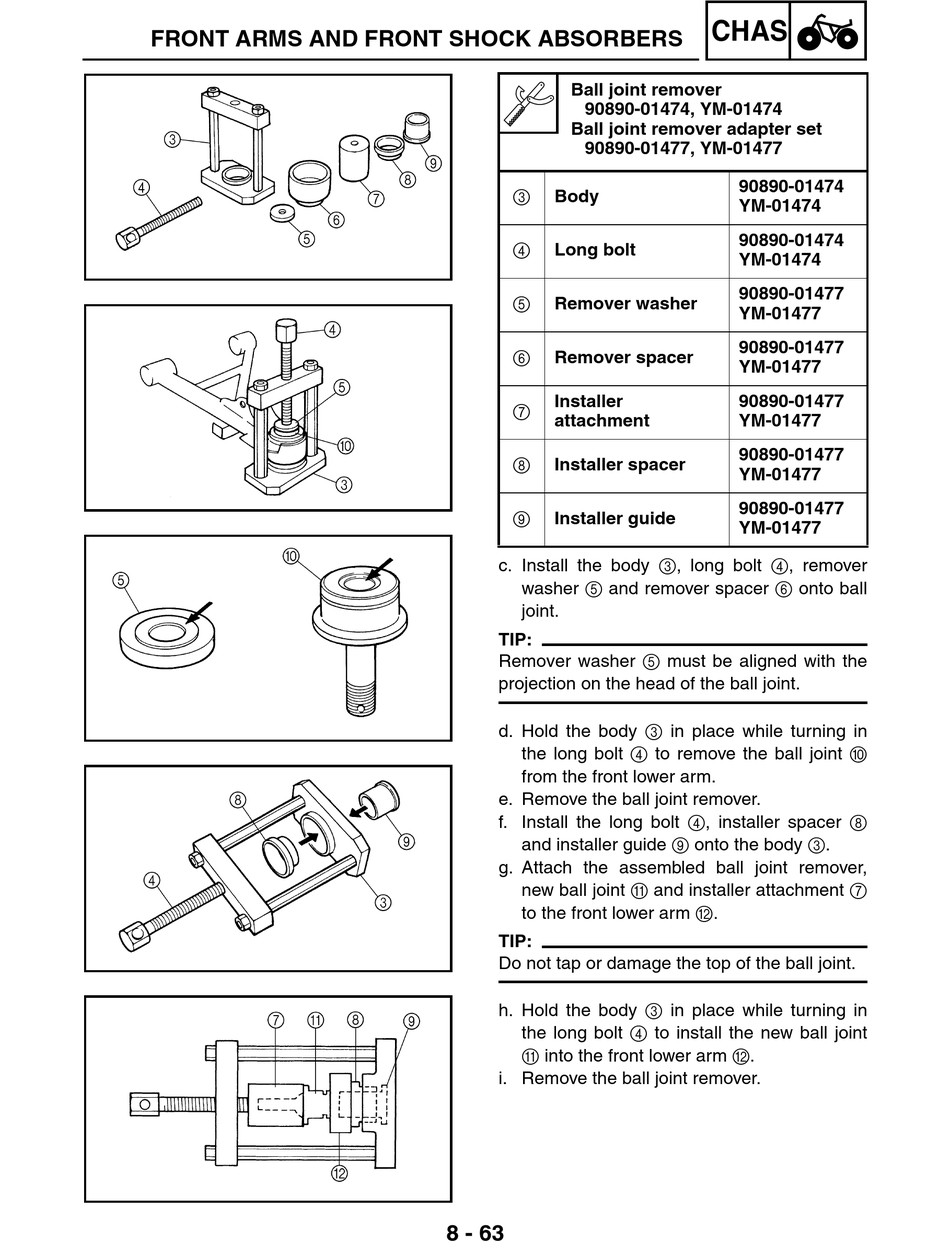

FRONT ARMS AND FRONT SHOCK ABSORBERS

Ball joint remover

90890-01474, YM-01474

Ball joint remover adapter set

90890-01477, YM-01477

Remover washer

Remover spacer

Installer spacer

Installer guide

c. Install the body 3, long bolt 4, remover

washer 5 and remover spacer 6 onto ball

Remover washer 5 must be aligned with the

projection on the head of the ball joint.

d. Hold the body 3 in place while turning in

the long bolt 4 to remove the ball joint 0

from the front lower arm.

e. Remove the ball joint remover.

f. Install the long bolt 4, installer spacer 8

and installer guide 9 onto the body 3.

g. Attach the assembled ball joint remover,

new ball joint A and installer attachment 7

to the front lower arm B.

Do not tap or damage the top of the ball joint.

h. Hold the body 3 in place while turning in

the long bolt 4 to install the new ball joint

A into the front lower arm B.

i. Remove the ball joint remover.
