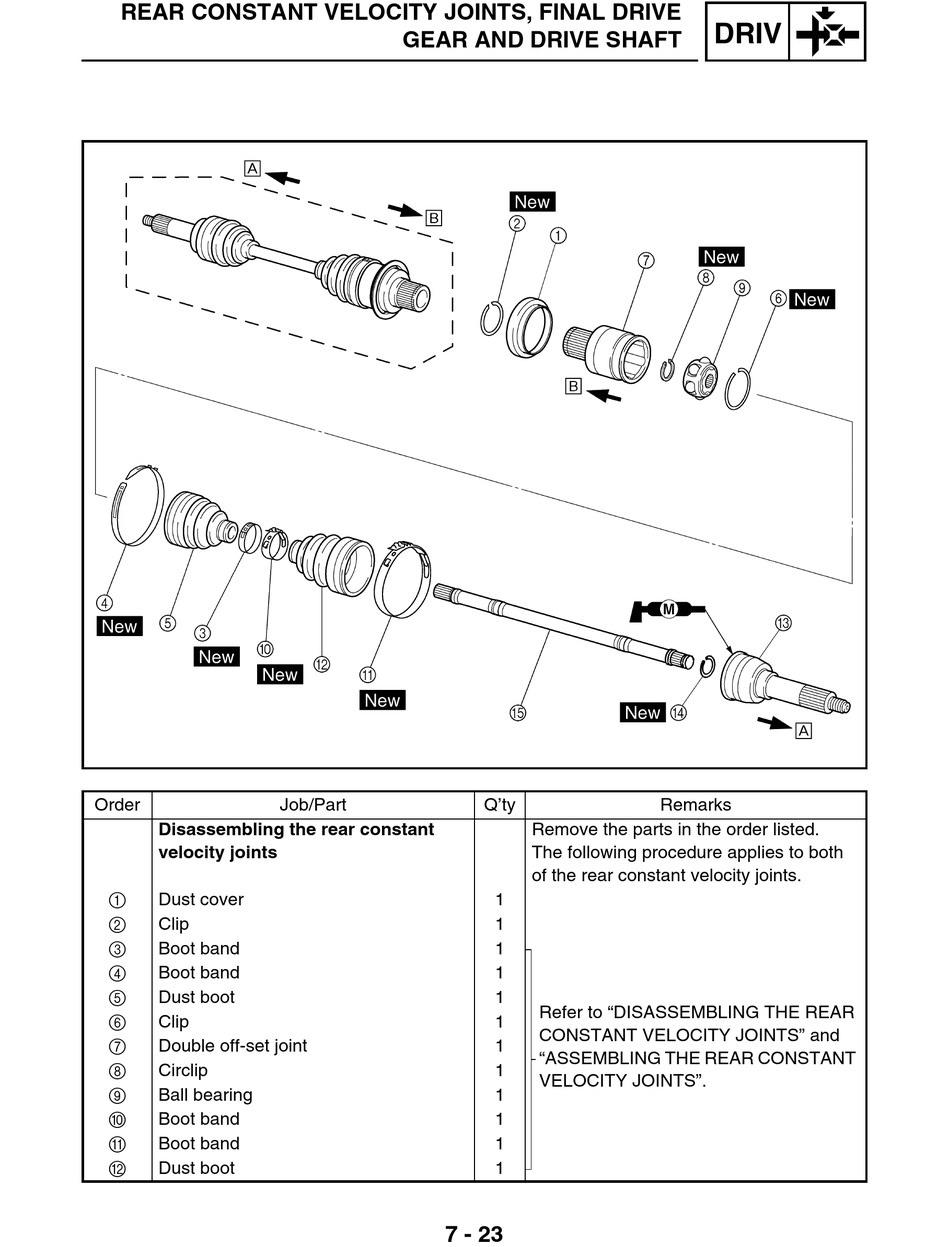

REAR CONSTANT VELOCITY JOINTS, FINAL DRIVE
Order
Disassembling the rear constant
velocity joints
1
Dust cover
2
Clip
3
Boot band
4
Boot band
5
Dust boot
6
Clip
7
Double off-set joint
8
Circlip
9
Ball bearing
0
Boot band
A
Boot band
B
Dust boot
GEAR AND DRIVE SHAFT
Job/Part
7 - 23
Q'ty
Remarks
Remove the parts in the order listed.
The following procedure applies to both
of the rear constant velocity joints.
1
1
1
1
1
Refer to "DISASSEMBLING THE REAR
1
CONSTANT VELOCITY JOINTS" and
1
"ASSEMBLING THE REAR CONSTANT
1
VELOCITY JOINTS".
1
1
1
1
