5 Nm (0.5 m kg, 3.6 ft
•
8
17 Nm (1.7 m kg, 12 ft
•
1

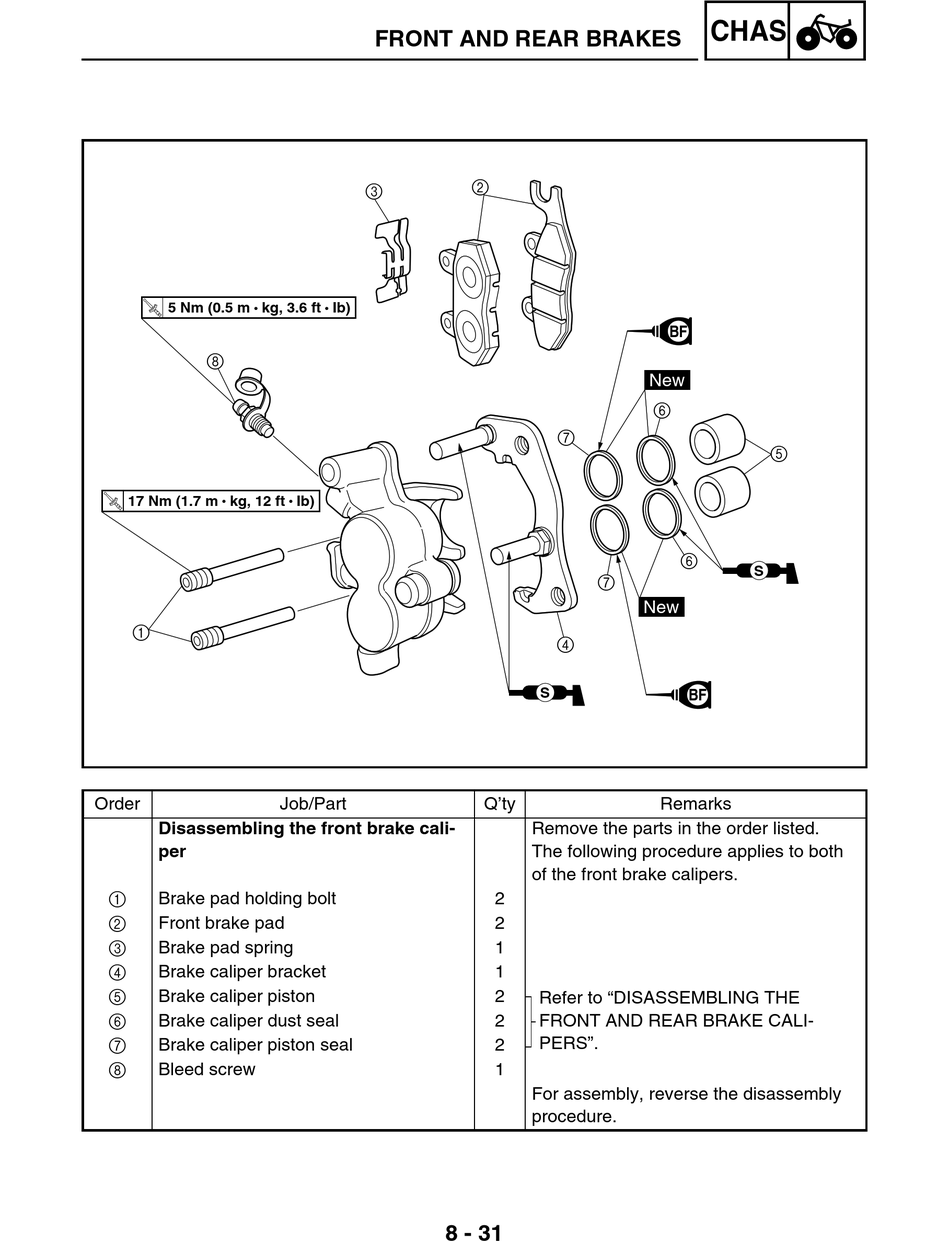

Order
Disassembling the front brake cali-
per
1
Brake pad holding bolt
2 Front brake pad
3
Brake pad spring
4
Brake caliper bracket
5
Brake caliper piston
6 Brake caliper dust seal
7
Brake caliper piston seal
8
Bleed screw
FRONT AND REAR BRAKES
3
Ib)
•
Ib)
•
Job/Part
8 - 31
2
New
7
7
New
4
S
Q'ty
Remove the parts in the order listed.
The following procedure applies to both
of the front brake calipers.
2
2
1
1
2
Refer to "DISASSEMBLING THE
2 FRONT AND REAR BRAKE CALI-
PERS".
2
1
For assembly, reverse the disassembly
procedure.
CHAS
BF
6
5
6
S
BF
Remarks
