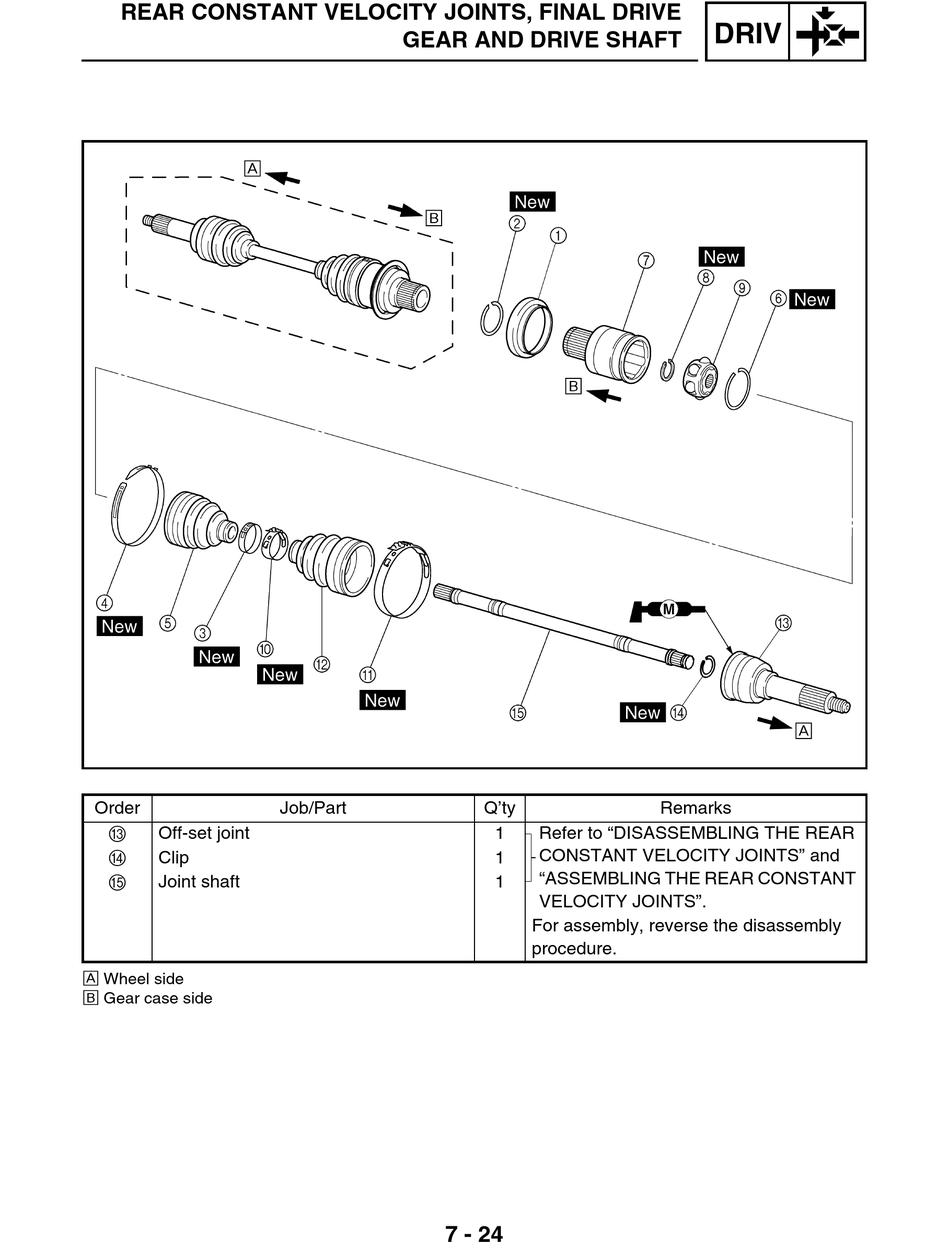

REAR CONSTANT VELOCITY JOINTS, FINAL DRIVE
Order
C
Off-set joint
D
Clip
E Joint shaft
È Wheel side
É Gear case side
GEAR AND DRIVE SHAFT
Job/Part
7 - 24
Q'ty Remarks
1 Refer to "DISASSEMBLING THE REAR
CONSTANT VELOCITY JOINTS" and
1
"ASSEMBLING THE REAR CONSTANT
1
VELOCITY JOINTS".
For assembly, reverse the disassembly
procedure.
DRIV
