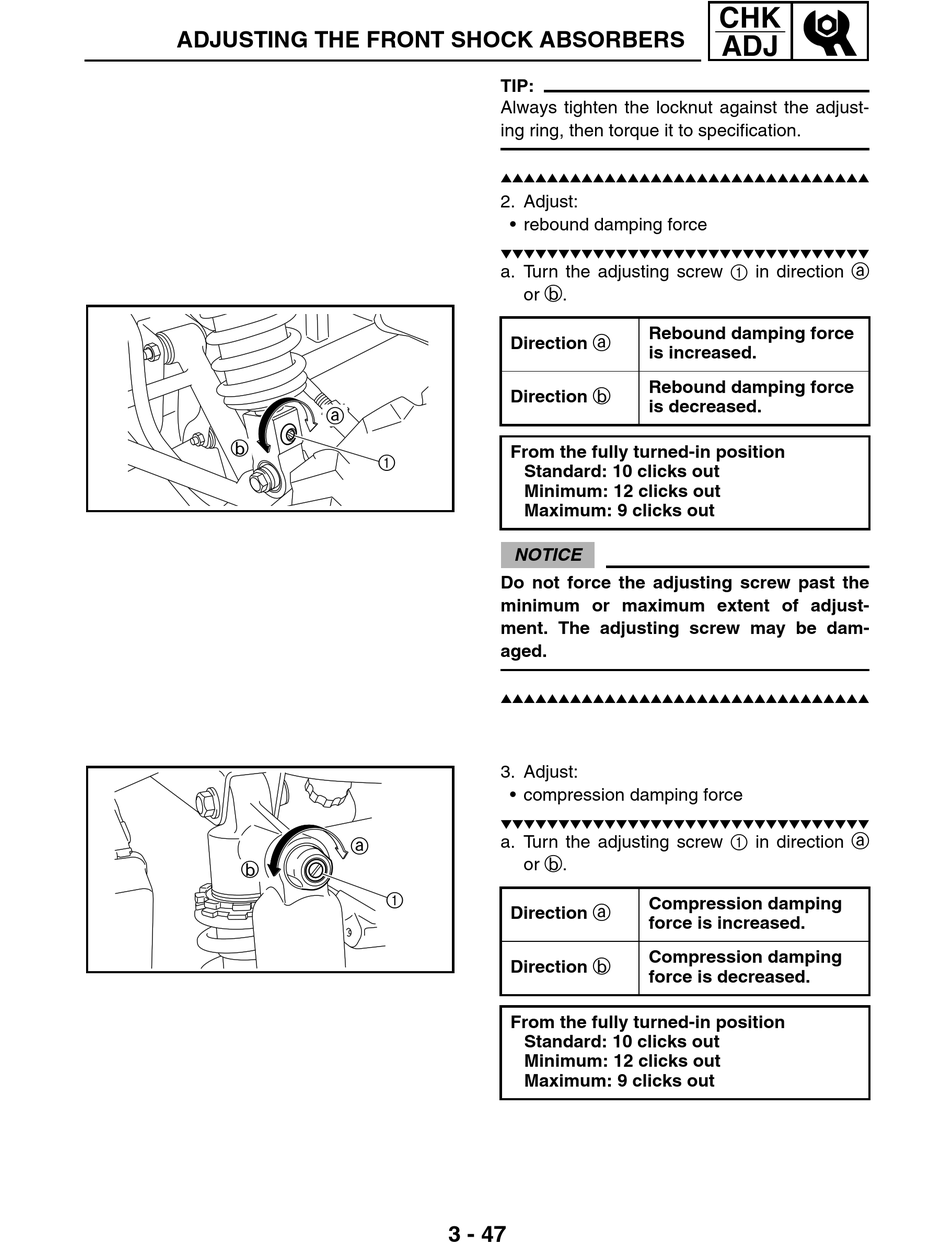

ADJUSTING THE FRONT SHOCK ABSORBERS
a
b
a
b
TIP:
_
Always tighten the locknut against the adjust-
ing ring, then torque it to specification.
L LLL L LLL
2. Adjust:
• rebound damping force
M MMM M MMM
a. Turn the adjusting screw 1 in direction a
or b.
Direction a
Direction b
From the fully turned-in position
1
Standard: 10 clicks out
Minimum: 12 clicks out
Maximum: 9 clicks out
NOTICE
_
Do not force the adjusting screw past the
minimum or maximum extent of adjust-
ment. The adjusting screw may be dam-
aged.
L LLL L LLL
3. Adjust:
• compression damping force
M MMM M MMM
a. Turn the adjusting screw 1 in direction a
or b.
1
Direction a
Direction b
From the fully turned-in position
Standard: 10 clicks out
Minimum: 12 clicks out
Maximum: 9 clicks out
3 - 47
CHK
ADJ
L L LLL L L LLL L L LLL L
M M MMM M M MMM M M MMM M
Rebound damping force
is increased.
Rebound damping force
is decreased.
L L LLL L L LLL L L LLL L
M M MMM M M MMM M M MMM M
Compression damping
force is increased.
Compression damping
force is decreased.
