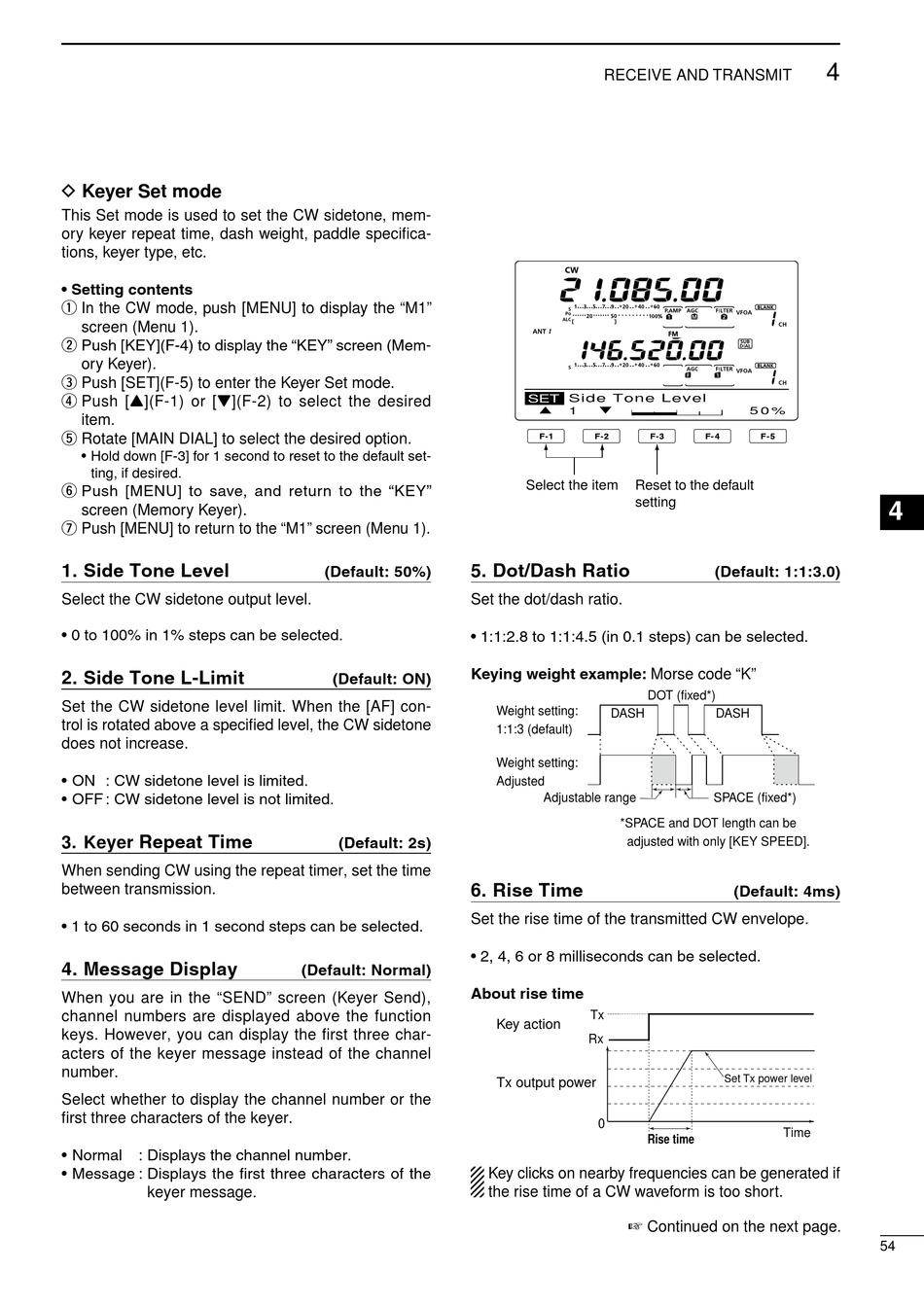

D Keyer Set mode

This Set mode is used to set the CW sidetone, mem-
ory keyer repeat time, dash weight, paddle specifica-
tions, keyer type, etc.
• Setting contents
q In the CW mode, push [MENU] to display the "M1"
screen (Menu 1).
w Push [KEY](F-4) to display the "KEY" screen (Mem-
ory Keyer).
e Push [SET](F-5) to enter the Keyer Set mode.
r Push [Y](F-1) or [Z](F-2) to select the desired
item.
t Rotate [MAIN DIAL] to select the desired option.
• Hold down [F-3] for 1 second to reset to the default set-
ting, if desired.
y Push [MENU] to save, and return to the "KEY"
screen (Memory Keyer).
u Push [MENU] to return to the "M1" screen (Menu 1).
Side Tone Level
1.
Select the CW sidetone output level.
• 0 to 100% in 1% steps can be selected.
Side Tone L-Limit
2.
Set the CW sidetone level limit. When the [AF] con-
trol is rotated above a specified level, the CW sidetone
does not increase.
• ON : CW sidetone level is limited.
• OFF : CW sidetone level is not limited.
Repeat Time
3. Keyer
When sending CW using the repeat timer, set the time
between transmission.
• 1 to 60 seconds in 1 second steps can be selected.
Message Display
4.
When you are in the "SEND" screen (Keyer Send),
channel numbers are displayed above the function
keys. However, you can display the first three char-
acters of the keyer message instead of the channel
number.
Select whether to display the channel number or the
first three characters of the keyer.
• Normal : Displays the channel number.
• Message : Displays the first three characters of the
keyer message.
(Default: 50%)
5.
Set the dot/dash ratio.
• 1:1:2.8 to 1:1:4.5 (in 0.1 steps) can be selected.
Keying weight example: Morse code "K"
(Default: ON)
(Default: 2s)
6.
Set the rise time of the transmitted CW envelope.
• 2, 4, 6 or 8 milliseconds can be selected.
(Default: Normal)
About rise time
RECEIVE AND TRANSMIT
Side Tone Level
SET
∫ √
1
Select the item Reset to the default
setting
Dot/Dash Ratio
DOT (fixed*)
Weight setting:
DASH
1:1:3 (default)
Weight setting:
Adjusted
Adjustable range
*SPACE and DOT length can be
adjusted with only [KEY SPEED].
Rise Time
Tx
Key action
Rx
Tx output power
0
Rise time
Key clicks on nearby frequencies can be generated if
the rise time of a CW waveform is too short.
☞ Continued on the next page.
4
5 0 %
(Default: 1:1:3.0)
DASH
SPACE (fixed*)
(Default: 4ms)
Set Tx power level
Time
