8
DV MODE OPERATION

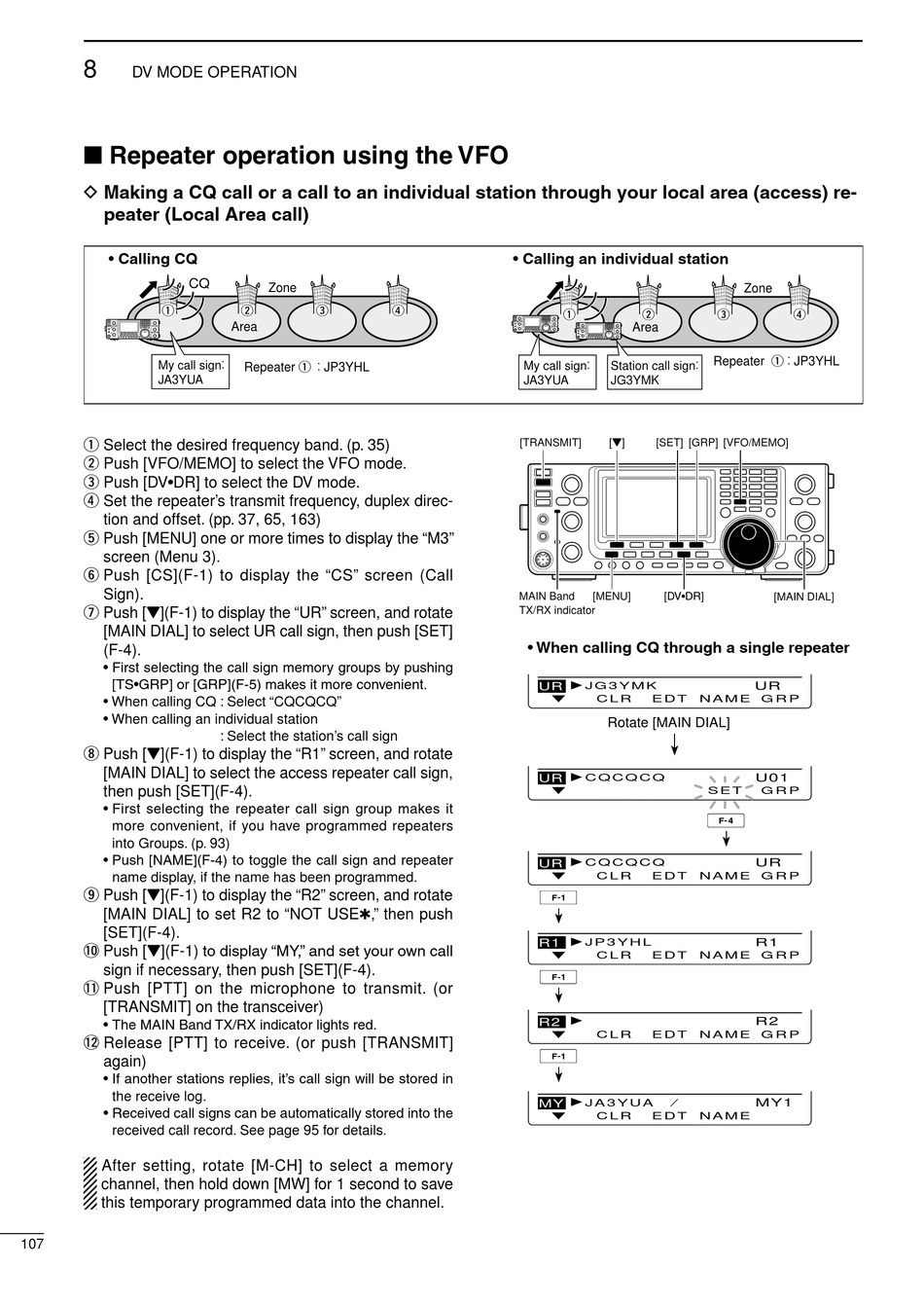

■ Repeater operation using the VFO

D Making a CQ call or a call to an individual station through your local area (access) re-
peater (Local Area call)
• Calling CQ
CQ
q
My call sign
JA3YUA
UR
UR
Ú
q Select the desired frequency band. (p. 35)
w Push [VFO/MEMO] to select the VFO mode.
R1
R1
e Push [DV•DR] to select the DV mode.
Ú
r Set the repeater's transmit frequency, duplex direc-
tion and offset. (pp. 37, 65, 163)
R2
R2
Ú
t Push [MENU] one or more times to display the "M3"
screen (Menu 3).
y Push [CS](F-1) to display the "CS" screen (Call
MY
MY
Ú
Sign).
u Push [Z](F-1) to display the "UR" screen, and rotate
[MAIN DIAL] to select UR call sign, then push [SET]
(F-4).
• First selecting the call sign memory groups by pushing
[TS•GRP] or [GRP](F-5) makes it more convenient.
• When calling CQ : Select "CQCQCQ"
• When calling an individual station
i Push [Z](F-1) to display the "R1" screen, and rotate
[MAIN DIAL] to select the access repeater call sign,
then push [SET](F-4).
• First selecting the repeater call sign group makes it
more convenient, if you have programmed repeaters
into Groups. (p. 93)
• Push [NAME](F-4) to toggle the call sign and repeater
name display, if the name has been programmed.
o Push [Z](F-1) to display the "R2" screen, and rotate
[MAIN DIAL] to set R2 to "NOT USE✱," then push
[SET](F-4).
!0 Push [Z](F-1) to display "MY," and set your own call
sign if necessary, then push [SET](F-4).
!1 Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
• The MAIN Band TX/RX indicator lights red.
!2 Release [PTT] to receive. (or push [TRANSMIT]
again)
• If another stations replies, it's call sign will be stored in
the receive log.
• Received call signs can be automatically stored into the
received call record. See page 95 for details.
After setting, rotate [M-CH] to select a memory
channel, then hold down [MW] for 1 second to save
this temporary programmed data into the channel.
107
Zone
w e
Area
Repeater q JP3YHL
≈CQCQCQ
UR
C L R E D T N A M E G R P
≈JP3YHL
R1
C L R E D T N A M E G R P
≈
R2
C L R E D T N A M E G R P
≈JA3YUA
⁄ MY1
C L R E D T N A M E
: Select the station's call sign
• Calling an individual station
r
q
My call sign
JA3YUA
UR
[TRANSMIT]
R1
R2
MY
MAIN Band
TX/RX indicator
• When calling CQ through a single repeater
UR
Ú
UR
Ú
UR
Ú
R1
Ú
R2
Ú
MY
Ú
w e
Area
Repeater q JP3YHL
Station call sign
JG3YMK
≈JG3YMK
UR
Ú
C L R E D T N A M E
[Z] [SET] [GRP] [VFO/MEMO]
≈JP3YHL
R1
Ú
C L R E D T N A M E
≈
R2
Ú
C L R E D T N A M E
≈JA3YUA
MY ⁄
Ú
C L R E D T N A M E
[MENU] [DV•DR]
≈
J G 3 Y M K
C L R E D T N A M E
Rotate [MAIN DIAL]
≈
C Q C Q C Q
S E T
≈
C Q C Q C Q
C L R E D T N A M E
≈
J P 3 Y H L
C L R E D T N A M E
≈
C L R E D T N A M E
≈
J A 3 Y U A ⁄
C L R E D T N A M E
Zone
r
UR
G R P
R1
G R P
R2
G R P
MY1
[MAIN DIAL]
UR
G R P
U01
G R P
UR
G R P
R1
G R P
R2
G R P
MY1
