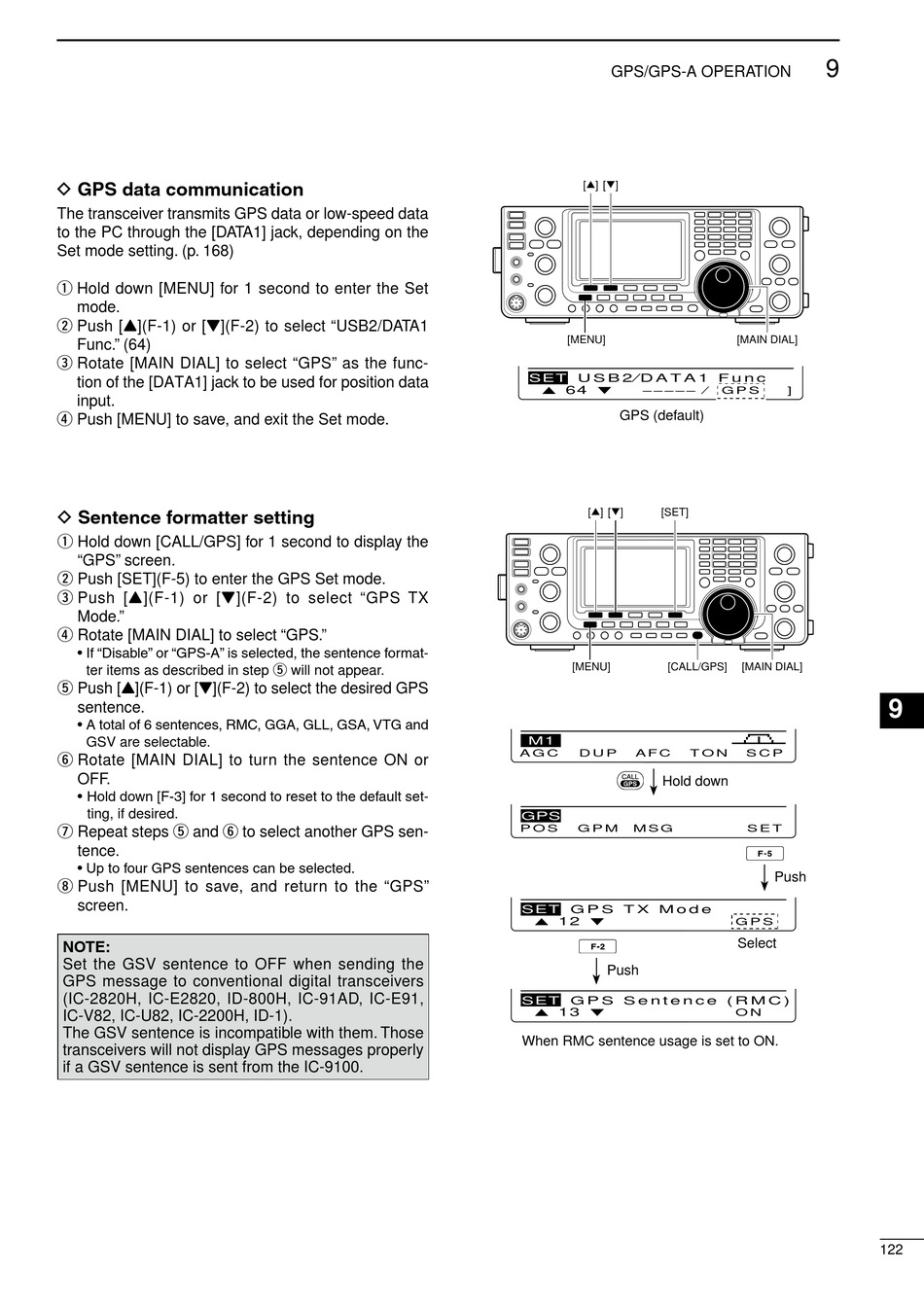

D GPS data communication

The transceiver transmits GPS data or low-speed data
to the PC through the [DATA1] jack, depending on the
Set mode setting. (p. 168)
q Hold down [MENU] for 1 second to enter the Set
mode.
w Push [Y](F-1) or [Z](F-2) to select "USB2/DATA1
Func." (64)
e Rotate [MAIN DIAL] to select "GPS" as the func-
tion of the [DATA1] jack to be used for position data
input.
r Push [MENU] to save, and exit the Set mode.

D Sentence formatter setting

q Hold down [CALL/GPS] for 1 second to display the
"GPS" screen.
w Push [SET](F-5) to enter the GPS Set mode.
e Push [Y](F-1) or [Z](F-2) to select "GPS TX
Mode."
r Rotate [MAIN DIAL] to select "GPS."
• If "Disable" or "GPS-A" is selected, the sentence format-
ter items as described in step t will not appear.
t Push [Y](F-1) or [Z](F-2) to select the desired GPS
sentence.
• A total of 6 sentences, RMC, GGA, GLL, GSA, VTG and
GSV are selectable.
y Rotate [MAIN DIAL] to turn the sentence ON or
OFF.
• Hold down [F-3] for 1 second to reset to the default set-
ting, if desired.
u Repeat steps t and y to select another GPS sen-
tence.
• Up to four GPS sentences can be selected.
i Push [MENU] to save, and return to the "GPS"
screen.
NOTE:
Set the GSV sentence to OFF when sending the
GPS message to conventional digital transceivers
(IC-2820H, IC-E2820, ID-800H, IC-91AD, IC-E91,
IC-V82, IC-U82, IC-2200H, ID-1).
The GSV sentence is incompatible with them. Those
transceivers will not display GPS messages properly
if a GSV sentence is sent from the IC-9100.
GPS/GPS-A OPERATION
[∫] [√]
[MENU]
SET U S B 2 ⁄ D A T A 1 F u n c
Ù Ú
64
– – – – – ⁄ [ G P S
GPS (default)
[∫] [√] [SET]
[MENU] [CALL/GPS]
M1
A G C D U P A F C T O N
Hold down
GPS
P O S G P M M S G
SET G P S T X M o d e
12
Ù Ú
Push
SET G P S S e n t e n c e ( R M C )
Ù Ú
13
When RMC sentence usage is set to ON.
9
[MAIN DIAL]
1
]
2
3
4
5
6
7
8
[MAIN DIAL]
9
10
S C P
11
12
S E T
13
Push
14
G P S
Select 15
16
O N
17
18
19
20
21
122
