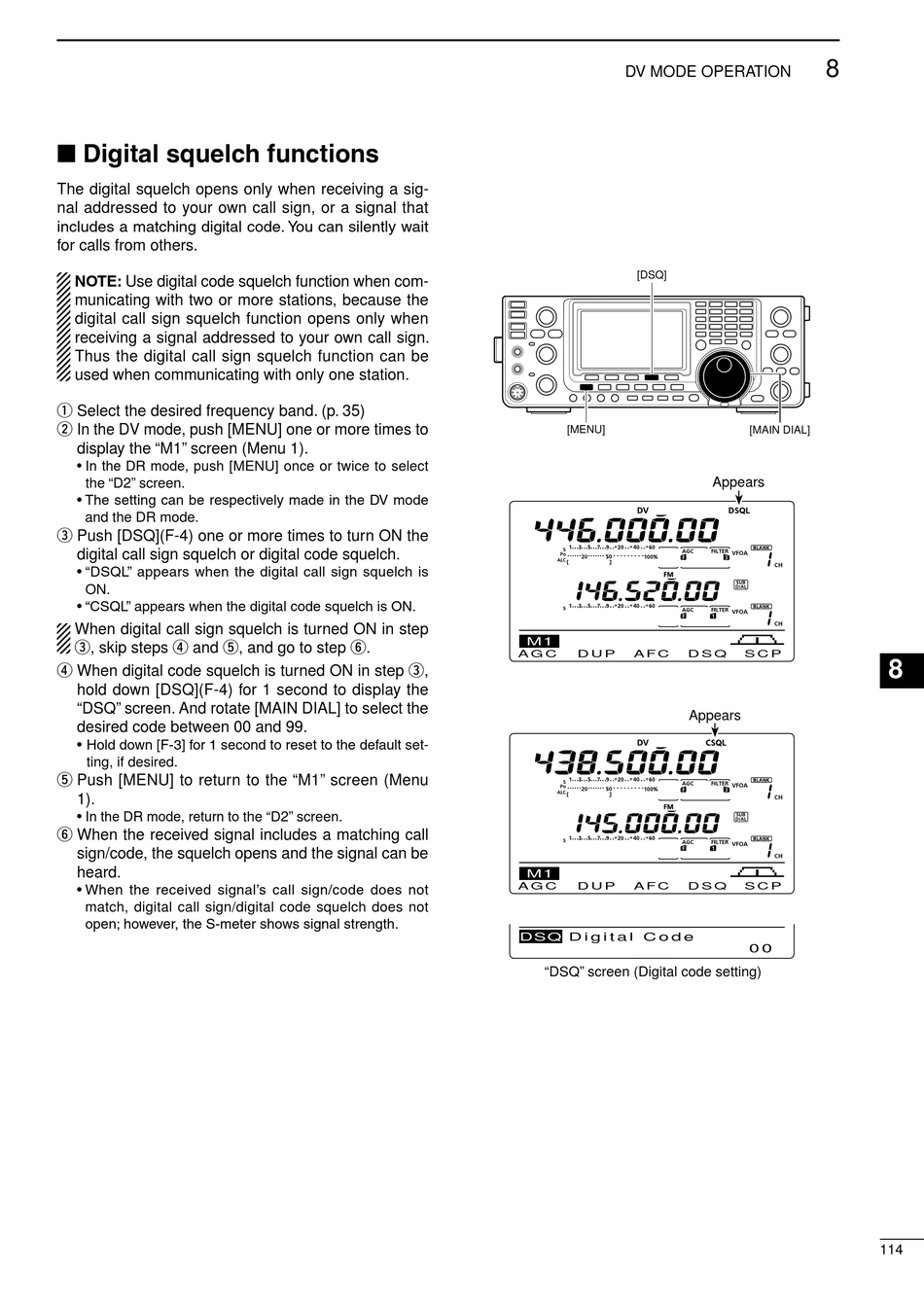

■ Digital squelch functions

The digital squelch opens only when receiving a sig-
nal addressed to your own call sign, or a signal that
includes a matching digital code. You can silently wait
for calls from others.
NOTE: Use digital code squelch function when com-
municating with two or more stations, because the
digital call sign squelch function opens only when
receiving a signal addressed to your own call sign.
Thus the digital call sign squelch function can be
used when communicating with only one station.
q Select the desired frequency band. (p. 35)
w In the DV mode, push [MENU] one or more times to
display the "M1" screen (Menu 1).
• In the DR mode, push [MENU] once or twice to select
the "D2" screen.
• The setting can be respectively made in the DV mode
and the DR mode.
e Push [DSQ](F-4) one or more times to turn ON the
digital call sign squelch or digital code squelch.
• "DSQL" appears when the digital call sign squelch is
ON.
• "CSQL" appears when the digital code squelch is ON.
When digital call sign squelch is turned ON in step
e, skip steps r and t, and go to step y.
r When digital code squelch is turned ON in step e,
hold down [DSQ](F-4) for 1 second to display the
"DSQ" screen. And rotate [MAIN DIAL] to select the
desired code between 00 and 99.
• Hold down [F-3] for 1 second to reset to the default set-
ting, if desired.
t Push [MENU] to return to the "M1" screen (Menu
1).
• In the DR mode, return to the "D2" screen.
y When the received signal includes a matching call
sign/code, the squelch opens and the signal can be
heard.
• When the received signal's call sign/code does not
match, digital call sign/digital code squelch does not
open; however, the S-meter shows signal strength.
DV MODE OPERATION
[DSQ]
[MENU]
M1
A G C D U P A F C D S Q
Appears
M1
A G C D U P A F C D S Q
DSQ D i g i t a l C o d e
"DSQ" screen (Digital code setting)
8
[MAIN DIAL]
Appears
S C P
S C P
0 0
