4
RECEIVE AND TRANSMIT

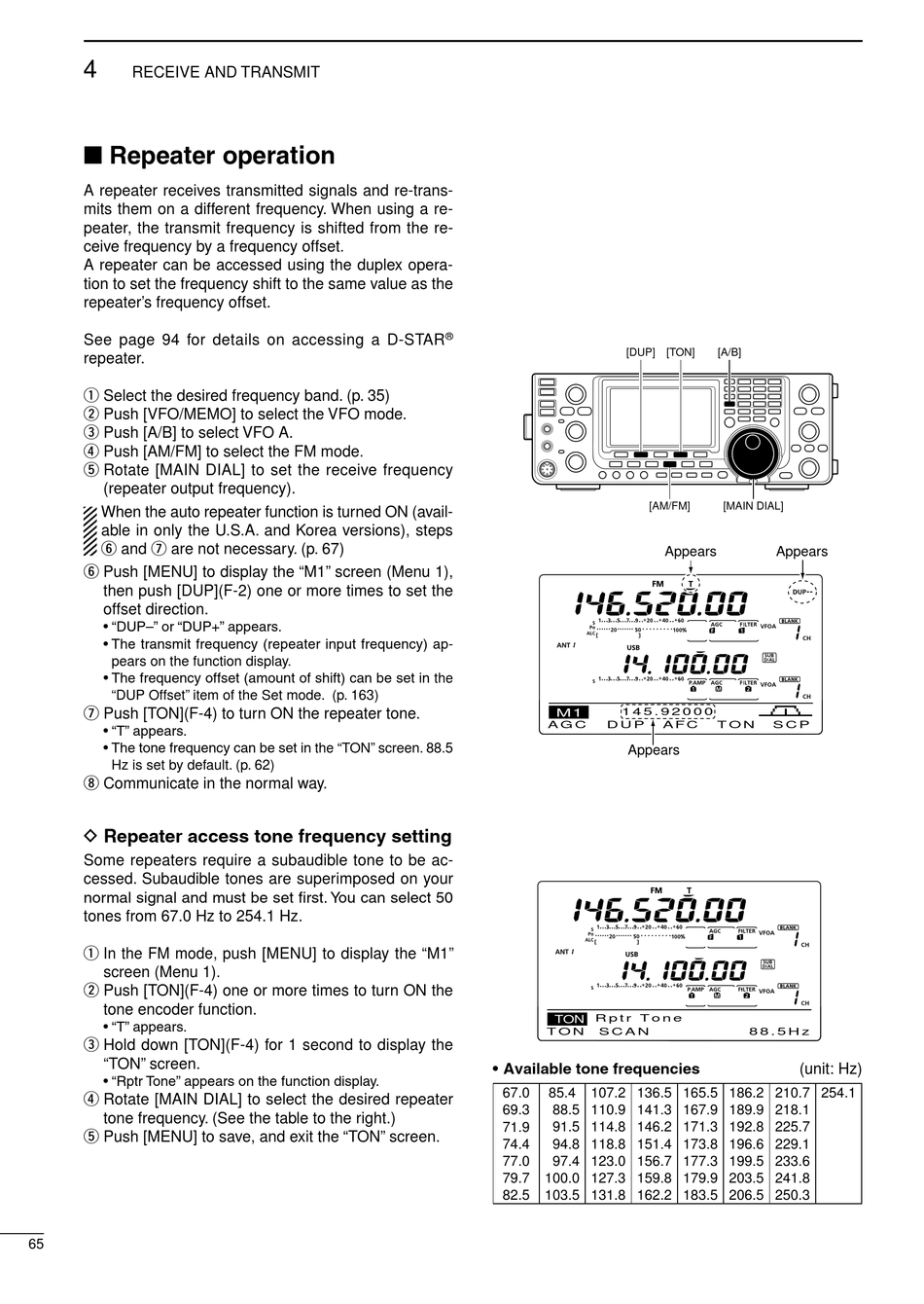

■ Repeater operation

A repeater receives transmitted signals and re-trans-
mits them on a different frequency. When using a re-
peater, the transmit frequency is shifted from the re-
ceive frequency by a frequency offset.
A repeater can be accessed using the duplex opera-
tion to set the frequency shift to the same value as the
repeater's frequency offset.
See page 94 for details on accessing a D-STAR
repeater.
q Select the desired frequency band. (p. 35)
w Push [VFO/MEMO] to select the VFO mode.
e Push [A/B] to select VFO A.
r Push [AM/FM] to select the FM mode.
t Rotate [MAIN DIAL] to set the receive frequency
(repeater output frequency).
When the auto repeater function is turned ON (avail-
able in only the U.S.A. and Korea versions), steps
y and u are not necessary. (p. 67)
y Push [MENU] to display the "M1" screen (Menu 1),
then push [DUP](F-2) one or more times to set the
offset direction.
• "DUP–" or "DUP+" appears.
• The transmit frequency (repeater input frequency) ap-
pears on the function display.
• The frequency offset (amount of shift) can be set in the
"DUP Offset" item of the Set mode. (p. 163)
u Push [TON](F-4) to turn ON the repeater tone.
• "T" appears.
• The tone frequency can be set in the "TON" screen. 88.5
Hz is set by default. (p. 62)
i Communicate in the normal way.

D Repeater access tone frequency setting

Some repeaters require a subaudible tone to be ac-
cessed. Subaudible tones are superimposed on your
normal signal and must be set first. You can select 50
tones from 67.0 Hz to 254.1 Hz.
q In the FM mode, push [MENU] to display the "M1"
screen (Menu 1).
w Push [TON](F-4) one or more times to turn ON the
tone encoder function.
• "T" appears.
e Hold down [TON](F-4) for 1 second to display the
"TON" screen.
• "Rptr Tone" appears on the function display.
r Rotate [MAIN DIAL] to select the desired repeater
tone frequency. (See the table to the right.)
t Push [MENU] to save, and exit the "TON" screen.
65
®
M1
A G C D U P
TON R p t r T o n e
T O N S C A N
• Available tone frequencies
67.0 85.4 107.2
69.3 088.5 110.9
71.9 091.5 114.8
74.4 094.8 118.8
77.0 097.4 123.0
79.7 100.0 127.3
82.5 103.5 131.8
[DUP] [TON] [A/B]
[AM/FM] [MAIN DIAL]
Appears Appears
1 4 5 . 9 2 0 0 0
A F C T O N S C P
Appears
8 8 . 5 H z
210.7
136.5 165.5 186.2
141.3 167.9 189.9 218.1
146.2 171.3 192.8 225.7
151.4 173.8 196.6 229.1
156.7 177.3 199.5 233.6
159.8 179.9 203.5 241.8
162.2 183.5 206.5 250.3
(unit: Hz)
254.1
