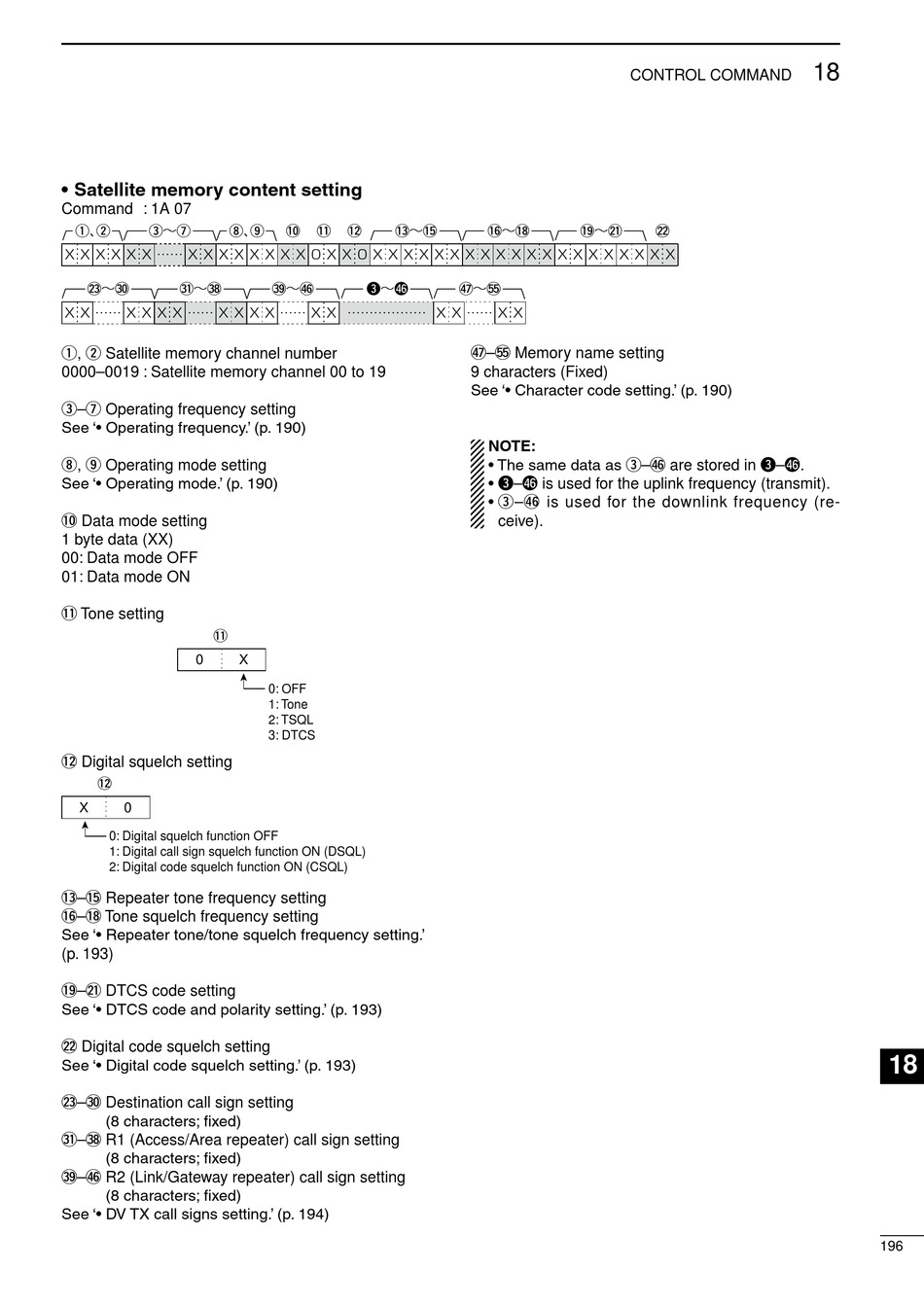

• Satellite memory content setting
Command : 1A 07
q w e u i o
@3 #0 #1 #8
q, w Satellite memory channel number
0000–0019 : Satellite memory channel 00 to 19
e–u Operating frequency setting
See '• Operating frequency.' (p. 190)
i, o Operating mode setting
See '• Operating mode.' (p. 190)
!0 Data mode setting
1 byte data (XX)
00: Data mode OFF
01: Data mode ON
!1 Tone setting
!1
0
!2 Digital squelch setting
!2
X 0
0: Digital squelch function OFF
1: Digital call sign squelch function ON (DSQL)
2: Digital code squelch function ON (CSQL)
!3 – !5 Repeater tone frequency setting
!6 – !8 Tone squelch frequency setting
See '• Repeater tone/tone squelch frequency setting.'
(p. 193)
!9 – @1 DTCS code setting
See '• DTCS code and polarity setting.' (p. 193)
@2 Digital code squelch setting
See '• Digital code squelch setting.' (p. 193)
@3 – #0 Destination call sign setting
(8 characters; fixed)
#1 – #8 R1 (Access/Area repeater) call sign setting
(8 characters; fixed)
#9 – $6 R2 (Link/Gateway repeater) call sign setting
(8 characters; fixed)
See '• DV TX call signs setting.' (p. 194)
! 0 !1 !2 !3 !5
#9 $6 e $6
X
0: OFF
1: Tone
2: TSQL
3: DTCS
CONTROL COMMAND
!6 !8 !9 @1
$7 %5
$7 – %5 Memory name setting
9 characters (Fixed)
See '• Character code setting.' (p. 190)
NOTE:
• The same data as e–$6 are stored in e–$6 .
• e–$6 is used for the uplink frequency (transmit).
• e–$ 6 is used for the downlink frequency (re-
ceive).
