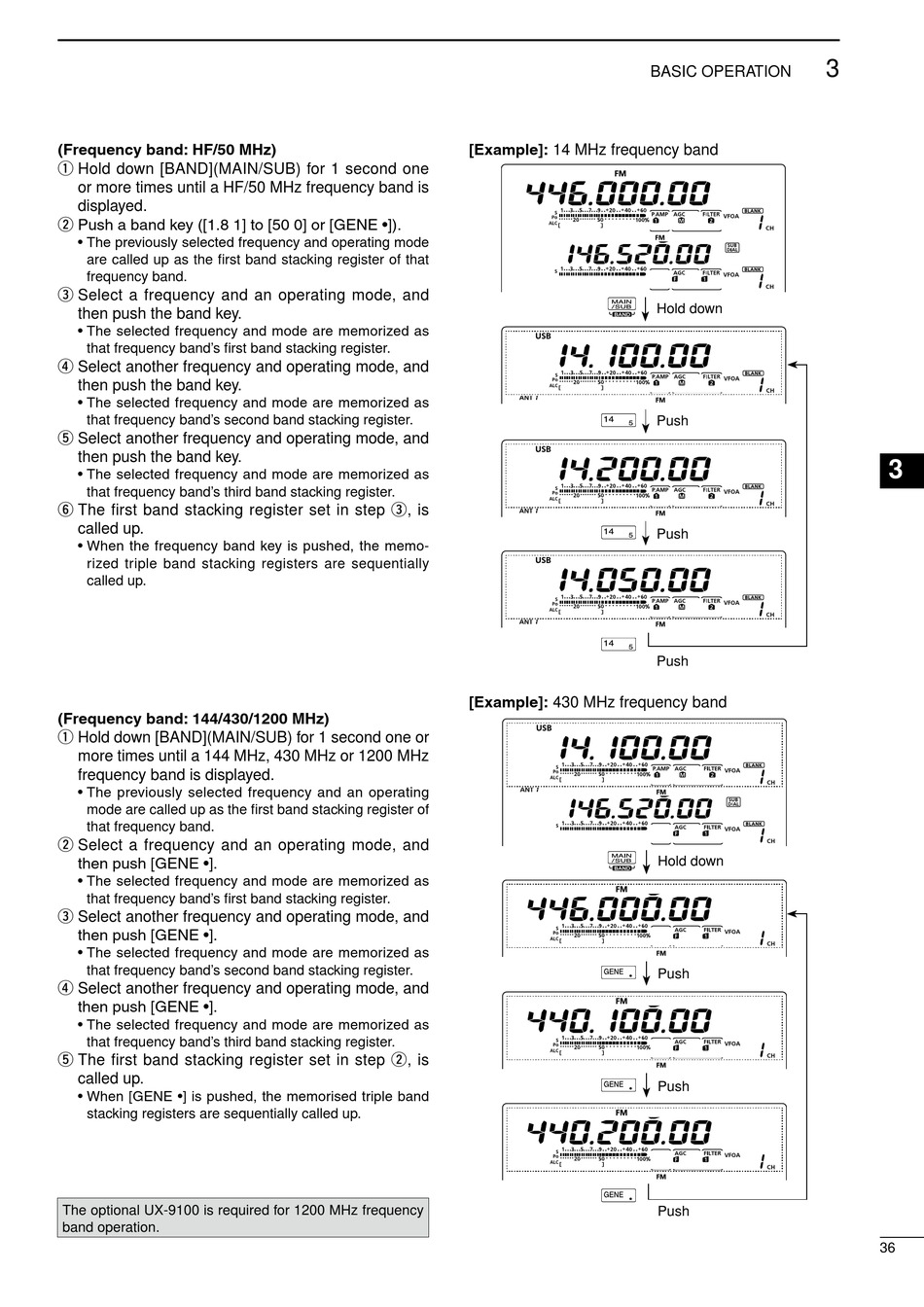

(Frequency band: HF/50 MHz)
q Hold down [BAND](MAIN/SUB) for 1 second one
or more times until a HF/50 MHz frequency band is
displayed.
w Push a band key ([1.8 1] to [50 0] or [GENE •]).
• The previously selected frequency and operating mode
are called up as the first band stacking register of that
frequency band.
e Select a frequency and an operating mode, and
then push the band key.
• The selected frequency and mode are memorized as
that frequency band's first band stacking register.
r Select another frequency and operating mode, and
then push the band key.
• The selected frequency and mode are memorized as
that frequency band's second band stacking register.
t Select another frequency and operating mode, and
then push the band key.
• The selected frequency and mode are memorized as
that frequency band's third band stacking register.
y The first band stacking register set in step e, is
called up.
• When the frequency band key is pushed, the memo-
rized triple band stacking registers are sequentially
called up.
(Frequency band: 144/430/1200 MHz)
q Hold down [BAND](MAIN/SUB) for 1 second one or
more times until a 144 MHz, 430 MHz or 1200 MHz
frequency band is displayed.
• The previously selected frequency and an operating
mode are called up as the first band stacking register of
that frequency band.
w Select a frequency and an operating mode, and
then push [GENE •].
• The selected frequency and mode are memorized as
that frequency band's first band stacking register.
e Select another frequency and operating mode, and
then push [GENE •].
• The selected frequency and mode are memorized as
that frequency band's second band stacking register.
r Select another frequency and operating mode, and
then push [GENE •].
• The selected frequency and mode are memorized as
that frequency band's third band stacking register.
t The first band stacking register set in step w, is
called up.
• When [GENE •] is pushed, the memorised triple band
stacking registers are sequentially called up.
The optional UX-9100 is required for 1200 MHz frequency
band operation.
[Example]: 14 MHz frequency band
M1
A G C D U P C O M P T B W
M1
A G C D U P C O M P T B W
M1
A G C D U P C O M P T B W
M1
[Example]: 430 MHz frequency band
A G C D U P C O M P T B W
M1
A G C D U P C O M P T B W
M1
A G C D U P C O M P T B W
M1
A G C D U P C O M P T B W
M1
A G C D U P C O M P T B W
BASIC OPERATION
Hold down
S C P
Push
S C P
Push
S C P
Push
S C P
Hold down
S C P
Push
S C P
Push
S C P
Push
S C P
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
36
