D Making A Cq Call Or A Call To An Individual Station Through Gateway Repeaters (Gateway Call) - Icom i9100 Instruction Manual

8
DV MODE OPERATION
■ Repeater operation in the VFO (Continued)

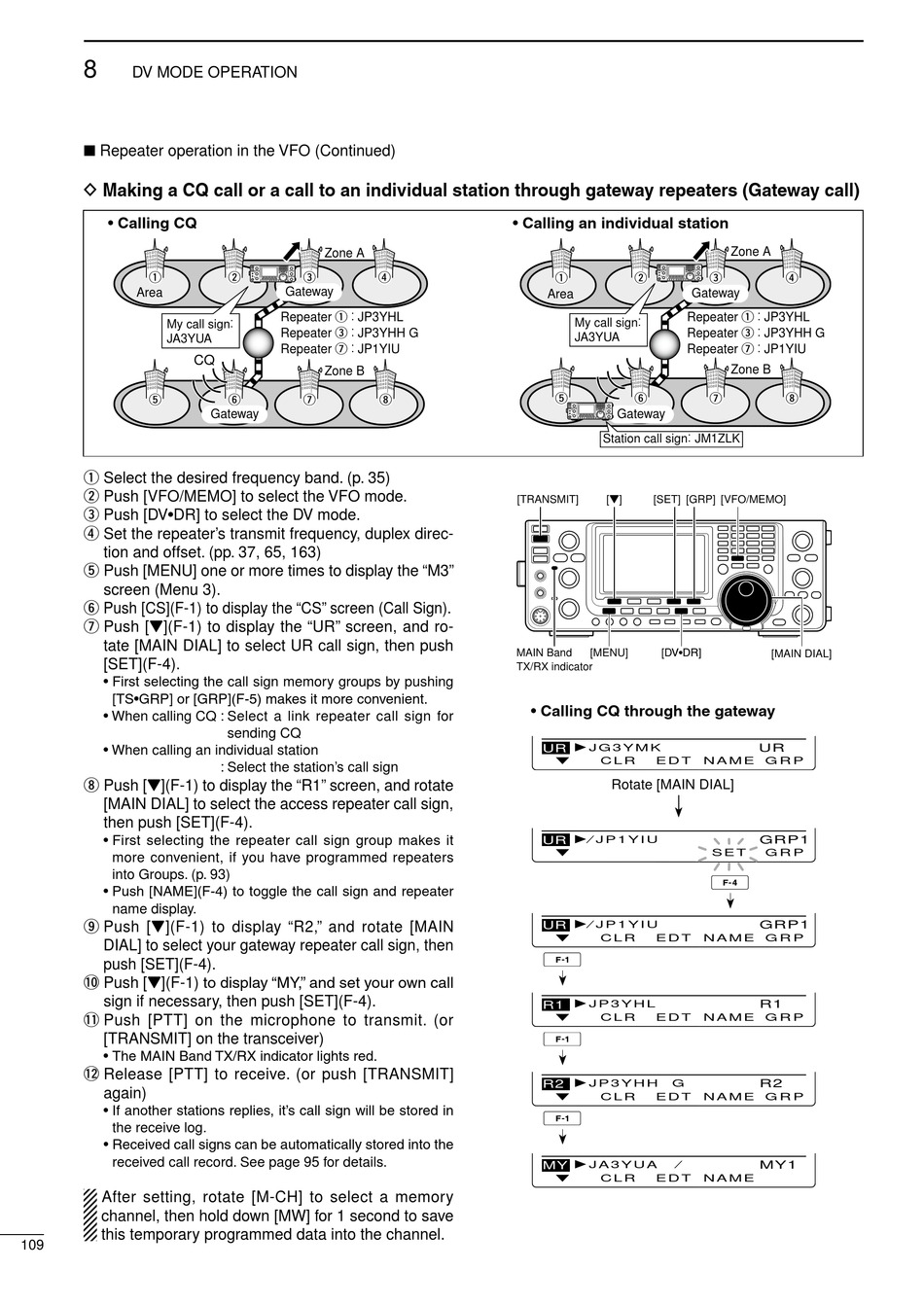

D Making a CQ call or a call to an individual station through gateway repeaters (Gateway call)

• Calling CQ
q
Area
My call sign
JA3YUA
CQ
t
q Select the desired frequency band. (p. 35)
w Push [VFO/MEMO] to select the VFO mode.
e Push [DV•DR] to select the DV mode.
r Set the repeater's transmit frequency, duplex direc-
tion and offset. (pp. 37, 65, 163)
t Push [MENU] one or more times to display the "M3"
screen (Menu 3).
y Push [CS](F-1) to display the "CS" screen (Call Sign).
u Push [Z](F-1) to display the "UR" screen, and ro-
tate [MAIN DIAL] to select UR call sign, then push
[SET](F-4).
• First selecting the call sign memory groups by pushing
[TS•GRP] or [GRP](F-5) makes it more convenient.
• When calling CQ : Select a link repeater call sign for
• When calling an individual station
i Push [Z](F-1) to display the "R1" screen, and rotate
[MAIN DIAL] to select the access repeater call sign,
then push [SET](F-4).
• First selecting the repeater call sign group makes it
more convenient, if you have programmed repeaters
into Groups. (p. 93)
• Push [NAME](F-4) to toggle the call sign and repeater
name display.
o Push [Z](F-1) to display "R2," and rotate [MAIN
DIAL] to select your gateway repeater call sign, then
push [SET](F-4).
!0 Push [Z](F-1) to display "MY," and set your own call
sign if necessary, then push [SET](F-4).
!1 Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
• The MAIN Band TX/RX indicator lights red.
!2 Release [PTT] to receive. (or push [TRANSMIT]
again)
• If another stations replies, it's call sign will be stored in
the receive log.
• Received call signs can be automatically stored into the
received call record. See page 95 for details.
After setting, rotate [M-CH] to select a memory
channel, then hold down [MW] for 1 second to save
this temporary programmed data into the channel.
109
Zone A
w e r
Gateway
Repeater q JP3YHL
Repeater e JP3YHH G
Repeater u JP1YIU
Zone B
y u i
Gateway
sending CQ
: Select the station's call sign
• Calling an individual station
q w
Area
Repeater q JP3YHL
My call sign
Repeater e JP3YHH G
JA3YUA
Repeater u JP1YIU
t y
Gateway
Station call sign JM1ZLK
[TRANSMIT] [Z] [SET] [GRP]
MAIN Band [MENU] [DV•DR]
TX/RX indicator
• Calling CQ through the gateway
≈
UR J G 3 Y M K
Ú
C L R E D T
Rotate [MAIN DIAL]
≈
UR ⁄ J P 1 Y I U
Ú
≈
UR ⁄ J P 1 Y I U
Ú
C L R E D T
≈
J P 3 Y H L
R1
Ú
C L R E D T
≈
R2 J P 3 Y H H G
Ú
C L R E D T
≈
MY J A 3 Y U A ⁄
Ú
C L R E D T
Zone A
e r
Gateway
Zone B
u i
[VFO/MEMO]
[MAIN DIAL]
UR
N A M E G R P
GRP1
S E T G R P
GRP1
N A M E G R P
R1
N A M E G R P
R2
N A M E G R P
MY1
N A M E
