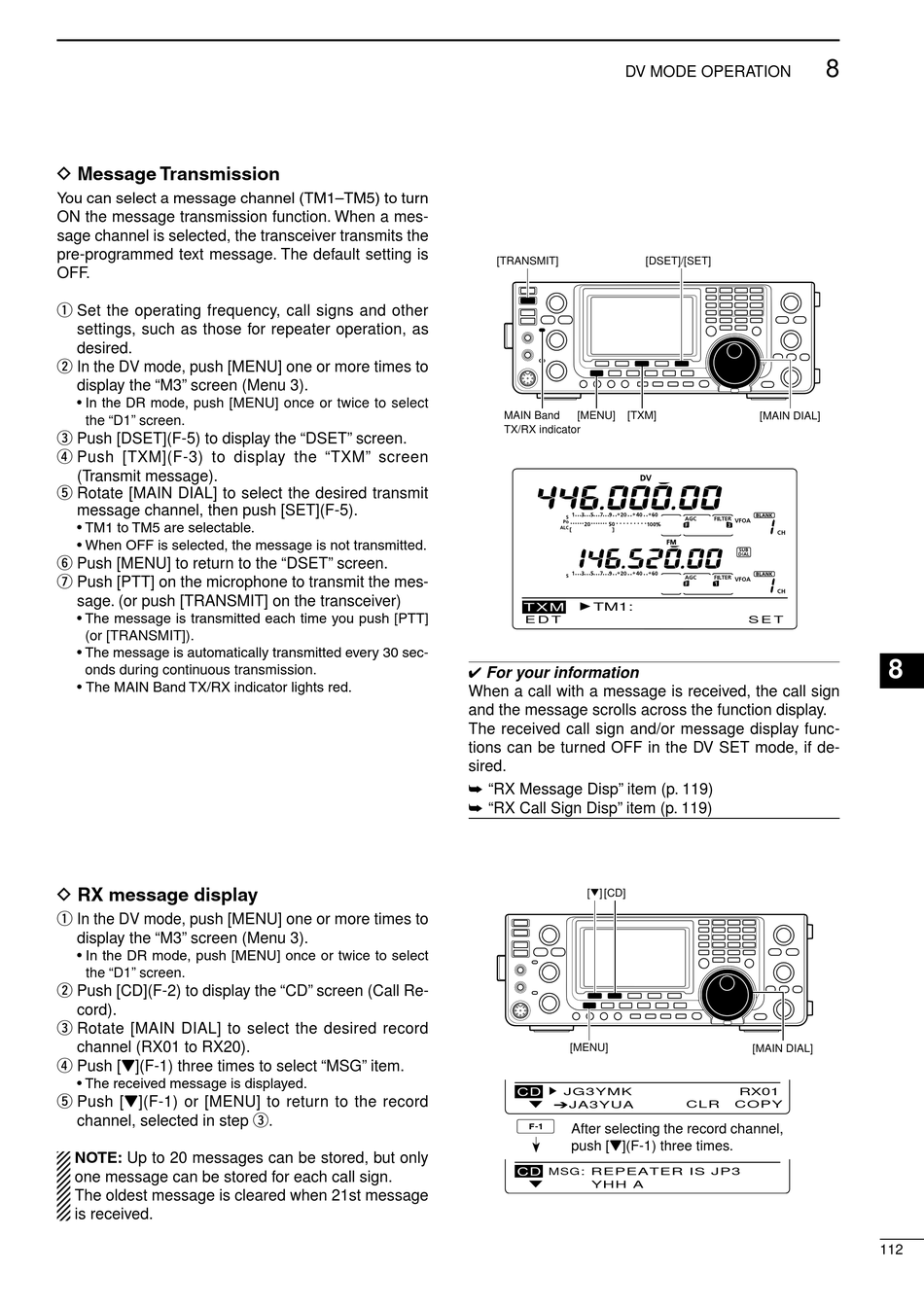

D Message Transmission

You can select a message channel (TM1–TM5) to turn
ON the message transmission function. When a mes-
sage channel is selected, the transceiver transmits the
pre-programmed text message. The default setting is
OFF.
q Set the operating frequency, call signs and other
settings, such as those for repeater operation, as
desired.
w In the DV mode, push [MENU] one or more times to
display the "M3" screen (Menu 3).
• In the DR mode, push [MENU] once or twice to select
the "D1" screen.
e Push [DSET](F-5) to display the "DSET" screen.
r Push [TXM](F-3) to display the "TXM" screen
(Transmit message).
t Rotate [MAIN DIAL] to select the desired transmit
message channel, then push [SET](F-5).
• TM1 to TM5 are selectable.
• When OFF is selected, the message is not transmitted.
y Push [MENU] to return to the "DSET" screen.
u Push [PTT] on the microphone to transmit the mes-
sage. (or push [TRANSMIT] on the transceiver)
• The message is transmitted each time you push [PTT]
(or [TRANSMIT]).
• The message is automatically transmitted every 30 sec-
onds during continuous transmission.
• The MAIN Band TX/RX indicator lights red.

D RX message display

q In the DV mode, push [MENU] one or more times to
display the "M3" screen (Menu 3).
• In the DR mode, push [MENU] once or twice to select
the "D1" screen.
w Push [CD](F-2) to display the "CD" screen (Call Re-
cord).
e Rotate [MAIN DIAL] to select the desired record
channel (RX01 to RX20).
r Push [Z](F-1) three times to select "MSG" item.
• The received message is displayed.
t Push [Z](F-1) or [MENU] to return to the record
channel, selected in step e.
NOTE: Up to 20 messages can be stored, but only
one message can be stored for each call sign.
The oldest message is cleared when 21st message
is received.
DV MODE OPERATION
[TRANSMIT]
MAIN Band [MENU] [TXM]
TX/RX indicator
≈ TM1:
TXM
E D T
✔ For your information
When a call with a message is received, the call sign
and the message scrolls across the function display.
The received call sign and/or message display func-
tions can be turned OFF in the DV SET mode, if de-
sired.
➥ "RX Message Disp" item (p. 119)
➥ "RX Call Sign Disp" item (p. 119)
[√] [CD]
[MENU]
≈
CD JG3YMK
Ú
�JA3YUA
After selecting the record channel,
push [Z](F-1) three times.
CD
MSG: REPEATER IS JP3
Ú YHH A
[DSET]/[SET]
[MAIN DIAL]
S E T
[MAIN DIAL]
RX01
CLR COPY
